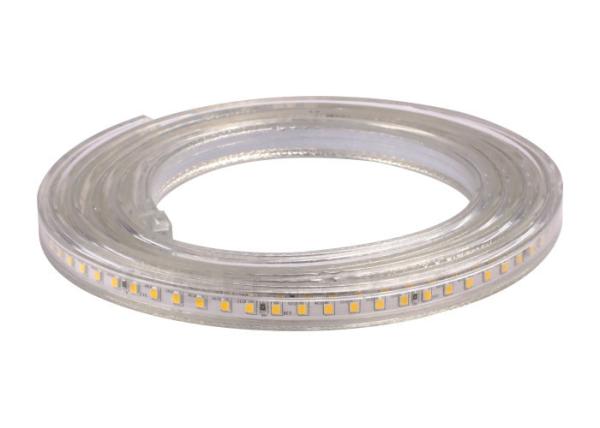

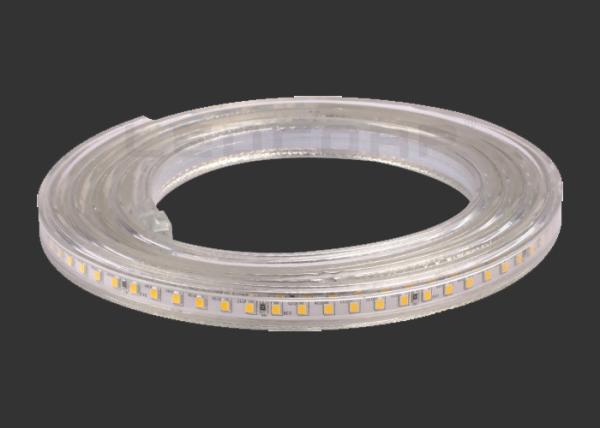

10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V
10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V
10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V
10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V
10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V
10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V
Specifications
Brand Name :
LEDCORP
Model Number :
LC120-HV2835-WW/NW/W-110/220
Certification :
ISO9001 , CE , RoHS
Place of Origin :
China
MOQ :
50meters/roll
Price :
Negotiation
Payment Terms :
T/T , PayPal
Supply Ability :
100,000meters per month
Delivery Time :
15-20 working days
Packaging Details :
100meters / carton
LED :
2835
Qty/m :
120 LEDs/m
Voltage :
AC110V or 220V
Packing :
50 m/roll
IP :
IP67
Power :
10 w/m
CCT :
2700-6500K
Efficacy :
80 lm/w
Dimension :
16mm*50000mm*8mm
Warranty :
2 yrs
Description

10w/m Ceiling High Voltage LED Strip Warm White 10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V 2835 120 HV.pdf

10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V

Product features:

  • 2835SMD light source
  • High voltage version, directly connect to 110v/220v
  • Waterproof PVC tube, IP67
  • High brightness, low decay, stable quality, long lifespan
  • Easy to use and install, 50m/reel
  • Non-dimmable, 4 BINS, 2700-6500K


Application area:

  • Using for AC110-220V place
  • Architectural Lighting as museum
  • Backlight Lighting as Hotel wall
  • House Lighting as ceiling
  • Path Lighting
  • Decoration Lighting


Dimension:
10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V
IP rating: IP67


Technical details:

Details

Item

Unit

Specification

Physical data

LED type

SMD

2835SMD

LED Qty /meter

LED/m

120

Dimensions

mm

16mm*50000mm*8mm

Type of protection

IP

IP67

Working temperature

°C

0-40°C

Electrical data

Power

W/m

10W / m

Voltage

VDC

110VAC / 220VAC

Optical data

Luminous flux

LM/m

1231LM / m

Beam angle

degrees

120

Light color

　

Warm white / Natural white / Cool White / Red / Yellow / Green / Blue

Color BINs

　

5 BINs

Color temperature

K

WW : 2700 - 3000K

NW : 4000 - 4500K

CW : 6000 - 6500K

Color rendering index

CRI

70-90

Order reference

HS code

94054090

Part. no

LC120-HV2835-W-110/220

LC120-HV2835-WW-110/220

LC120-HV2835-NW-110/220



Installation details:


10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V


10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V


10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V

Items

HS code

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight

Volume(cbm)
HV Led Strip

94054090

Shipping carton box

100m

2reels

500*350*250

12kg

0.04375

10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V

10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V

10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V

10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V

10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V

10W / M 2835 120LED Ceiling High Voltage Flexible LED Strip Warm White CE RoHS 110 / 220V
