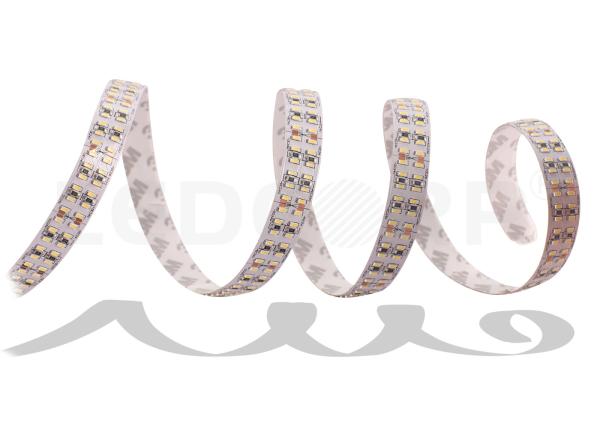

43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K
43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K
43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K
43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K
Specifications
Brand Name :
LEDCORP
Model Number :
LC432-N3014-W/WW
Certification :
UL/CE/RoHS
Place of Origin :
China
MOQ :
250M
Price :
Welcome to your inquiry
Payment Terms :
T/T , PayPal
Supply Ability :
500,000 m/month
Delivery Time :
15 working days
Packaging Details :
50reels/ctn,12kg/ctn
Led :
3014
Qty/m :
432 LEDs/m
Voltage :
24V
Qty/roll :
2160 LEDs/roll
CRI :
85
Packing :
5 m/roll
IP :
IP20
Power :
43.2 w/m
CCT :
2700-6500K
PCB :
15mm
Angle :
120°
Efficacy :
90-100 lm/w
SDCM :
4 SDCM
Lumen :
4600 lm/m
Work Temp :
-30°C - 60°C
Lifespan :
>35000 hrs
Warranty :
3-5 yrs
Weight :
0.2 kg/roll
Shipping :
50 rolls/ctn
Description

43.2W 432LEDs Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K

43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K

Product advantages:

  • Color Consistency, only one bin
  • High Efficacy, 90-165lm/w
  • High CRI, 80+,90+,95+
  • Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
  • Long Lifespan: >35000 Hrs
  • No dark and uninterrupted Led strip
  • High brightness, low decay, low power consumption, LM-80 Tested
  • Be able to give soul space, and increase the dynamics of the space, making the space brighter.

Features:

  • High lumen 3014SMD 432LED
  • 15mm PCB width
  • 2160led / reel , 5meters / reel
  • Warm white: 2400K / 2700K - 3000K,
  • Natural white: 4000K - 4500K,
  • White: 5000K - 5500K / 6000K - 6500K
  • Different connectors to connect the cut parts
  • 3M adhersive tape
  • OEM / ODM are welcomed.
  • Available in IP20

Technical details:

Details

Item

Unit

Specification

Physical data

LED type

SMD

3014SMD

LED Qty /meter

LED/m

432

Dimensions

mm

15*1.2*5000 (W*H*L)

Type of protection

IP

IP20

Working temperature

°C

-30°C - 60°C

Electrical data

Power

W/m

43.2W

Voltage

VDC

24V

Optical data

Luminous flux

Lm/m

4666lm

Beam angle

degrees

120

Light color

　

Warm white/Natural white/White

Color BINs

　

1 BIN

Color temperature

K

Warm white:2400 / 2700-3000

Natural white :4000-4500

White: 5000-5500 / 6000-6500

Color rendering index

CRI

80-90

Order reference

HS code

94054090

Part. no

LC432-N3014-w/ww/nw-IP20-24

Dimension:

43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K

Installation:

43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K

Packing details:

Items

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight(kg)

Volume(cbm)

IP20 Strips

One Pack

5m

1reel

300*300*12

0.22

0.00054

Shipping carton box

250m

50reel

500*350*250

12

0.04375

43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K

43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K

43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K

43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K

43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K

43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K

43.2W 3014SMD 432LEDs/m Super Brightness High Lumen LED Strip Lights Ceiling 2400K - 6500K
