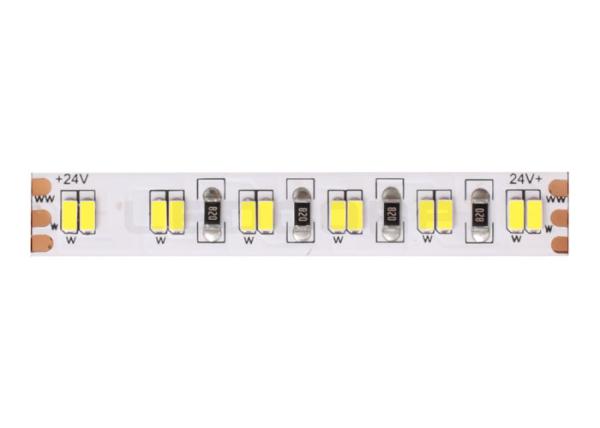

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable
3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable
3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable
3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable
3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable
3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable
3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable
3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable
Specifications
Brand Name :
LEDCORP
Model Number :
LC240-N3014-W/WW
Certification :
ISO9001:2008, ISO9001:2015
Place of Origin :
CHINA
MOQ :
250M/50Rolls
Price :
Welcome to your inquiry
Payment Terms :
T/T , PayPal
Supply Ability :
500,000 m/month
Delivery Time :
15 days
Packaging Details :
100reels,12kg/ctn
Led :
3014
Qty/m :
240 LEDs/m
Voltage :
24V
Qty/roll :
1200 LEDs/roll
IP :
IP20
Packing :
5 m/roll
CRI :
85
Power :
24 w/m
Temp :
-30°C - 60°C
Life :
>35000hours
Warranty :
3-5 yrs
Efficacy :
90-100 lm/w
Lumen :
2500 lm/m
PCB :
10mm
Description

High Density Natural White LED Strip Dimmable 240 LEDs/m 3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable 3014 240.pdf

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable

Product advantages:

  • Color Consistency, only one bin
  • High Efficacy, 90-165lm/w
  • High CRI, 80+,90+,95+
  • Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
  • Long Lifespan: >35000 Hrs
  • No dark and uninterrupted Led strip
  • High brightness, low decay, low power consumption, LM-80 Tested
  • Be able to give soul space, and increase the dynamics of the space, making the space brighter.

Features:

  • High lumen 3014SMD 240LED
  • 1200led / reel , 5meters / reel
  • Heatsink needed when installation
  • Warm white: 2400K / 2700K - 3000K,
  • Natural white: 4000K - 4500K,
  • White: 5000K - 5500K / 6000K - 6500K
  • Different connectors to connect the cut parts
  • 3M adhersive tape
  • Available in IP20

Application area:

  • House ceiling lighting
  • Hotel room lighting
  • Indoor curve lighting
  • Restaurant decorative lighting
  • coffee shop, bar decorative lighting

Technical details:

Details

Item

Unit

Specification

Physical data

LED type

SMD

3014SMD

LED Qty /meter

LED/m

240

Dimensions

mm

8*1.2*5000 (W*H*L)

Type of protection

IP

IP20

Working temperature

°C

-30°C - 60°C

Electrical data

Power

W/m

24W

Voltage

VDC

24V

Optical data

Luminous flux

Lm/m

2592lm

Beam angle

degrees

120

Light color

　

Warm white/Natural white/White

Color BINs

　

1 BIN

Color temperature

K

Warm white:2400 / 2700-3000

Natural white :4000-4500

White: 5000-5500 / 6000-6500

Color rendering index

CRI

80-90

Order reference

HS code

94054090

Part. no

LC240-N3014-w/ww/nw-IP20-24

Dimension:

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable

Installation:

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable

Packing details:

Items

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight(kg)

Volume(cbm)

IP20 Strips

One Pack

5m

1reel

150*150*12

0.11

0.00027

arton box

500m

100reel

500*350*250

12

0.04375

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable

3014 240LEDs/m Flexible High Lumen Natural White LED Strip High density Ultra Bright Dimmable
