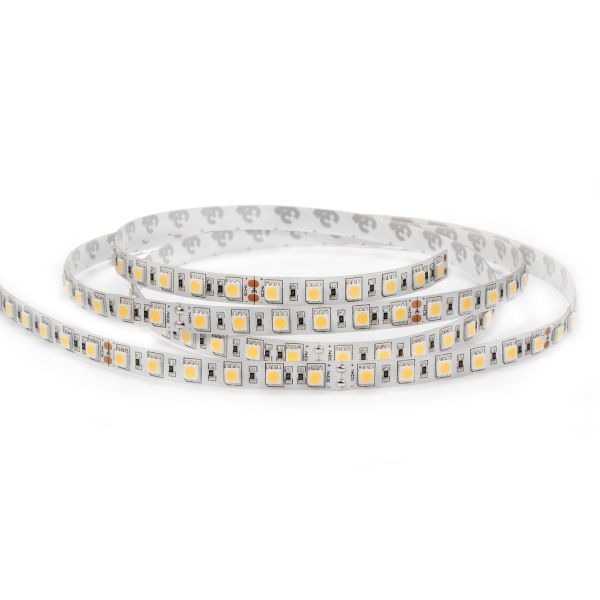

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm
5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm
5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm
5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm
5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm
5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm
5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm
5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm
5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm
5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm
Specifications
Brand Name :
LEDCORP
Model Number :
LC72-N5050-W/W
Certification :
ISO9001, UL/CE/RoHS
Place of Origin :
CHINA
MOQ :
250M
Price :
Welcome to your inquiry
Payment Terms :
PayPal, T/T
Supply Ability :
500,000m/month
Delivery Time :
15 days
Packaging Details :
250m/ctn, 10kg/ctn
Led :
5050
Qty :
72 LEDs/m
Voltage :
24V
Power :
15.6 w/m
CRI :
85
Packing :
5 m/roll
Angle :
120°
Efficacy :
90 lm/w
IP :
IP20-68
Lumen :
1500 lm/m
SDCM :
4 SDCM
Lifespan :
>35000 hrs
Carton :
50x35x25cm
Warranty :
3-5 yrs
Description

Ultra Bright 72 Dimmable LED Strip SMD 5050 25Lm - 27Lm 5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm 5050 72.pdf

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

Product advantages:

  • Color Consistency, only one bin
  • High Efficacy, 90-165lm/w
  • High CRI, 80+,90+,95+
  • Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
  • Long Lifespan: >35000 Hrs
  • No dark and uninterrupted Led strip
  • High brightness, low decay, low power consumption, LM-80 Tested
  • Be able to give soul space, and increase the dynamics of the space, making the space brighter.

Application area:

  • Backlight or edge lighting for signage
  • Cove lighting
  • Architectural lights for canopy, archway
  • DIY lights for home use
  • Path and contour marking
  • Decorative lights for house, event, show, exhibition, hotel

Technical details:

Details

Item

Unit

Specification

Physical data

LED type

SMD

5050SMD

LED Qty /meter

LED/m

72

Dimensions

mm

10*2*5000 (W*H*L)

Type of protection

IP

IP20/IP65/IP66/IP67/IP68

Working temperature

°C

0-40°C

Electrical data

Power

w/m

15.6

Voltage

VDC

12 (24 option)

Optical data

Luminous flux

lm/m

1490

Beam angle

degrees

120

Light color

　

Warm white/Natural white/White

Color BINs

　

1 BIN

Color temperature

K

Warm white:2400/2700-3000

Natural white:4000-4500

White: 5000-5500/6000-6500

Color rendering index

CRI

80-90

Order reference

HS code

94054090

Part. no

LC72-N5050-w/ww/nw-IP20-12/24

LC72-W5050-w/ww/nw-IP65-12/24

LC72-W5050-w/ww/nw-IP68-12/24

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

Dimension:

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

Installation:

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

Packing details:

Part No.

HS code

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight

Volume(cbm)

LC72-N5050-XX-IP20

94054090

One Pack

5m

1reel

150*150*12

0.11kg

0.00027

Shipping carton box

500m

100reel

500*350*250

12kg

0.04375

LC72-W5050-XX-IP65/IP68

94054090

One Pack

5m

1reel

220*220*13

0.22kg

0.00063

Shipping carton box

250m

50reel

500*350*250

12kg

0.04375

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm

5050 72led/m 15.6w/m Ultra Bright Dimmable LED Strip SMD 12 Volt Epistar Chip 25Lm - 30Lm
