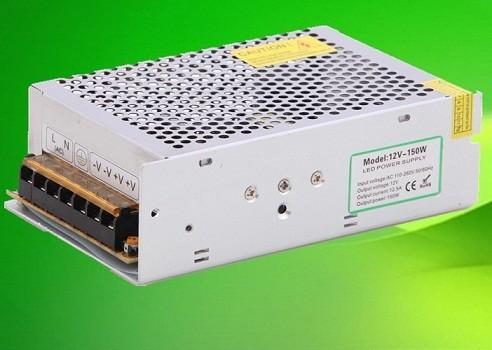

150 Watt Low Voltage LED Driver Not Waterproof Cooling By Free Air Convection
150 Watt Low Voltage LED Driver Not Waterproof Cooling By Free Air Convection
150 Watt Low Voltage LED Driver Not Waterproof Cooling By Free Air Convection
150 Watt Low Voltage LED Driver Not Waterproof Cooling By Free Air Convection
Specifications
Brand Name :
LEDCORP
Model Number :
LC-150-12/24
Certification :
ISO9001 , CE , RoHS
Place of Origin :
China
MOQ :
30pcs
Price :
Negotiation
Payment Terms :
T/T , PayPal
Supply Ability :
10,000pcs per month
Delivery Time :
15 working days
Packaging Details :
Folding Boxes Inside Shipping Carton
Input Voltage :
AC100-277V
Output Voltage :
12V / 24V
Power :
150W
IP Rating :
IP20
Certificate :
CE / RoHS
Warranty :
2 years
Description

150 Watt Low Voltage LED Driver Not Waterproof Cooling By Free Air Convection

Product Features:

  • IP20 design for indoor installations
  • Protections: short circuit, overload, over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • Suitable for LED lighting
  • Product through CE, RoHS certification
  • 2 years warranty

Application:

  • Outdoor or indoor Led driver for signage, channel letter, decoration
  • Outdoor or indoor led driver for led modules, led strips, led panel lights, with constant voltage requirement.


Technical specification:

Part. No

LC-150-12

LC-150-24

OUTPUT

DC voltage

12V

24V

Related current

12.5A

6.25A

Current range

0-12.5A

0-6.25A

Rated power

150W

150W

Ripple&Noise(max)

150mA

200mA

Voltage tolerance

±0.1%

±0.1%

INPUT

Setup time

200ms/220VAC

Hold up time

20mS/220VAC

Voltage range

170-250VAc

Frequency range

50-60HZ

Power factor

PF>0.55/220VAC

Efficiency

81%

81%

AC current

Inrush current

PROTECTION

Short circuit

Recovers automatically after condition is removed

Overload

Overload protected@115-140% above rating

Over temperature

Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp

—30℃to＋50℃

Working Humidity

20-90% RH non-condensing

Storage Temp

—40℃to＋80℃, 10-99%RH

SAFETY & EMC

Safety standards

CE Mark (LVD), IP20

Withstand voltage

I/P-O/P:1.5KVAC I/P-GND:1.5VAC

EMC test standards

EN55015:2006; EN61547:1995+A1:2000; EN61000-3-2:2006;EN61000-3-3:1995+a2; EN61347-1:2001;EN61347-2-13:2006


Dimension: 160*98*50mm

Weight: 0.4kg

Packing details:

Product Name

HS code

Packaging unit

Pieces per box

Dimensions LxWxH

Gross weight

Volume

Power supply

94054090

Shipping carton box

30pcs

45*20*26cm

　15.3KG

0.0234cbm


150 Watt Low Voltage LED Driver Not Waterproof Cooling By Free Air Convection
