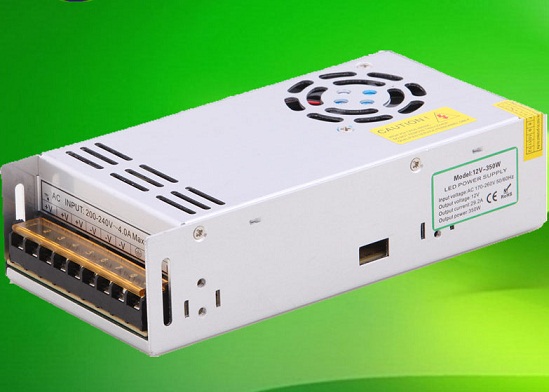

350 Watt Outdoor LED Driver Power Supply 100% Full Load Burn Test CE ROHS
350 Watt Outdoor LED Driver Power Supply 100% Full Load Burn Test CE ROHS
350 Watt Outdoor LED Driver Power Supply 100% Full Load Burn Test CE ROHS
350 Watt Outdoor LED Driver Power Supply 100% Full Load Burn Test CE ROHS
Specifications
Brand Name :
LEDCORP
Model Number :
LC-350-12/24
Certification :
ISO9001 , CE , RoHS
Place of Origin :
China
MOQ :
30pcs
Price :
Negotiation
Payment Terms :
T/T , PayPal
Supply Ability :
10,000pcs per month
Delivery Time :
15 working days
Packaging Details :
Folding Boxes Inside Shipping Carton
Input Voltage :
AC100-277V
Output Voltage :
12V / 24V
Power :
350W
IP Rating :
IP65
Certificate :
CE / RoHS
Warranty :
2 years
Description

350 Watt Outdoor LED Driver Power Supply 100% Full Load Burn Test CE ROHS

Product Features:

  • IP67 design for indoor or outdoor installations
  • Protections: short circuit, overload, over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • Suitable for LED lighting
  • Product through CE, RoHS certification
  • 2 years warranty

Application:

  • Outdoor or indoor Led driver for signage, channel letter, decoration
  • Outdoor or indoor led driver for led modules, led strips, led panel lights, with constant voltage requirement.

Dimension: 200*100*50mm

Technical specification:

Part. No

LCP-350-12

LCP-350-24

OUTPUT

DC voltage

12V

24V

Related current

29A

14.5A

Current range

0-29A

0-14.5A

Rated power

350W

350W

Ripple&Noise(max)

150mA

200mA

Voltage tolerance

±2%

±1.4%

INPUT

Setup time

200ms/220VAC

Hold up time

20ms/220VAC

Voltage range

170-250VAc

Frequency range

50-60HZ

Power factor

PF>0.55/220VAC

Efficiency

80%

80%

AC current

Inrush current

PROTECTION

Short circuit

Recovers automatically after condition is removed

Overload

Overload protected@115-140% above rating

Over temperature

Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp

—30℃to＋50℃

Working Humidity

20-90% RH non-condensing

Storage Temp

—40℃to＋80℃, 10-99%RH

SAFETY & EMC

Safety standards

CE Mark (LVD), IP67

Withstand voltage

I/P-O/P:1.5KVAC I/P-GND:1.5VAC

EMC test standards

EN55015:2006; EN61547:1995+A1:2000; EN61000-3-2:2006;EN61000-3-3:1995+a2; EN61347-1:2001;EN61347-2-13:2006


Packing details:

Product Name

HS code

Packaging unit

Pieces per box

Dimensions LxWxH

Gross weight

Volume

Power supply

94054090

Shipping carton box

30pcs

45*20*26cm

　21KG

0.0234cbm


350 Watt Outdoor LED Driver Power Supply 100% Full Load Burn Test CE ROHS
