Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS
Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS
Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS
Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS
Specifications
Brand Name :
LEDCORP
Model Number :
LCP-250-12/24
Certification :
ISO9001 , CE , RoHS
Place of Origin :
China
MOQ :
30pcs
Price :
Negotiation
Payment Terms :
T/T , PayPal
Supply Ability :
10,000pcs per month
Delivery Time :
15 working days
Packaging Details :
Folding Boxes Inside Shipping Carton
Input Voltage :
AC100-277V
Output Voltage :
12V / 24V
Power :
250W
IP Rating :
IP65
Certificate :
CE / RoHS
Warranty :
2 years
Description


Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS

Product Features:

  • IP67 design for indoor or outdoor installations
  • Protections: short circuit, overload, over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • Suitable for LED lighting
  • Product through CE, RoHS certification
  • 2 years warranty

Application:

  • Outdoor or indoor Led driver for signage, channel letter, decoration
  • Outdoor or indoor led driver for led modules, led strips, led panel lights, with constant voltage requirement.

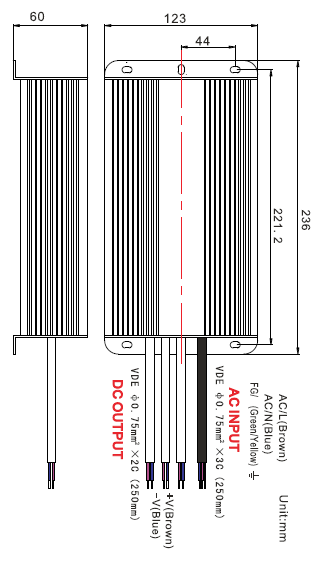

Dimension:

Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS

Technical specification:

Part. No

LCP-250-12

LCP-250-24

OUTPUT

DC voltage

12V

24V

Related current

21A

10A

Current range

0-21A

0-10A

Rated power

250W

250W

Ripple&Noise(max)

150mA

150mA

Voltage tolerance

±2%

±1%

INPUT

Setup time

80ms/220VAC

Hold up time

60mS/220VAC

Voltage range

176-264VAc

Frequency range

50-60HZ

Power factor

PF>0.55/220VAC

Efficiency

82%

84%

AC current

2.2A/220VAC

Inrush current

Cold start 50A/220VAC

PROTECTION

Short circuit

Recovers automatically after condition is removed

Overload

Overload protected@115-140% above rating

Over temperature

Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp

—30℃to＋50℃

Working Humidity

20-90% RH non-condensing

Storage Temp

—40℃to＋80℃, 10-99%RH

SAFETY & EMC

Safety standards

CE Mark (LVD), IP67

Withstand voltage

I/P-O/P:1.5KVAC I/P-GND:1.5VAC

EMC test standards

EN55015:2006; EN61547:1995+A1:2000; EN61000-3-2:2006;EN61000-3-3:1995+a2; EN61347-1:2001;EN61347-2-13:2006


Packing details:

Product Name

HS code

Size(mm)Weight

Packaging unit

Pieces per box

Dimensions LxWxH

Gross weight

Volume

Power supply

94054090

236*123*602.6kg/pcs

Shipping carton box

5pcs

39*26*18cm

　13KG

0.0234cbm
