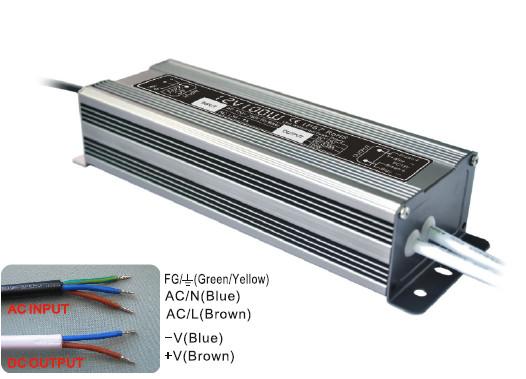

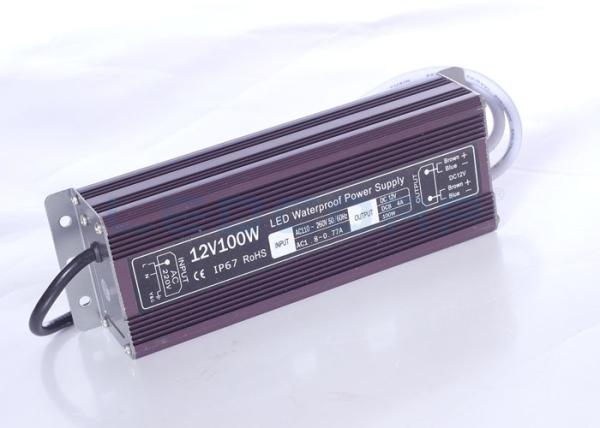

12V Outdoor LED Driver Controller 100W Cooling By Free Air Convection 2 Year Warranty
12V Outdoor LED Driver Controller 100W Cooling By Free Air Convection 2 Year Warranty
12V Outdoor LED Driver Controller 100W Cooling By Free Air Convection 2 Year Warranty
12V Outdoor LED Driver Controller 100W Cooling By Free Air Convection 2 Year Warranty
Specifications
Brand Name :
LEDCORP
Model Number :
LCP-100-12/24
Certification :
ISO9001 , CE , RoHS
Place of Origin :
China
MOQ :
30pcs
Price :
Negotiation
Payment Terms :
T/T , PayPal
Supply Ability :
10,000pcs per month
Delivery Time :
15 working days
Packaging Details :
Folding Boxes Inside Shipping Carton
Input Voltage :
AC100-277V
Output Voltage :
12V / 24V
Power :
100W
IP Rating :
IP65
Certificate :
CE / RoHS
Warranty :
2 years
Description


12V Outdoor LED Driver Controller 100W Cooling By Free Air Convection 2 Year Warranty

Product Features:

  • IP67 design for indoor or outdoor installations
  • Protections: short circuit, overload, over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • Suitable for LED lighting
  • Product through CE, RoHS certification
  • 2 years warranty

Application:

  • Outdoor or indoor Led driver for signage, channel letter, decoration
  • Outdoor or indoor led driver for led modules, led strips, led panel lights, with constant voltage requirement.

Dimension:
12V Outdoor LED Driver Controller 100W Cooling By Free Air Convection 2 Year Warranty

Technical specification:

Part. No

LCP-100-12

LCP-100-24

OUTPUT

DC voltage

12V

24V

Related current

8.3A

4.17A

Current range

0-8.3A

0-4.17A

Rated power

100W

100W

Ripple&Noise(max)

150mA

150mA

Voltage tolerance

±2%

±1%

INPUT

Setup time

80ms/220VAC

Hold up time

60mS/220VAC

Voltage range

170-250VAc

Frequency range

50-60HZ

Power factor

PF>0.55/220VAC

Efficiency

82%

84%

AC current

1A/220VAC

Inrush current

Cold start 50A/220VAC

PROTECTION

Short circuit

Recovers automatically after condition is removed

Overload

Overload protected@115-140% above rating

Over temperature

Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp

—30℃to＋50℃

Working Humidity

20-90% RH non-condensing

Storage Temp

—40℃to＋80℃, 10-99%RH

SAFETY & EMC

Safety standards

CE Mark (LVD), IP67

Withstand voltage

I/P-O/P:1.5KVAC I/P-GND:1.5VAC

EMC test standards

EN55015:2006; EN61547:1995+A1:2000; EN61000-3-2:2006;EN61000-3-3:1995+a2; EN61347-1:2001;EN61347-2-13:2006


Packing details:

Product Name

HS code

 Size(mm) Weight

Packaging unit

Pieces per box

Dimensions LxWxH

Gross weight

Volume

Power supply

94054090

 210*68.5*44 1kg/pcs

Shipping carton box

15pcs

34*27*28cm

　15KG

0.0234cbm
