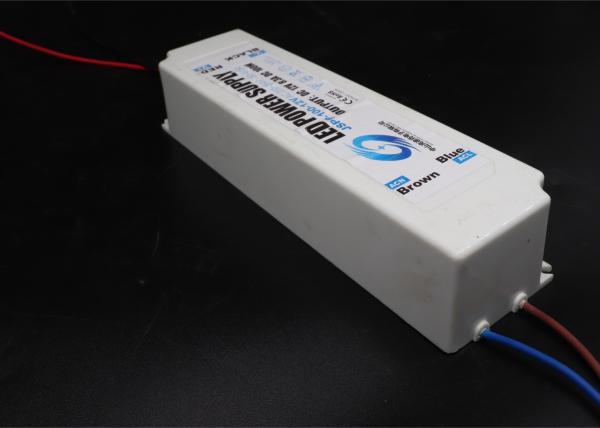

Plastic Housing 12V 100W IP67 Waterproof SMPS For LED Lighting
Plastic Housing 12V 100W IP67 Waterproof SMPS For LED Lighting
Plastic Housing 12V 100W IP67 Waterproof SMPS For LED Lighting
Plastic Housing 12V 100W IP67 Waterproof SMPS For LED Lighting
Plastic Housing 12V 100W IP67 Waterproof SMPS For LED Lighting
Plastic Housing 12V 100W IP67 Waterproof SMPS For LED Lighting
Plastic Housing 12V 100W IP67 Waterproof SMPS For LED Lighting
Plastic Housing 12V 100W IP67 Waterproof SMPS For LED Lighting
Specifications
Model Number :
JSPP-100-12
Brand Name :
J-STAR
Certification :
CE ROHS SAA CB BIS
Place of Origin :
CHINA
MOQ :
10
Price :
Welcome your inquiry
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000
Delivery Time :
10-15DAYS
Packaging Details :
white inner box and carton
Working temperature :
-30-55°C
Input :
110/220
Ouput datasheet :
12V 8.33A
Power :
100W
Product name :
Waterproof SMPS
Description

Plastic Housing 12V 100W IP67 Waterproof SMPS For LED Lighting
LED SMPS 12V 100W IP67 Plastic Housing High Quality Working Under Low Temperature Environment

Product Description

JSPP-100 Series LED waterproof power supply
Features:
· Constant voltage design
· Universal AC input / Full range
· Withstand 300VAC surge input for 5 seconds
· Protections: Short circuit / Overload / Over voltage
· Cooling by free air convection
· Fully encapsulated with IP67 level(Note.8)
· Fully isolated plastic case
· Class II power unit, no FG
· Class 2 power unit
· Pass LPS
· Suitable for LED lighting and moving sign applications(Note.7)
· 100% full load burn-in test
· Low cost, high reliability
· 3 years warranty

ModelJSPP-100-12
Input Voltage100-240V
Output Voltage12±0.5V
Output Current0-8.34A
Output Power100W
Power typeConstant Voltage
MaterialPlastic
SeriesVD
Strong pointHigh reliability and Low price
MOQ1Pcs

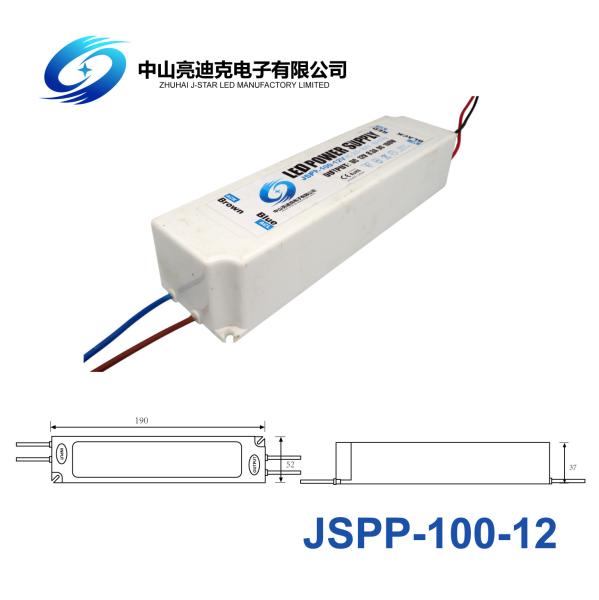

Size192*52*37MM
Weight0.63Kg
Protected functionsShort circuit/Over voltage/Over temperature
Warranty3 years warranty
MarketEurope, Asia, Australia etc.
StandardCE&ROHS,IP67


Plastic Housing 12V 100W IP67 Waterproof SMPS For LED LightingPlastic Housing 12V 100W IP67 Waterproof SMPS For LED LightingPlastic Housing 12V 100W IP67 Waterproof SMPS For LED Lighting
NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 ℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
8. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.
