DC48V IP67 150W/Sqm Transparent LED Display P25*25 Transparent LED Video Wall
DC48V IP67 150W/Sqm Transparent LED Display P25*25 Transparent LED Video Wall
Specifications
Brand Name :
Minvol
Model Number :
MH-D-SMD-P25*25E
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200sqm/day
Delivery Time :
15-25 Days
Packaging Details :
Carton
LED brand :
Epistar/ Cree
Power :
150W/sqm
Color :
RGB
Pixel pitch :
P25*25
Brightness(CD/㎡) :
＞4800CD/sqm
Weight :
11kg/sqm
Description

High Brightness Transparent LED Screen Display, Glass Window LED Transparente Video Wall

Product description

LED transparent screen adopts aluminum alloy light bar splicing, each group of light adopts signal isolation technology, even single bar has been broken, still can not influence cach other. The unit screen has high heat dissipation efficiency, no need air conditioning, and can be installed in the front or rear of building facade, it makes the project application more simple, more flexible, more efficient. lt is the best choice of indoor and outdoor display screen.
Product parameters
Product Name: P25*25 LED louver screen
Item No: MH-D-SMD-P25*25E
Light Source Brand: Epistar
Light Source Model: SMD3535
Size/Unit: 1200mm(L)*400mm(H)
Viewing Angle: H120°/V120°
Power(W)/㎡: 450W/sqm
Average Power/㎡(W): 150W/sqm
Voltage: DC36-48V
Pixel Pitch(mm): 25mm(H)*25mm(V)
Light Bar Size(mm): 10.5mm*1200mm
Resolution: 16pixel*48pixel/Unit
LED quantity/㎡(PCS): 1600pixel/sqm
Brightness(CD/㎡): ＞4800CD/sqm
Grey Scale: 65536
Refresh Rate(Hz): ＞5000Hz
Transparency: ＞58%
Weight: 11kg/sqm
Protection Grade: IP67
Operation Temperature: -20℃~50℃
Life Time: ≥50000 hours
Related Cert.: CE RoHS FCC
Product pictures:
DC48V IP67 150W/Sqm Transparent LED Display P25*25 Transparent LED Video Wall
DC48V IP67 150W/Sqm Transparent LED Display P25*25 Transparent LED Video Wall
DC48V IP67 150W/Sqm Transparent LED Display P25*25 Transparent LED Video Wall
Module size:
DC48V IP67 150W/Sqm Transparent LED Display P25*25 Transparent LED Video Wall

Product Installation Schematic

DC48V IP67 150W/Sqm Transparent LED Display P25*25 Transparent LED Video Wall

Control Diagram

DC48V IP67 150W/Sqm Transparent LED Display P25*25 Transparent LED Video Wall

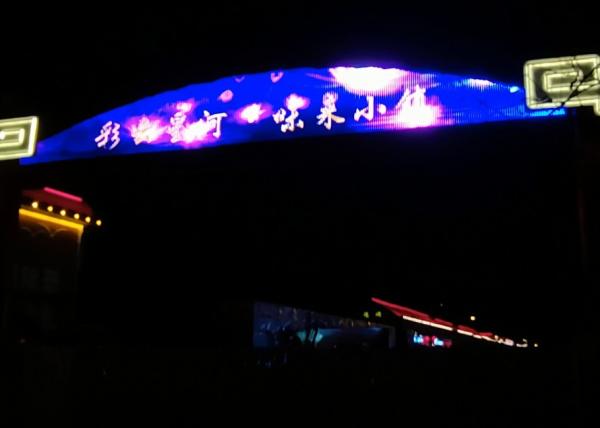

Projects pictures
DC48V IP67 150W/Sqm Transparent LED Display P25*25 Transparent LED Video Wall
DC48V IP67 150W/Sqm Transparent LED Display P25*25 Transparent LED Video Wall
