11520Hz 7800cd/Sqm Outdoor LED Mesh Screen 260W/m2 58mm Thickness
11520Hz 7800cd/Sqm Outdoor LED Mesh Screen 260W/m2 58mm Thickness
Specifications
Brand Name :
Minvol
Model Number :
MH-M-SMD-P16S-512*1024
Certification :
CE/RoHS/FCC
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100sqm/day
Delivery Time :
15-25 Days
Packaging Details :
Carton
LED brand :
Epistar
Brightness :
7800cd/sqm
LED Color :
RGB
LED quantity :
3906pixel/sqm
Module size :
1024mm(L)*512mm(H)
Pixels :
15.625mm
Description

55% Transparency 58mm Thickness IP67 P16 Outdoor LED Mesh Screen

Product Features:
Weather resistant
Robust cabinets
Low weight
High image resolution
Fast frame rate / refresh rate
Perfect color contrast even in direct sunlight
Optimum brightness
Directed light - no stray light

Product parameters

Product Name: P16 LED grille screen
Item No: MH-M-SMD-P16S-512*1024
Light Source Brand: Epistar
Light Source Model: SMD3535
Size/Unit: 1024mm(L)*512mm(H)
Average Power/㎡(W): 260W/m2
Voltage: AC85~265V
Light Bar Size(mm): 7.3mm*1024mm
LED quantity/㎡(PCS): 3906pixel/㎡
Brightness(CD/㎡): ＞7800CD/㎡
Grey Scale: 65536
Refresh Rate(Hz): ＞11520Hz
Transparency: ＞55%
Weight: 15kg/sqm
Related Cert.: CE RoHS FCC

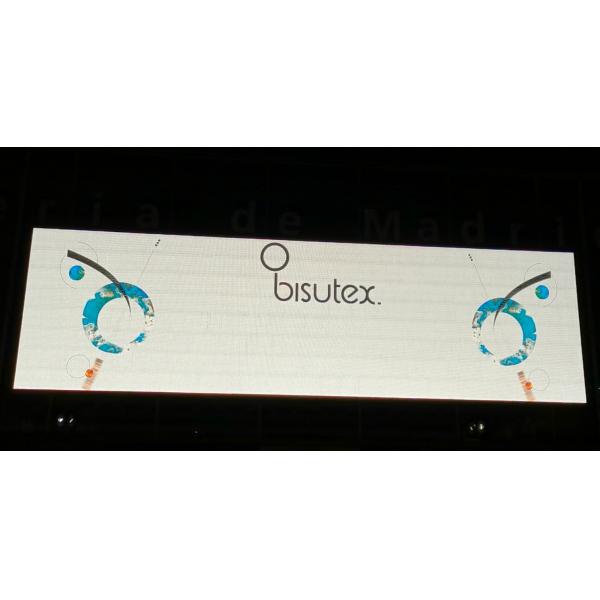

Product pictures

11520Hz 7800cd/Sqm Outdoor LED Mesh Screen 260W/m2 58mm Thickness
11520Hz 7800cd/Sqm Outdoor LED Mesh Screen 260W/m2 58mm Thickness


Product Installation Schematic
11520Hz 7800cd/Sqm Outdoor LED Mesh Screen 260W/m2 58mm Thickness


11520Hz 7800cd/Sqm Outdoor LED Mesh Screen 260W/m2 58mm Thickness

11520Hz 7800cd/Sqm Outdoor LED Mesh Screen 260W/m2 58mm Thickness
