P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen
P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen
P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen
P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen
P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen
P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen
Specifications
Brand Name :
Minvol
Model Number :
MH-G-2R2G2B-P31.25*50E
Certification :
CE/RoHS/FCC
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200sqm/day
Delivery Time :
negotiable
Packaging Details :
negotiable
LED brand :
Epistar
Input voltage :
DC36-48V
Brightness :
7200CD/sqm
LED Color :
RGB
Screen dimension :
Customized
Tube chip color :
Full Color
Usage :
Outdoor
Display function :
Video
Color :
Full-color
Viewing angle :
140 degree /140 degree
Description

Product description

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

LED transparent screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED louver screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display.

Product parameters

Product Name: P31.25*50 LED transparent media screen
Item No: MH-G-2R2G2B-P31.25*50E
Light Source Brand: Epistar
Light Source Model: 346 2R2G2B DIP
Size/Unit: 1500mm(L)*800mm(H)
Viewing Angle: H120°/V60°
Power(W)/㎡: 210W/sqm
Average Power/㎡(W): 70W/sqm
Voltage: DC36-48V
Pixel Pitch(mm): 31.25mm(H)*50mm(V)
Light Bar Size(mm): 14mm*1500mm
Resolution: 16pixel*48pixel/Unit
LED quantity/㎡(PCS): 640 pixel/sqm
Brightness(CD/㎡): ＞5760CD/sqm
Grey Scale: 65536
Refresh Rate(Hz): ＞5000Hz
Transparency: ＞72%
Weight: 9kg/sqm
Protection Grade: IP67
Operation Temperature: -20℃~50℃
Life Time: ≥50000 hours
Related Cert.: CE RoHS FCC

Product pictures

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

Module size

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

Product Installation Schematic

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

Control Diagram

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

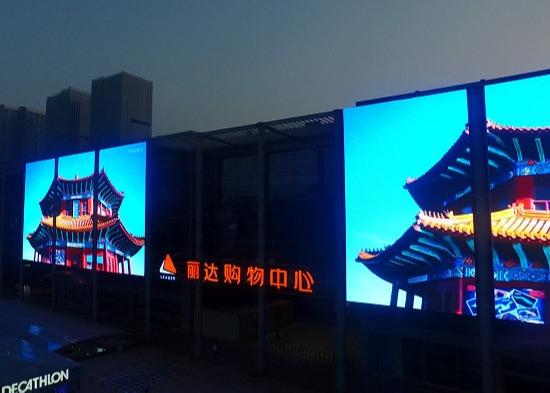

Projects pictures

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen

P31.25 Outdoor Indoor Glass Transparent LED Film Display Transparent Panels Led Strip Display Screen
