Specifications
Model Number :
CL-60-12VP-C and CL-60-24VP-C
Certification :
UL, CE, ROHS
Place of Origin :
Guangdong China
MOQ :
400pcs
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Delivery Time :
10~25days
Packaging Details :
0.38KGs/piece; 50pcs/carton/20KGS.
Item Type :
Switching Power Supply
Input :
110- 240VAC
Output :
12V or 24VDC, 0~5A
Power :
max 60W output
DC connector(Optional) :
5.5*2.1*10mm (optional)
DC connector :
2 pins Female connector (optional)
Efficiency :
>80% at Rated Voltage
Warranty :
2 Years
Description

CL-60-12VP-C and CL-60-24VP-C 110 - 240V LED Power Supply with 5.5mm DC jack or 2-pin Connector for 3 distribution connector

Features and Benefits:
● Non-PFC, complete protections
● Economical medium to high power models with safety certificate;
● Protections: Short circuit/Overload/over voltage/over temperature
● Cooling by free air convection
● 100% full load burn-in test
● LED indicator for power on
● Low cost, high reliability
● Suitable for dry locations only
● Output Voltage 12V and 24VDC are usually used for linear strip or linear bar;
● Pass CE,ROHS,UL
● 2 Years warranty

Technical Specification:

Oupt power range 24V2.5A (also have those models for selection)

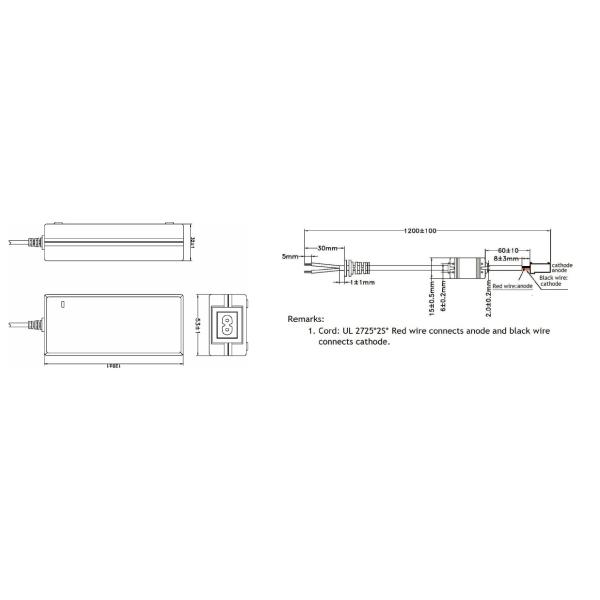

size (Small Size)114*50*30mm,(Big Size)120*53*32mm
Input Rated Voltage 100Vac~240Vac,50Hz~60Hz
Input Current less than 0.5A
Input Inrush Current less than 50A
Efficiency 80%(MIN)at Rated Voltage
DC Output Voltage 24V± 5% (option)
DC Output Current 2.5A (option)
DC Output Power 60W (optional)
Leakage Current less than 5mA
Standby power less than 0.5w
DC connector 5.5*2.1*10mm (optional)
DC cable 1.5m 2464UL 22AWG cable (optional)
Ripple and Noise Less than 120Mv at full road with 20MHz bandwidth
Turn On Delay Time less than 3S (AC:110V and full load)
Certificates CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS1
Safety UL, cUL, FCC, GS, CE, EMC, CB , ErP, SAA, C-tick, MEPSKC,SPE,NOM
Dielectric Voltage A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection

output voltage protection (150%-180% rated output current),

output current protection (150%-180% rated output current),

short current protection
Operating Temperature -10°C - +45°C
Storage Temperature -20°C - +40°C
Safety Standard EN60950-1 UL60950-1 ESD (EN61000 3-3)
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B, ISO 9001: 2008
