24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof
24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof
24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof
24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof
24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof
24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof
Specifications
Brand Name :
MEAN WELL
Model Number :
HLG-185H-24
Certification :
CE, ROHS, UL, FCC, TUV, CB
Place of Origin :
China
MOQ :
1piece
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
3~12 Days
Packaging Details :
1.3Kg; 12pcs/16Kg/0.74CUFT
Item Type :
IP67 CV Waterproof Power Supply
Output :
24VDC 7.8A, 185W
Input :
100-240VAC, 277VAC
IP Rating :
IP67 or IP65
Housing :
Aluminum
PFC :
yes, built-in PFC
Protection :
short circuit/over voltage/over current/over heat
Efficiency :
>94%
Warranty :
5 Years
Description

24Vdc 185W MEAN WELL IP67 Waterproof LED Single Output Switching Power Supply

HLG- 185H series is a 185W AC/DC LED driver featuring the dual mode constant voltage and current output. HLG-185H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features:

1. Universal AC input / Full range (up to 305V AC)

2. Built-in active PFC function

3. High efficiency up to 94%

4. Protections: short circuit / over current / over voltage/ over temperature

5. Cooling by free air convection

7. Function options: Ouput adjustable through potentiometer;

8. IP67 / IP65 design for inddor or outdoor installatons

9. three in one dimming function (0~10Vdc or PWM signal or resistance)

10. suitable for lED lighting adn stret lighting applications

11. 7 Years warranty (Note 10)

Applications:

1. LED Street lighting

2. LED High bay lighting

3. parking space lighting

4. LED fishing lamp

5. LED greenhouse lighting

6. Type "HL" for use in class I, division 2 hazardous (Classified) location.

Technical Specificaiton:

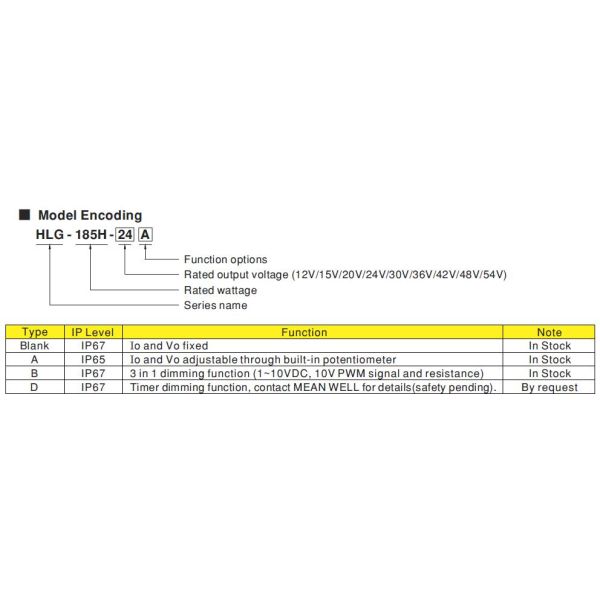

MODEL HLG-185H-12□ HLG-185H-15□ HLG-185H-24□ HLG-185H-36□
OUTPUT DC VOLTAGE 12V 15V 24V 36V

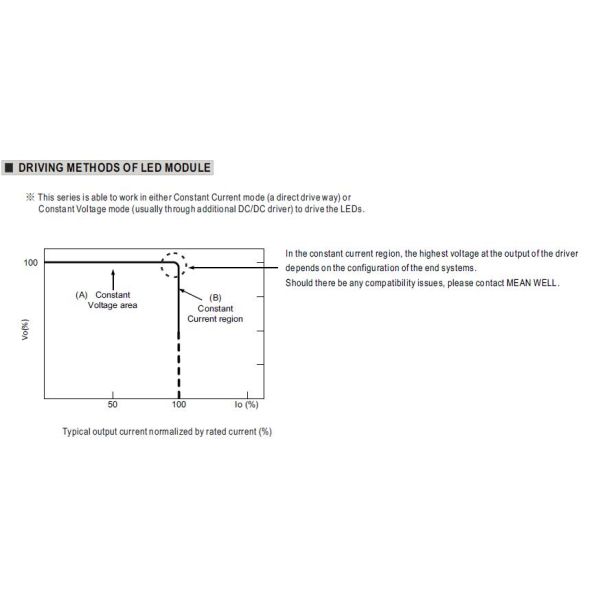

Constant Current Region (Note 4) 6~12V 7.5~15V 12~24V 18~36V
RATED CURRENT 13A 11.5A 7.8A 5.2A
RATED POWER 156W 172.5W 187.2W 187.2W
RIPPLE&NOISE(max.) Note.2 150mVp-p 150mVp-p 150mVp-p 200mVp-p

VOLTAGE ADJ. RANGE

(Adjustable for A-Type only (via built-in potentiometer))

 10.8 ~ 13.5V 13.5 ~ 17V 22 ~ 27V 33 ~ 40V

CURRENT ADJ. RANGE

(Adjustable for A-Type only (via built-in potentiometer))

 6.5 ~ 13A 5.75 ~ 11.5A 3.9 ~ 7.8A 2.6 ~ 5.2A
VOLTAGE TOLERANCE ±2.5% ±2.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2.0% ±1.0% ±0.5% ±0.5%
SETUP,RISE TIME Note. 6 1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME(Typ.) 16ms / 115VAC, 230VAC
INPUT VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC
(Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47~63Hz
POWER FACTOR(Typ.) PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
EFFICIENCY (Typ.) 91.5% 92% 93.5% 94%
AC CURRENT (Typ.)

12V: 1.8A / 115VAC 0.8A / 230VAC 0.7A / 277VAC

15V~54V: 2.1A / 115VAC 0.9A / 230VAC 0.8A / 277VAC
INRUSH CURRENT (Typ.) COLD START 65A(twidth=445μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A
CIRCUIT BREAKER		 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 14 ~ 17V 18 ~ 21V 28 ~ 34V 41 ~ 46V
Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. Tcase= -40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP Tcase= +90℃
WORKING HUMIDITY 20~95% RH non-condensing

STORAGE TEMP.,

HUMIDITY

 -40~+85℃, 10~95% RH
TEMP. COEFFICIENT ±0.03% / ℃ (0~50℃)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY SAFTY STANDARDS

UL8750(type”HL”), CSA C22.2 No. 250.0-08; TUV EN61347-1, EN61347-2-13 independent;gb19510, GB19510.14

IP65 or IP67; J61347-1, J61347-2-13 approved ; design refer to UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3. GB17743, and GB17625.1
EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
OTHERS MTBF 192.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION 228*68*38.8mm (L*W*H)
PACKING 1.15Kg; 12pcs/14.8Kg/0.8CUFT
NOTE 24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof

24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof

24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof

24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof

24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof

24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof

For more detail specification, please contact us to get the specification in PDF file.Thanks!
