Specifications
Brand Name :
COMI LIGHTING
Model Number :
D1G1807, D1I2007, D1I2407
Certification :
CE, RoHs
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100000pcs per month
Delivery Time :
3~14 Working Days
Packaging Details :
Inner box and outer carton
Input Voltage :
110~240VAC, 50/60Hz
LED Type :
2835SMD LED or 3528 SMD LED
Material :
Aluminum Lamp Body, Plastic Mounting Sleeve
Body Color :
Grey
Power Consumption :
1.8~3W
IP Rating :
IP65
Description

D1G1807 24VDC or 110-240VAC 2835 or 5050SMD LED Outdoor Rating IP65 Recessed LED Step Lights with Plastic Mounting Sleeve and Grey Body Color

Material specifications:

Housing: 12# Die-casting aluminum grey powder coated T=60-80µm.
Adhesion of ISO class 1/ASTM class 4B.
Front cover: 12# Die-casting aluminum PT877U powder coated T=20-30µm.
Adhesion of ISO class 1/ASTM class 4B
Cable gland: IP-67 copper and nickel coated
Gasket: Molding shaped silicone seal
LED: SMD3528 type power LED
Driver: Constant current output
Operating temperature: -20℃~40℃
Power cable: H05RN-F 3X1.0mm2 L=0.5m
Mounting sleeve: D1G1807: Zinc-coated steel 136#
D1I2007,D1I2407:PVC 081#

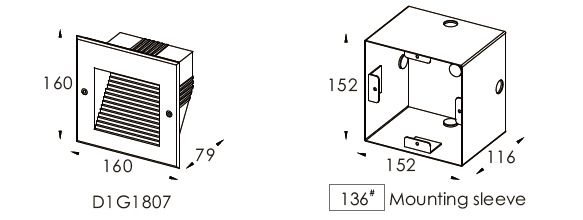

Dimensional Drawing(mm):

2W IP65 2835 or 5050 Recessed LED Step Lights with Mounting Sleeve 24V or 110-240VAC

General Information:

Item No. Light source
Degree
(Θ 1 / 2 )
Input
voltage(V)
Typical operating
current (mA)
Typical
consumption(w)
Typical
luminance (lm)
IK rate
D1G1807 18×SMD3528 120 110/240VAC
120V=26
240V=18
120V=1.8
240V=2.0
Cool white=59
Warm white=48
10
D1I2007 20×SMD3528 120 110/240VAC
120V=38
240V=23
120V=2.3
240V=2.5
Cool white=66
Warm white=53
10
D1I2407 20×SMD3528 120 110/240VAC
120V=36
240V=28
120V=2.4
240V=3.0
Cool white=80
Warm white=68
10

Note:
1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
