8 DMX512 Output Channels Artnet - to - DMX Converter Ethernet Control System
8 DMX512 Output Channels Artnet - to - DMX Converter Ethernet Control System
8 DMX512 Output Channels Artnet - to - DMX Converter Ethernet Control System
8 DMX512 Output Channels Artnet - to - DMX Converter Ethernet Control System
Specifications
Brand Name :
LT-Series
Model Number :
CL-LT-Artnet-DMX-8
Certification :
FCC, CE, ROHS, ISO 9001: 2008
Place of Origin :
Guangdong China
MOQ :
1Piece
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
3~12Days
Packaging Details :
Packing Size(1piece):L550×W265×H100mm, G.W.:2.4KGs
Product Type :
Artnet-DMX converter
Power input :
DC5V-DC24V ( power adapter included)
Input signal :
Artnet
Output signal :
DMX512
DMX channels :
8×512 channels
working temperature :
-20℃～65℃
Dimension :
L482.6×W200×H44mm
Package Size :
L550×W265×H100mm
Weight (G.W) :
2200g
Warranty :
5 Years
Description

CL-LT-Artnet-DMX-8 8 DMX512 Output Channels Ethernet Control System Artnet-DMX Converter

Brief introduction:

Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network date package into DMX512 date, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it supports RJ45 network interface and standard DMX512 output interface.

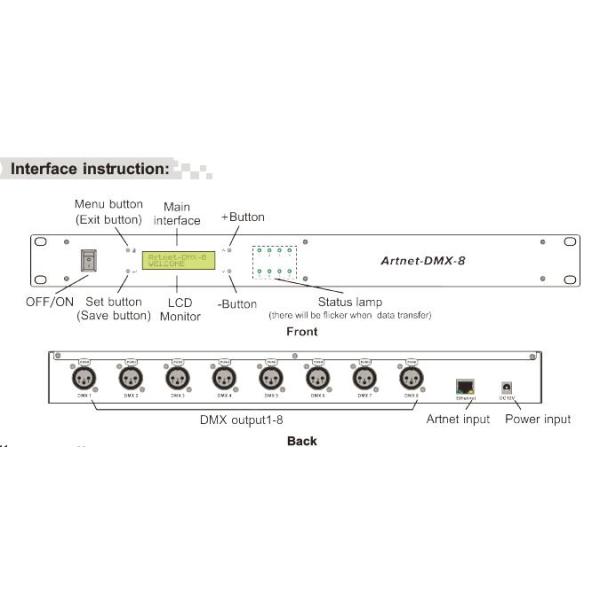

Artnet-DMX-8 use standard 1U(19" ) chassis architecture, convenient installation in professional cabinet, easily operation setting with LCD display.

Artnet-DMX-8 provides 8 standard DMX512 data output port, total output 8×512 data.

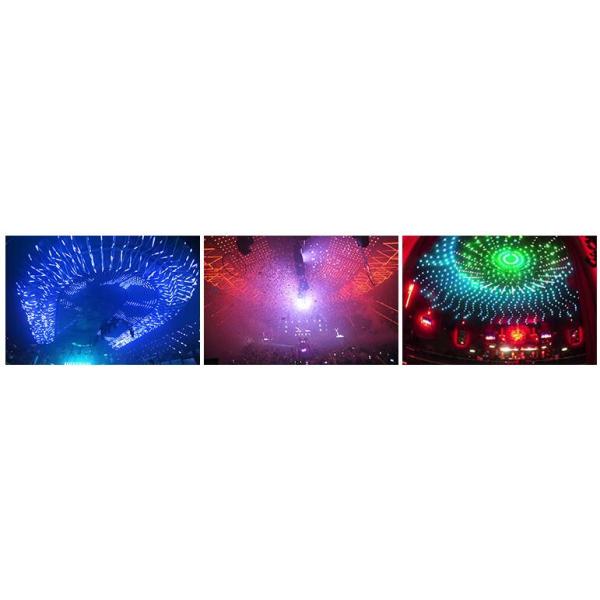

It is compatible with all the effects lighting control software which support Art-net protocol, widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data, especially for TV station recorded scene, stage performances, entertainment and so on.

Performance Features:
  • Based on Artnet protocol network data communication, accept network DMX data.
  • Can set two different IP address in each controller.
  • Set different network segments to avoid multiple sets Artnet data interference.
  • Manage Artnet on broadcast mode or unicast mode.
  • Standard 1U(19" ) chassis architecture, convenient installation in the standard cabinet.
  • With LCD screen display, convenient operation intuitive settings
  • Provides 8 standard DMX512 data output port and can output total 8×512 data.
  • Compatible with the light software based on Artnet Protocol, control stage lighting and LED lighting simultaneously.

Product parameter:

Artnet-DMX-8 4096 channels
Power input DC5V-DC24V (with a power adaptor)
Input signal Artnet
Output signal DMX512
DMX channels 8×512 channels
working temperature -20℃～65℃

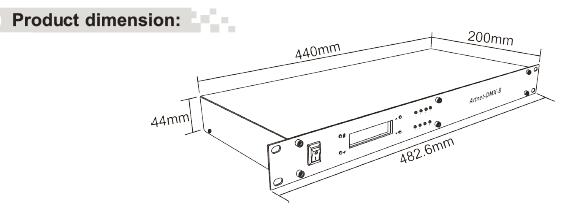

Dimension L482.6×W200×H44mm
Package Size L550×W265×H100mm
Weight (G.W) 2200g

8 DMX512 Output Channels Artnet - to - DMX Converter Ethernet Control System

8 DMX512 Output Channels Artnet - to - DMX Converter Ethernet Control System

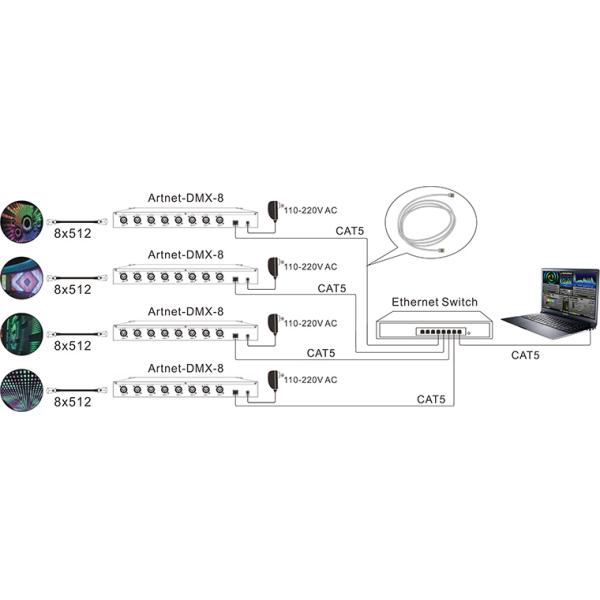

Typical Wiring Diagram:

8 DMX512 Output Channels Artnet - to - DMX Converter Ethernet Control System

8 DMX512 Output Channels Artnet - to - DMX Converter Ethernet Control System
