Specifications
Brand Name :
LT-Series
Model Number :
CL-LT-209
Certification :
CE, ROHS, FCC, ISO 9001:2008
Place of Origin :
Guangdong China
MOQ :
10pcs
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
3~12 Days
Packaging Details :
L269×W129×H46mm, 800g
Product Type :
LED Digital Pixel Music DMX Controller
Input :
DC12V
Power consumption :
<2W
Output signal :
SPI(TTL)
3rd part port :
DMX512
Function Mode :
16 modes
Control Qty :
1024 pixels
Warranty :
5 Years
Description

CL-LT- 209 LED Digital Pixel Music DMX Controller Support Matrix Mode and Linear mode

Brief introduction
CL-LT- 209 music controller support matrix mode and linear mode.Matrix mode based on the input audio or the received audio/the rhythm of the music produced the corresponding geometric LED color to achieve the effect of rolling jump, constitutes a music LED screen. Linear mode using a single audio data control the brightness of the LED lamps and lanterns of all pixels.
LT-209 music controller support control TM1809 series led tube(can also control based on compatible LED driver IC for LED lamps, such as LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, TLS3001, TLS3002, WS2801, WS2803, WS2811, WS2812, P9813 etc), maximum support 1024 pixels.
Support audio line input audio and a built-in microphone reception with live music, you can adjust the audio receiver sensitivity.
Built-in 16 kinds of changing modes, including a black effect,13 static colors and two DMX changing effects. What's more, DMX changing effect can also be affected by music control.

Performance Features:
  • With LCD screen,easy to operate in showing all functions.
  • It's workable for the lighting controlling mode of pattern matrix and linear model.
  • Supports audio line input and built-in microphone for live music.
  • Audio receiving sensitivity is adjustable.
  • Built-in 16 lighting effects. Such as 7 colors brightness, 7 colors skipping, 7 colors smooth, tc.
  • Support the third party DMX512 interface, realize DMX management mode, and recall the most functions of controller via DMX Console.

Product parameter:
CL-LT-209 Digital pixel Music Controller
Working Voltage DC12V (Included an adapter to covert AC100～240V to DC12V )
Power consumption ＜2W
Output signal SPI(TTL)
3rd part port DMX512
Function Mode 16 modes
Control Qty 1024 pixels
working temperature -30℃～65℃
Dimension L163×W125×H40mm
Package Size L269×W129×H46mm
Weight (G.W) 760g

LED Digital Pixel LED Controller Music DMX Controller Support Matrix / Linear Mode

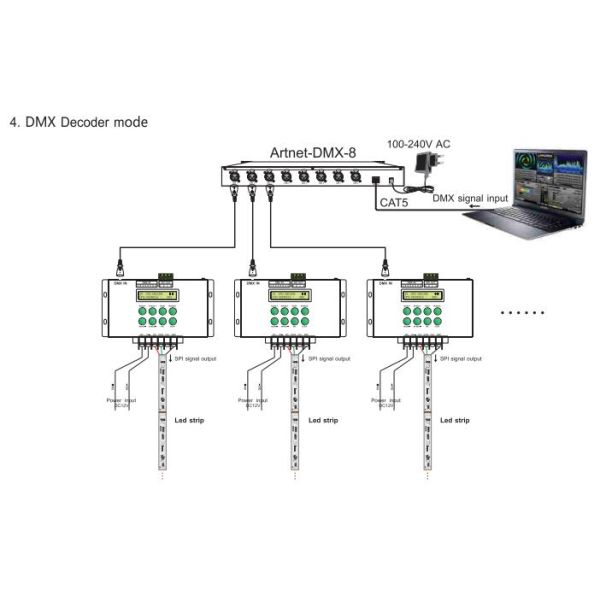

Typical Wiring Diagram:

LED Digital Pixel LED Controller Music DMX Controller Support Matrix / Linear Mode

LED Digital Pixel LED Controller Music DMX Controller Support Matrix / Linear Mode

LED Digital Pixel LED Controller Music DMX Controller Support Matrix / Linear Mode

LED Digital Pixel LED Controller Music DMX Controller Support Matrix / Linear Mode

For more information or operation instruction about this product, please feel free to contact us.
