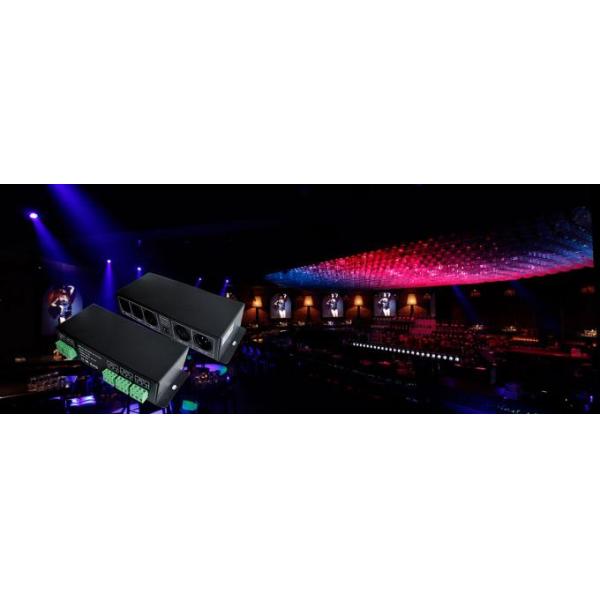

LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
Specifications
Brand Name :
LT-Series
Model Number :
CL-LT-123
Certification :
CE, RoHS, FCC, ISO9001 : 2008
Place of Origin :
Guangdong China
MOQ :
10pcs
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Delivery Time :
2~12 Working Days
Packaging Details :
Package size:L270×W90×H46mm, G.W:620g
Input Voltage :
12VDC
Adapter :
adapter to convert 100-240VAC to 12VDC is included
Input DMX Signal :
1CH DMX (485) Signal Input (photoelectricity isolation>3kv)
Output DMX Signal :
3CH DMX (485) Signal Output (photoelectricity isolation>3kv)
DMX512 Socket :
XLR-3,Green Terminal for options
Working Temperature :
-30℃~65℃
Dimension :
L192×W80×H41mm
Package Size :
L270×W90×H46mm
Weight(G.W.) :
620g
Warranty :
5 Years
Description

LED DMX Signal Amplifier Controller with 3 Channels Distributed Output

CL-LT-123 is dedicated to amplify, distribute, and insulate the signal that comes from the lighting system equipment when it is connected to the bus of DMX512.

Features and Benefits:

  • Designed for signal shaping amplification or boosting for DMX512 (485) signal and realize extending the signal transmission when the DMX signal become weak after a long-distance transmission, distance;
  • Need to use the multiple signals expansion output control , increase DMX(485) signal amplifier to distribute multi-channel control.
  • With 1 channel DMX input and 3 channels distributed DMX output, there is a independently photoelectricity insulation of >3KV between Input and output terminals, and output terminals among 3 channels , so as to avoid the expensive equipment such as light ,DMX driver, precise digital lighting controller, being burnt by the possible high voltage which caused from the wrong wire connection and a broken equipment, also can avoid the signal interference between each DMX equipment, to assure it works safely.

Product Parameters:

Input Voltage 12VDC (adapter to convert 100-240VAC to 12VDC is included)
Input DMX Signal 1CH DMX (485) Signal Input (photoelectricity isolation>3kv)
Output DMX Signal 3CH DMX (485) Signal Output (photoelectricity isolation>3kv)
DMX512 Socket for options (Input or Output)XLR-3, Green Terminal
Working Temperature -30℃~65℃
Dimension L192×W80×H41mm
Package Size L270×W90×H46mm
Weight(G.W.) 620g

Configuration Diagram:

LED DMX Signal Amplifier Controller with 3 Channels Distributed Output

Dimensional Drawing(Units:mm):

LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
Typical Wiring Diagram(For more different wiring diagram, please contact us separately):
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
