CL-SR-1009HTWP 110 - 240VAC Input P67 Outdoor Rating Waterproof High Voltage LED Strip RF - DMX Controller 3CH 110-240VDC Max 5A Output, Unique RF-DMX Function with Outputs DMX signal and Work with DMX512 decoders

Description:

The new waterproof AC high voltage RF controller CL-SR-1009HT(WP) is a great innovation designed with 100-240VAC wide input and 100-240VDC output, IP67 waterproof rating to control high volt RGB LED strip lights for indoor and outdoor large projects that have strict waterproof requirements. This patented high voltage control technology ensures stable and reliable control with smooth dimming and RGB color tone adjustment for high voltage RGB LED strips. With 3 channels, total 5A output, the maximum output of the RF controller can be up to 1,000W. The RF LED controller is designed with unique RF-DMX function which enables it with DMX signal output and works with DMX512 decoders. It is compatible with all our SR-Series perfect RF series RGB remote senders and wall mounted senders. IP67 rating enables the high volt. LED strip controller to be used in outdoor and damp environment and great solution for outdoor lighting projects.

Key Features:

• Waterproof AC RF Receiver with IP67 Rating
• Leading Global High Voltage RGB RF LED Controller
• 100-240VAC Wide Input and 100-240VDC Output
• 3 Channels, Total 5A Output
• Up to 1000W Output
• Patented High Voltage Control Technology, More Stable and Reliable Than Competitors’
• Perfect to Control High Voltage LED Strip
• Smooth and Accurate Brightness and RGB Color Tone Adjustment without Flickering
• Unique RF-DMX Function and Compatible with A Variety of DMX512 Decoders
• Compatible with perfect RF series RGB LED Remote or Wall Mounted Senders
• Enable to be used for indoor and outdoor applications in damp environment
• Radio frequency available: 869.5/434/916.5MHz

Specifications

Dimensional Drawing (mm):

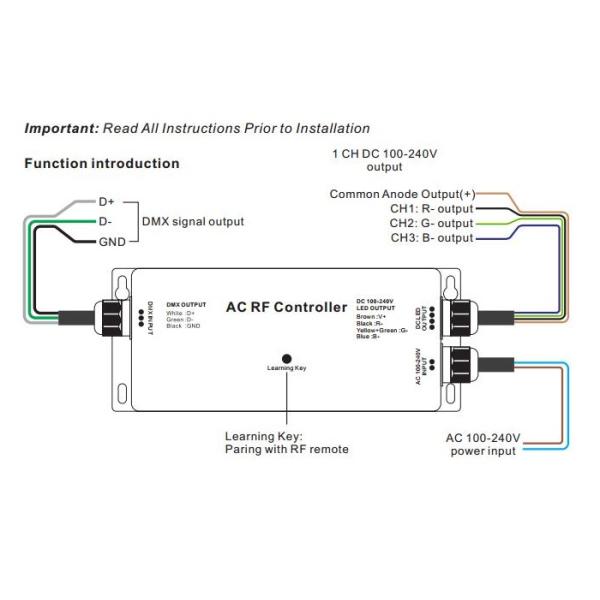

Typical Wiring Diagram:

Please contact us to get product specification and manual, and Read All Instructions Prior to Installation.
