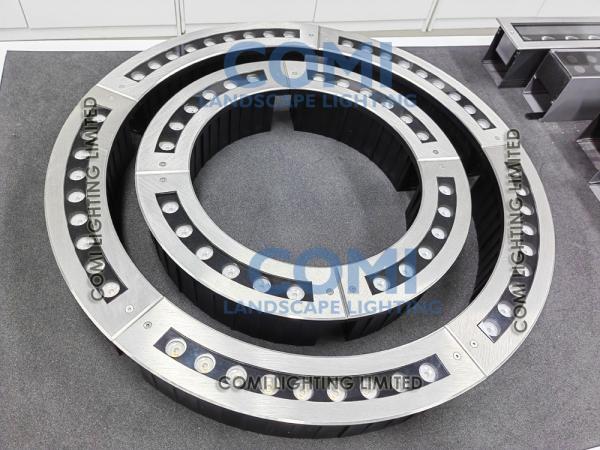

18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
Specifications
Brand Name :
COMI LANDSCAPE LIGHTING
Model Number :
B2FR0957(symmetric), C2FR0957(Asymmetric)
Certification :
CE ROHS ETL
Place of Origin :
CHINA
MOQ :
No MOQ
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100,000pcs Per Month
Delivery Time :
7~20Days depends on quantity
Packaging Details :
6pcs Per carton
Item Name :
Recessed Arc LED In-ground Light
Watts :
9W, 18W, 27W, 36W
LED :
9pcs 2W/3/4W/ Osram High Power LED
Light Color :
single color, RGB, RGBW
CRI :
Ra>80 or Ra>90
Lumen Output :
1230LM(for 18W @4000K)
Material :
SUS316 stainless steel front ring and aluminum alloy housing, ABS mounting sleeve
Feature :
circular arc shaped recessed inground light.
IP rate :
IP67
Application :
circular Lighting for pillar, circular column, flower nursery, sculpture
Description

18W 27W Recessed Circular LED Inground Lights 24VDC 110-120VAC or 220-240VAC input For Architectural And Landscape Lighting

Architectural curved LED in-grade ground Drive-Over Rated stainless steel wall wash is ideal for commercial or residential applications where architectural lighting is desired. Available low voltage 24VDC or high votalge 110-240VAC input for option. Curved shaped design is a perfect lighting sulution for surround round cylindrical pillar, or encircle tree or small flower nursery or parterre.

Features of Arced LED Recessed Underground Lighting Fixtures:

  • Curved-shape or circular shaped designed for encircling lighting for tree or round pillar.
  • Beam angle: (1) Symmetrical Light: 10°, 25°, 45°, 60°, 20*40°, 20*60°; (2) Asymmetrical Light: 45°|35°.
  • 9pcs 2W Osram LED or 3W RGB 3-in-1 LED or 4W RGBW 4-in-1 LED.
  • Input voltage: Low voltage 24VDC, or High Voltage 110-120Vac, or 220-240Vac 50/60Hz.
  • Watts: 18W(single color), 27W(RGB Multi-color), 27W or 36W (RGBW Multi-color)
  • CRI(Ra)>80 (for 2200-6500K only).
  • Color or color temperature: 2200-6500K, Red,Green,Blue,Yellow, RGB or RGBW.
  • SUS316 stainless steel front Ring and aluminum alloy body.
  • Basic is non-dimmable.
  • Optional dimming or controllable with DALI, 0/1-10V,TRIAC, DMX512 support.
  • Easy recessed install by mounting sleeve.
  • ABS Mounting sleeve included.
  • IPclassification: IP67.
  • 2 Years warranty.
  • Operating Temperature: -20˚C~+40˚C
  • Certificates: CE, ROHS

Technical Parameters for Recessed Underground Luminaire for Facade lighting:

Item Number B2FR0957 B2FR0918 B2FR0920
Light Color Single Color RGB 3-IN-1 Full color RGBW 4-IN-1 Full color
Light Source

9pcs*2W

Osram or CREE LED

9pcs*3W

RGB 3-IN-1 LED

9pcs*4W

RGB 4-IN-1 LED
Power 18W 27W 27W or 36W
Luminous Flux 1288LM(@6000K) 550LM 920LM
CRI(Ra) Ra>80 / /
Input Voltage

Optional 24VDC,

110-240VAC

 24VDC 24VDC
Typical Current

24VDC=750mA

110V=172mA

240V=86mA

 R=270
G=400
B=400

R=270
G=400
B=400

W=400
Beam Angle Symmetrical Light: 10°, 25°, 45°, 60°, 20*40°, 20*60°;
Asymmetrical Light: 45°|35°
IP Rate IP67 IP67 IP67
IK Rate 09 09 09
Materials SUS 316 Front ring, Aluminum Alloy Housing, ABS Mounting Sleeve
Light Window High - pressure water cutting Tempered glass
Control Mode Basic ON/OFF and non-dimmable. Optional PWM, TRIAC, DALI, 0-10V, DMX512
Operating Temperature -20˚C~+40˚C
Installation Recessed Mount by ABS mounting sleeve (included)
Power Cable 0.5meter H05RN-F 2X1.0mm² to open wires (Low voltage)
0.5meter H05RN-F 3X0.75mm² to open wires(High voltage)
0.5meter H05RN-F 4X0.75mm² to open wires(for RGB)
0.5meter H05RN-F 5X0.75mm² to open wires(for RGBW)

Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.) , RGB.
2. The above items are with symmetrical light output, for asymmetrical light output types or frosted glass with soft light output type, please inquire separately.
3. Specifications are subjected to change without notice.

Dimensions (Units:mm) For IP67 Outdoor Architectural and Landscape LED Inground Light:

18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting

Family Products of 6*2/3/4W or 9*2/3/4W 12W/18W/27W/ 36W Recessed Arced Inground Luminaires:

18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting

18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting

18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting

18W 27W Recessed Circular LED Inground Lights For Architectural / Landscape Lighting
