3x3W 3x4W LED Underwater Spot Light DMX512 made of 316L Stainless Steel for pool lighting
3x3W 3x4W LED Underwater Spot Light DMX512 made of 316L Stainless Steel for pool lighting
3x3W 3x4W LED Underwater Spot Light DMX512 made of 316L Stainless Steel for pool lighting
3x3W 3x4W LED Underwater Spot Light DMX512 made of 316L Stainless Steel for pool lighting
3x3W 3x4W LED Underwater Spot Light DMX512 made of 316L Stainless Steel for pool lighting
3x3W 3x4W LED Underwater Spot Light DMX512 made of 316L Stainless Steel for pool lighting
3x3W 3x4W LED Underwater Spot Light DMX512 made of 316L Stainless Steel for pool lighting
3x3W 3x4W LED Underwater Spot Light DMX512 made of 316L Stainless Steel for pool lighting
Specifications
Brand Name :
COMI Landscape Lighting
Model Number :
B5BC0106, B5BC0357, B5BC0318,B5BC0320
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
No MOQ
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100,000pcs per month
Delivery Time :
3-20days
Packaging Details :
20PCS/CARTON
Product Name :
Underwater LED Pool lights
Item type :
Mini Led Underwater Spot light,COB LED spotlight
Light source :
3pcs 3W or 4W LED, or 1piece 6W COB LED
Input voltage(v) :
DC12V/24v
Lamp body material :
Stainless Steel 316
Cri (ra>) :
80
Beam angle :
10° / 30° / 45° / 60° / 90°
Color temperature(cct) :
Warm White,Pure White,Cool White,RGB,Multicolor
Working lifetime(hour) :
50000
Working temperature(℃) :
-20-+40
Lamp luminous efficiency(lm/w) :
65-75LM/W
Warranty(years) :
2
Application :
Swimming Pool,Fountain / Pond / Landscape/ Garden,outdoor,park fountain or hotel fountain
Description

Underwater Pond Spotlights 3x3W Or 3x4W Single Color RGB RGBW Made Of 316 Stainless Steel

IP68 underwater spotlight made of SUS 316 stainless steel is suitable as underwater flood lights or underwater spotlight for fountains, pools, ponds, water gardens, waterfall and etc. for atmospheric or underwater lighting.

Features and Benefits:
▪ Light source: 3pcsx2W/3W/4W, 1piece 6W COB LED
▪ Single color, RGB, RGBW available.
▪ Input voltage: 24VDC (12VDC available).
▪ Underwater ground and wall surface mount by bracket.
▪ Projection angle adjustable.
▪ Completely stainless steel SUS 316 housing & accessory
▪ Optional ON/OFF, DALI, 1-10 V, PWM Dimmable or DMX 512 controllable.
▪ IP68 waterproof,underwater installation in depth less than 1meter.
▪ Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
▪ SUS 316 stainless steel bracket included.
▪ 2 Years warranty.

Materials Specifications of IP68 submersible pond lights

Housing & Front cover Molding shaped sus 316 stainless steel housing
Bracket SUS 316 stainless steel
Window glass Step tempered glass. T=5mm
Lens Separate optical lens efficiency≥85%
Cable gland IP-68 PG-11 copper with nickel -coated
Seal Molding shaped silicon seal under the front cover Silicon glue among LED, lens and PCB
PCB Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk
Driver Constant current output
▪ Single color LED=2-circuit output
▪ RGB 3in1 LED=3-circuit output
Application environment Temperature of water between -20℃~40℃ less than 1 meter depth.
Electrical connection ▪ 1x cable 3meters H05RN-F 2x1.0mm² to open wires (for Single color)
▪ 1x cable 3meters H05RN-F 4x0.75mm² to open wires (for RGB)

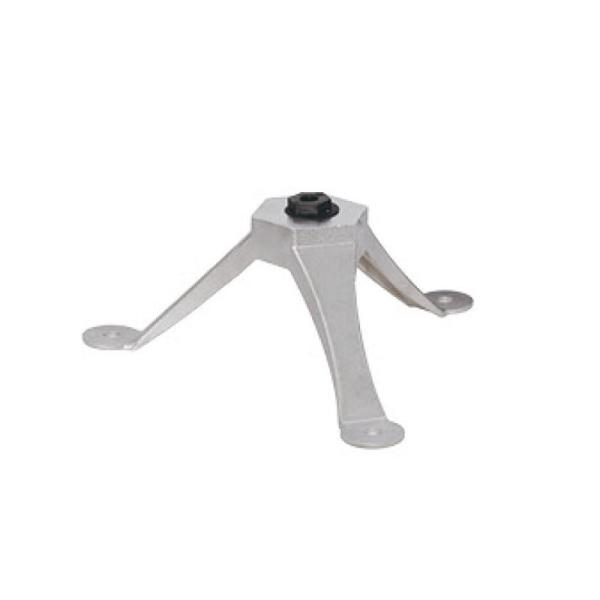

Tripod SUS 316 stainless steel(Included)
Dimmable or DMX512 ▪ Standard non-dimmable.
▪ Optional DALI, 1-10 V, PWM Dimmable or DMX512 controllable support.

Technical Parameters of IP68 waterproof led lights for fountains:

Item No. Control Mode Color Light Source
Beam Angle
(Θ1/2)(°)
 Input Voltage
Rated
Power
Luminous Flux
(lm)±10%
 IK Rate
B5BC0106 ON/OFF
Single Color
2700-10000K

1×6W
Cree COB LED

 15°,25°,36° 24VDC 6W 432 IK10
B5BC0657 ON/OFF
Single Color
2700-6500K

3pcs×3W
Osram LED

5°, 15°,25°
,36°,60°

 24VDC 6W 420 IK10
B5BC0618 PWM RGB 3×3W
RGB 3-in-1
Full Color LED		 25°, 40°,60° 24VDC 9W 171 IK10
B5BC0620 PWM RGBW

3×4W
RGBW 4-in-1
Full Color LED

 25°, 40°,60° 24VDC 12W 345 IK10

Notes:
1. Optional PWM, 0-10V, DALI, DMX512 control;
2. Specifications of IP68 24V or 12V LED waterproof lights are subjected to change without notice.

Applications of submersible led lights for fountains:

IP68 waterfall lights underwater are suitable for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.
