DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
Specifications
Brand Name :
COMI LIGHTING
Model Number :
B3C0305(single), B3B0318(RGB),B3C0320(RGBW)
Certification :
CE, ROHS, EMC,LVD
Place of Origin :
Made in China
MOQ :
No MOQ
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000pcs per month
Delivery Time :
3-20days depends on order quantity
Packaging Details :
24pcs/cartons
Product Name :
IP65 Outdoor Garden Spot Lights
Working Voltage :
24VDC, or 100-240vac, 50/60Hz
Light Source :
1x11W, or 3pcs x 3W or 4W CREE or Osram LED
Color or Color Temperature :
single, tunable white, RGB, RGBW
Power :
9W,12W (RGBW), 12W
Luminous Flux :
840 (12W COB LED)
Body Color :
Black, grey, white, silver and etc.
Finished treatment :
Powder coated
IP Rated :
IP65 waterproof for outdoor lighting
Installation accessories :
backet, spike, round base, tree strap for options
Optional Front Cover :
Front Cover with Visor/light shield
Warranty :
3 years
Description

IP65 Outdoor LED Landscape Lights 3x4W with Base (surface mount) or Spike (ground stake),or tree light mounting straps (mounted on tree by strap) and with optional Visor Optional 0-10V/ DALI dimming or DMX512 Control support

The COMI SPOT LIGHT IP66 B3C-Series is suitable for emphasis lighting indoors as well as outdoors. Combined with a round base, or ground spike, or tree light mounting straps, or glare shield, it is also perfect for plant and garden lighting

Features and Benefits:
▪ Light source:1x10W CREE COB LED, or 3x3W or 3x4W LED
▪ Power: 12W(Mono), 9.6W(RGB 3-in-1), 12.5W (RGBW 4-in-1).
▪ Input voltage: 24VDC or 110-240Vac.
▪ Color: Mono color, RGB, RGBW.
▪ Beam angle: 8°, 10°, 15°, 30°,45°, 60°.
▪ Materials: Aluminum alloy
▪ Project angle Up to down adjustable and horizontal 360° rotatable.
▪ Installation by Round base.
Optional accessory: Ground spike(PVC), tree strap, glare shield(visor).
▪ Optional housing color: Black,anodized aluminum, matt silver, copper.
▪ Optional DALI, 1-10 V, PWM, TRIAC or DMX 512 controllable support.
▪ IP66 and IK04 rating.
▪ 2 Years warranty.

DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated

Material specifications:

Housing Aluminum anodized finishing or powder painting
Lens Optical lens, efficiency ≥ 85%
Glass Tempered glass. T=3mm
Cable gland Copper and nickel coated
Gasket Tooling shaped seal
LED TO type power LED for RGB, single color is Osram or CREE LED
PCB

Excellent heat conductivity aluminum,

coefficient of Heat Conductivity≥2.0w/mk
Driver Constant current output
Operating temperature -20℃~40℃
Power cable Constant current output
Single color LED=1-circuit output
RGB 3in1 LED =3-circuit output
Cable H05RN-F 2X1.0mm² , L=2m (low voltage)
H05RN-F 3X0.75mm², L=2m (high voltage)
H05RN-F 4X0.75mm², L=2m (for RGB)

Technical Specifications of LED Landscape Spotlights:

Item Number Light Source Color
Lens Degree
(Θ1/2)(°)
CRI
(Ra)
Input Voltage(V)
Typical Operating
(mA)
Typical Power
(W)
Luminance
(lm)
IK
Rate
Optional Mounting
Accessories
B3DX0405H
4×4W
CREE or OSRAM LED
Single
Color
 8°,15°, 25°, 40°, 60° Ra>80
24VDC
110-120V
220-240V
24V=525mA
110V=115mA
240V=53mA
 15W 1123 04
Round Base,
Spike,
Tree Strap
B3DX0120H
1×20W
CREE COB LED
Single
Color
15°,25°,
40°, 56°,
10x60°,
20x30°
 Ra>80
24VDC
110-120V
220-240V
24V=520mA
110V=111mA
240V=51mA

16W

(max 20W)

 1160 04
Round Base,
Spike,
Tree Strap
B3DX0418H
4×3W
RGB 3-in-1 full color LED
RGB
Color
13°,25°,
40°, 60°
 / 12/24VDC
766mA
(12VDC)
 12W 222 04
Round Base,
Spike,
Tree Strap
B3DX0420H
4×4W
RGBW 4-in-1 full color LED
RGBW
Color
13°,25°,
40°, 60°
 / 12/24VDC
508mA
(24VDC)
 16W 480 04
Round Base,
Spike,
Tree Strap

Notes:

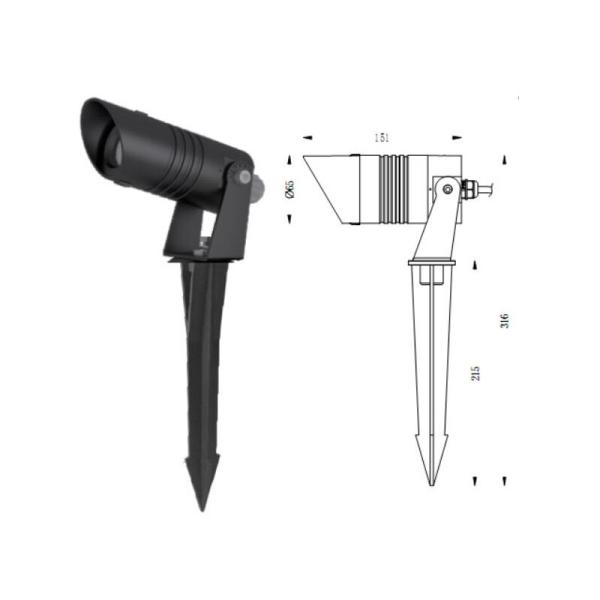

1. "X" in item number stands for mounting accessories for IP66 outdoor led flood spot lights:

X

Mounting Accessories

Mounting Method

M

Round base

Surface mount on ground, wall, or ceiling

B

Spike

Ground

T

Tree Strap

Tree mounted by strap

2. Color: Single color 2000,2400K, 2700K, 3000K, 4000K,6000K, Red, Blue, Gree, RGB, RGBW
3. Specifications are subjected to change without notice.

Finished Body color options for IP65 / IP66 LED Garden Spotlights

Body color available: black, dark grey, silver, white,copper and etc.

DMX512 LED Architectural Spot Light 3x4W 0-10V DALI Dimming Powder Coated
