IP68 flexible top view neon LED flex F18 line with a W16.5×H16.5mm cross section. Opal polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gases and protection against abrasion. Vertical bending only, with radius of 8mm excellent solution for indoor / outdoor organic facade accent lighting or decorative applications requiring IP67 even IP68 ingress. Fully dimmable with PWM,0/1-10V,DALI, DMX512.

Features and Benefits:
▪ 3 sides emitting with Uniform and even light output.
▪ 260 degree beam angle.
▪ Flat Shape Ivory White diffused PVC or silicone luminous surface.
▪ Continuous and uniform illumination, no LED dot or dark spot.

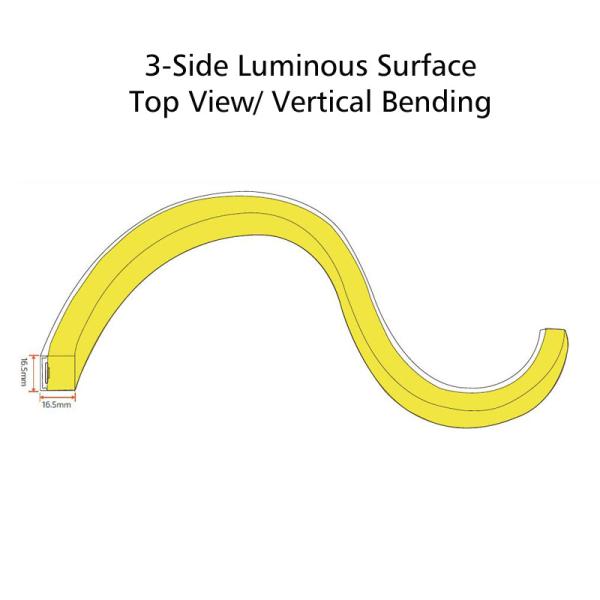

▪ Vertical(upward-to-downward) bending only with radius of 8mm.
▪ Optional input Voltage 12VDC, 24VDC or 36VDC
▪ Working with Dali, 0/1-10, DMX,PWM, Triac for options.
▪ Constant Current IC built in optional.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Optional IP67 DIY Screws type and IP68 mould injection type connectors.
▪ Optional Single end or dual ends power cable for neon LED flex.
Cable output sides available: (1) Direct end, (2) bottom, or (3) side cable output.
▪ Continuous run length Up to 30meters(for constant current IC driving only).

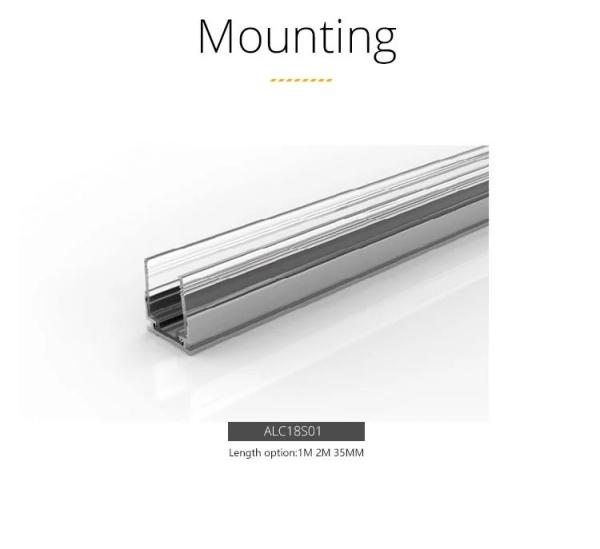

▪ Provides various smart accessories for mounting and installation.
▪ Full encapsulated with IP68 Level and rating IK08.
▪ Ambient temperature:-25°C to +55°C
▪ Standard 3 years warranty (5 years is available).

Important Notes for neon LED flex when underwater use:
1. Please select mould injection connector and the depth of underwater is <2Meters.
2. Used in swimming pool or fresh water only, CAN NOT be used in sea water.

Techinical Specification:
