Easy Maintenance Mini Recessed LED Spotlight 1W / 1.5W LED Handrail Lights For Round Handrail
Easy Maintenance Mini Recessed LED Spotlight 1W / 1.5W LED Handrail Lights For Round Handrail
Easy Maintenance Mini Recessed LED Spotlight 1W / 1.5W LED Handrail Lights For Round Handrail
Easy Maintenance Mini Recessed LED Spotlight 1W / 1.5W LED Handrail Lights For Round Handrail
Easy Maintenance Mini Recessed LED Spotlight 1W / 1.5W LED Handrail Lights For Round Handrail
Easy Maintenance Mini Recessed LED Spotlight 1W / 1.5W LED Handrail Lights For Round Handrail
Easy Maintenance Mini Recessed LED Spotlight 1W / 1.5W LED Handrail Lights For Round Handrail
Easy Maintenance Mini Recessed LED Spotlight 1W / 1.5W LED Handrail Lights For Round Handrail
Specifications
Brand Name :
COMI LIGHTING
Model Number :
B9RS0157
Certification :
CE ,ROSH
Place of Origin :
CHINA
MOQ :
NO MOQ
Payment Terms :
T/T, Western Union, D/P, D/A, L/C, MoneyGram
Delivery Time :
5-8 working days
Voltage :
AC100-240V
Material :
Aluminum alloy
Led Type :
1 piece 2W Cree LED
Light Color :
Warm White
Led Quantity :
1PCS
Lumen :
70LM
Size :
Ø26*H37mm
Power :
2W
Ip Rating :
IP65
Oem :
Available
Warranty :
2 years
Description

Features and benefits:
▪ Mini design: Ø26xH37mm Mini recessed spotlight.
▪ Arc front ring suitable for round handrail lighting.
▪ Symmetrical light output, optional beam angle:10°, 20°,30° .
▪ Power consumption: 1W or 1.5W.
▪ Constant current: 350mA, or 500mA working.
▪ 1piece 1~2W Cree LED.
▪ High brightness 70LM(1.5W@3000K) output.
▪ Color Temperature: 3000K, 4000K, 5000K, 6000K.
▪ CRI: Ra>80 (CRI90+ available).
▪ Adjustability: Fixed.
▪ Average life time: 30000 hurs@70% lumen depreciation.
▪ Finished: Silver, black or white, Anodized Oxidation.
▪ Materials: Aluminum alloy lamp housing.
▪ Easy recessed mounted and maintenance.
▪ Suitable for dia. Ø50.8mm round handrail (internal dia. Ø47~Ø49mm).
▪ Cut out: Ø25mm.
▪ Protection class: IP65 Waterproof.
▪ Ambient Temperature: -20℃ ~ +45℃.
▪ 2 Years warranty.

Note: Ø50.8mm round 316 or 304 stainless steel handrail is NOT included.

Technical Parameters for IP65 Recessed LED Handrail Spotlight:

Item Number B9RS0157

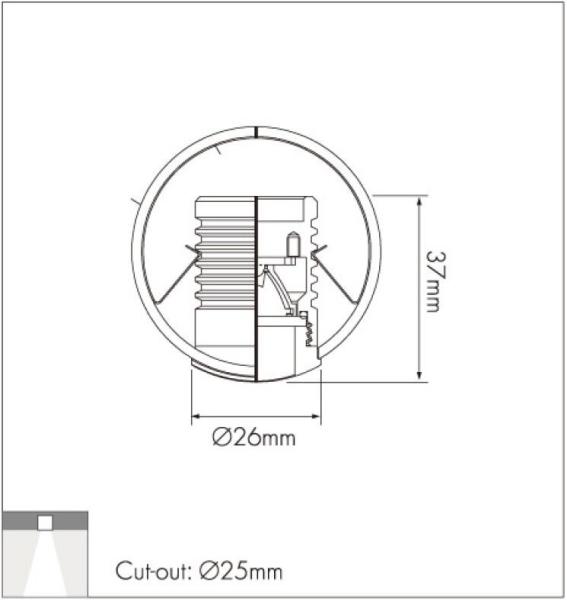

Dimension Ø26*H37mm
Power(W) 1~1.5W (Max 1.5W)
Working Mode Constant current 350mA or 500mA working
Optional LED driver (Optional) 220-240VAC intput constant current LED driver for 1piece handrail spotlight
CCT(K) 2700K, 3000K, 4000K, 5000K, 6000K
CRI(Ra) Ra>80 (Optional CRI 90+)
Luminous Flux(lm) 70LM (1.5W@3000K)
Beam Angle 10°, 20°,30° .
Cut Out(mm) Ø25mm
Cut Edge 30°
Material Aluminum alloy
Finish Color Silver, black or white, Anodized Oxidation

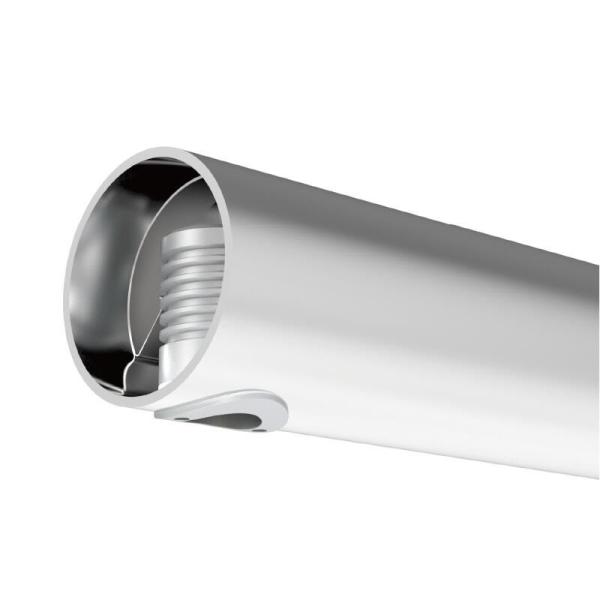

Stainless Steel Spring Clip included, used for put into round handrail to fix the handrail spot lamp
Suitable Round Handrail Suitable for dia. Ø50.8mm round handrail (internal dia. Ø47~Ø49mm)
Mounting Method Recessed Mounted
Average life time 30000 hurs@70% lumen depreciation.
IP Rated IP65, suitable for indoor or outdoor handrail lighting applications.
Ambient Temperature -20℃ ~ +45℃
Warranty 2 years
Certificate CE, RoHS

Note:Specifications are subjected to change without notice.
