Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W
Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W
Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W
Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W
Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W
Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W
Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W
Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W
Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W
Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W
Specifications
Brand Name :
COMI LIGHTING
Model Number :
B6WL2620-TW
Certification :
CE,RoHS,EMC
Place of Origin :
CHINA
Payment Terms :
T/T, Western Union, D/P, D/A, L/C, MoneyGram
Delivery Time :
5-8 working days
Led :
5050,2835
Standard Reel :
26.5mm*20.5mm
Waterproof :
IP20 IP65
Protection Technology :
glue|irrigation glue
Certificates :
CE & ROHS
Power :
24W/M
Remarks :
5CM cable (Customized size)
Beam Angle :
5°, 30°, 50°, 20×35°, 18×20°,
Color Temperature :
2900K-3200K 5500K-6500K,RGB
Cutable :
yes
Input Voltage :
24V
Support Dimmer :
yes
Description

The COMI Landscape Lighting's free bending structure designed flexible LED wall washing light with optical lens perfectly fit the outdoor curved surface of various arcs to achieve the effect of wall washing.


Features and Benefits:
▪ Cross sectional dimensions (W*H): 26.5mm*20.5mm.
▪ Free bending in both horizontal and vertical 360 degree directions.
▪ High brightness up to 2000LM/meter and light efficiency up to 83LM/W.
▪ Various color for options: single color, tunable white, RGB, RGBW.
▪ DMX512 pixel addressable&programmable 4pixels/meter is available.
▪ Safe low voltage 24VDC input.
▪ Power: 24W/m (single color or tunable white) or 18W/m (RGB or RGBW).
▪ Light source: SMD2835/5050 LED, 24pcs/meter.
▪ Various beam angle for different applications:
(1) Single color, tunable white, RGB: 15°, 30°, 50°, 20×35°, 18×20°, 20×55°;
(2) RGBW: 35°, 30°x45°.
▪ Bending diameter: min. Ø400mm in both vertical&horizontable direction.
▪ Max continous run length: 5meters/roll.
▪ Min. cutting unit: 250mm(6LEDs).
▪ Mounting ways: Surface mounted on ground, wall or ceiling;
▪ Mounting accessories: mounted by clips, bracket, mounting profile.
▪ Power cable entry way: Bottom entry cable connector.
▪ Materials: optical grade environmental protection silicone.
▪ Salt resistance, acid and alkali corrosion resistance, flame retardant, UV resistance;
▪ Extrusion molding process, IP65 and IK08 protection class.
▪ Ambient temerature: -25°C ~+50°C.
▪ Certificates: CE, RoHS.
▪ Warranty:3 years.

Technical Parameters of Flexible LED Wall Washing Lights:

Item Number
Working
Mode
Light Color
or CCT(K)
Pixel Number
(pixels/meter)
(IC Type)
 Light Source
Input
Voltage
Power
(W/M)
Optional
Beam Angle
Luminous Flux
(LM/Meter)±8%
Min Cutting
Unit (mm)
IP&IK
Rate
Max Lenth
Per Piece
B6WL2620-XX ON/OFF
Single
Color
 /
24pcs×2835
SMD LED
 24VDC 24W/M
15°, 30°,
50°, 20×35°,
18×20°,
20×55°
1580LM (3000K)
2000LM(4000K)
1800LM(6000K)
250mm
(6LEDs)
IP65,
IK08
 5Meters
B6WL2620-TW ON/OFF
Tunable
White
(2700K+6500K)
 /
24pcs×2835
SMD LED
 24VDC 24W/M
15°, 30°,
50°, 20×35°,
18×20°,
20×55°
1600LM
(@3000K)
250mm
(6LEDs)
IP65,
IK08
 5Meters
B6WL2620-RGB PWM
RGB
Full Color
 / 24pcs×SMD 5050 RGB 3-in-1 LED 24VDC 18W/M
15°, 30°,
50°, 20×35°,
18×20°,
20×55°
 515LM
250mm
(6LEDs)
IP65,
IK08
 5Meters
B6WL2620-RGBW PWM
RGBW
Full Color
 /
24pcs×SMD5050 RGBW
4-in-1 LED
 24VDC 18W/M 35°, 30°x45° 850LM
250mm
(6LEDs)
IP65,
IK08
 5Meters
B6WL2620-RGB-DMX DMX512
RGB
Full Color
4Pixels/M
(IC Type: SM18522PH)
 24pcs×SMD 5050 RGB 3-in-1 LED 24VDC 18W/M
15°, 30°,
50°, 20×35°,
18×20°,
20×55°
 515LM
250mm
(6LEDs)
IP65,
IK08
 5Meters
B6WL2620-RGBW-DMX DMX512
RGBW
Full Color
4Pixels/M
(IC Type: SM18522PH)
24pcs×SMD 5050 RGBW
4-in-1 LED
 24VDC 18W/M 35°, 30°x45° 850LM
250mm
(6LEDs)
IP65,
IK08
 5Meters

Notes:
1. Light color or CCT(K) available:
(1) single color: 2700K, 3000K, 3300K, 4000K, 5000K, 6000K,6500K, red, blue, green and others.
(2) Tunable white (also named as adjustable color temperature): 2700K+6500K.
(3) RGB 3-in-1 full color.
(4) RGBW 4-in-1 full color.
2. The 360degree free bending flexible LED Linear wall washing lights above are working with DALI/ 0-10V/ PWM/ DMX512 dimming driver (please order dimming driver separately).
3. Specifications are subjected to change without notice.

Dimensional Drawing of 360 Degree Bending 3D Optic LED Wall Washing Light (Units:mm):

Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W

Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W

Bending Direction and Min Bending Diameter of Free Bending LED Wall Washing Light:

Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W

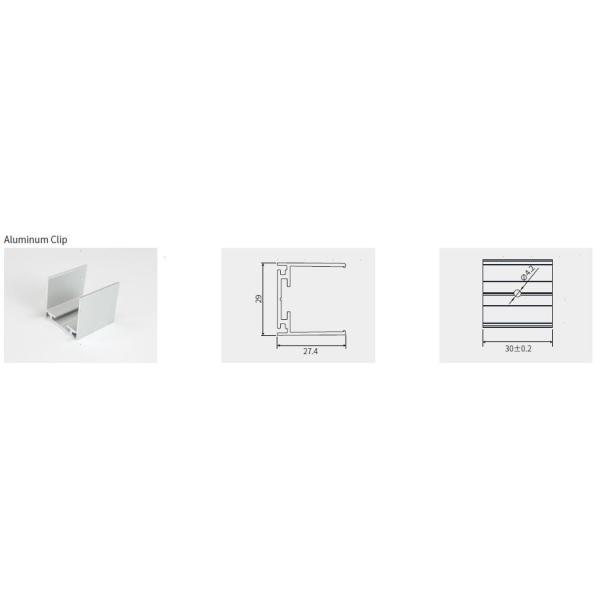

Mounting Clip

Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W

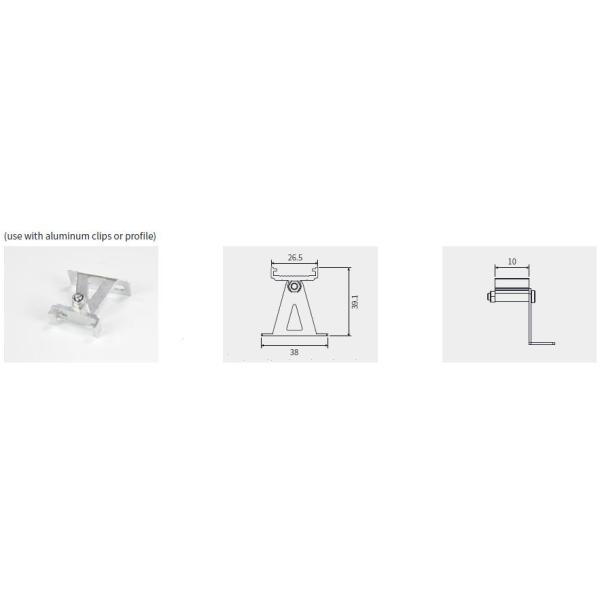

Mounting Bracket

Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W

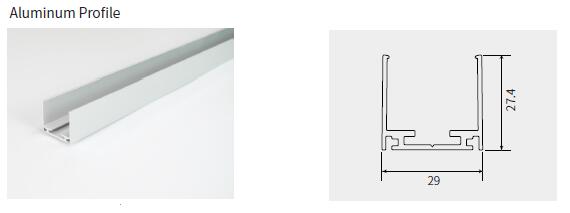

Mounting Aluminum Profile:

Free Bending Flexible Silicone Wall Washer Mono RGB RGBW 24W
