MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
MINI IP67 LED Handrail Lights with 24VDC Working Voltage and High Brightness 120 LM Output
Specifications
Brand Name :
COMI LIGHTING
Model Number :
S29-01-S-DC
Certification :
CE ,ROSH
Place of Origin :
CHINA
Payment Terms :
T/T, Western Union, D/P, D/A, L/C, MoneyGram
Delivery Time :
5-8 working days
Working Temperature :
DC 12V 24V
Light Source :
Aluminum Alloy or Stainless steel
Size :
Ø33xH39.5mm
Cct :
3000K-6500K
Cri :
80,CRI90+ available
Lumen :
100-120lumen
Installation :
Surface Mounted
Ip Rating :
IP65
Warranty :
2 Years(5 Years )
Description

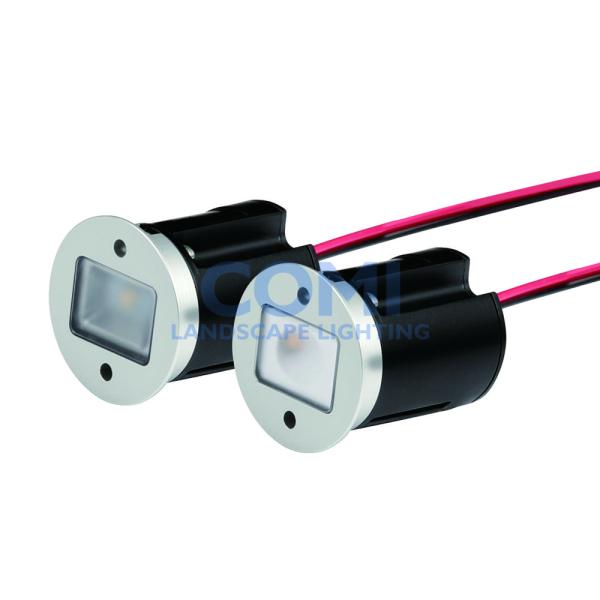

The mini LED spot light is designed for recessed mounted into square shaped or flat mounting surface stainless steel or aluminum alloy handrail, IP67 rated design and offers various design possibilities in architectural illumination and provides even and pleasant light distribution suitable for both indoor and outdoor, such as villas, parks, squares, garages and residential areas and etc.

Features and benefits:
▪ Dimensions: Ø33xH39.5mm.
▪ Flat front ring suitable for square handrail.
▪ Beam angle:
(1) Symmetrical light output: 90°;
(2) Asymmetrical light output: 65°
▪ 24VDC working voltage and 1.5W consuption.
▪ Light source: 1piece 2W Cree LED
▪ High brightness 114 LM(1.5W@3000K) output.
▪ Color Temperature: 3000K, 4000K, 5000K, 6000K.
▪ CRI: Ra>80 (CRI90+ available).
▪ Optional 3M waterproof connector for easy connection.
▪ Materials: Aluminum alloy and PC.
▪ Easy recessed mounted and maintenance.

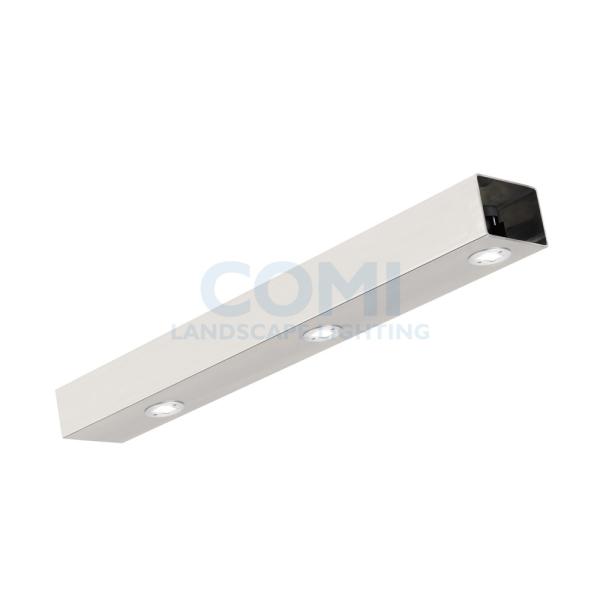

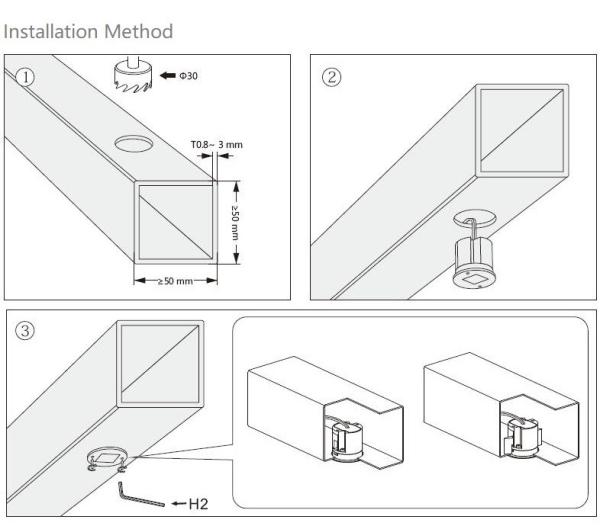

▪ Suitable for ≥L50*W50mm,wall thickness 0.8~3mm square handrail.
▪ Cut out: Ø30mm.
▪ Maximum connected power no more than 100W
▪ Average life time: 30000 hours@70% lumen depreciation.
▪ Protection class: IP67 Waterproof.
▪ Ambient Temperature: -20℃ ~ +45℃.
▪ 2 Years warranty.

Technical Parameters for IP67 LED Handrail spotlight for Indoor or Outdoor stair handrail lighting

Item No. Light source
Light
Color
 Beam Angle Working Mode Input
Power
(W)
Luminance
(LM)
IP
Rate
S29-01-S-DC
1×1.5W
CREE
LED
 Single
Symmetric:
90°
 Constant Voltage 24VDC 1.5W 100-120LM IP67
S29-01-A-DC
1×1.5W
CREE
LED
 Single
Asymmetric:
65°
 Constant Voltage 24VDC 1.5W 100-120LM IP67

Notes:
1. Single color: 2700K, 3000K, 4000K, 5000K, 6000K, 6500K,and etc.
2. Specifications are subjected to change without notice.
