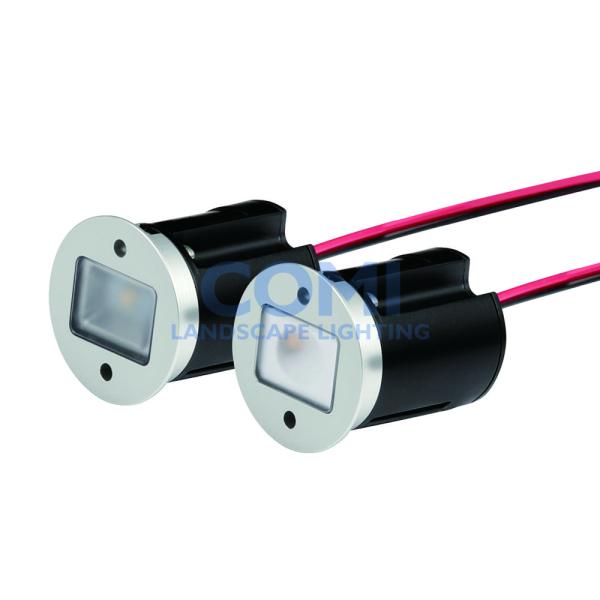

MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
MINI 2W 24VDC Voltage IP67 LED Handrail Lights For Indoor Or Outdoor Stair Lighting
Specifications
Brand Name :
COMI LIGHTING
Model Number :
S29-01-S-DC
Certification :
CE ,ROSH
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, Western Union, D/P, D/A, L/C, MoneyGram
Delivery Time :
5-8 working days
Installation :
Surface Mounted
Dimensions :
Ø33xH39.5mm
Voltage :
24v DC
Led Quantity :
1PCS
Power :
2W
Led Type :
1 piece 2W Cree LED
Luminous Flux :
114 LM
Cct :
3000K, 4000K, 5000K, 6000K
Beam Angle :
90°， 65°
Color :
Silver
CRI :
Ra>80
Light Color :
Warm White
Material :
Aluminum Alloy
Working Temperature :
-20℃ to 45℃
Warranty :
2 year
IP :
67
Description

Features and benefits:
▪ Dimensions: Ø33xH39.5mm.

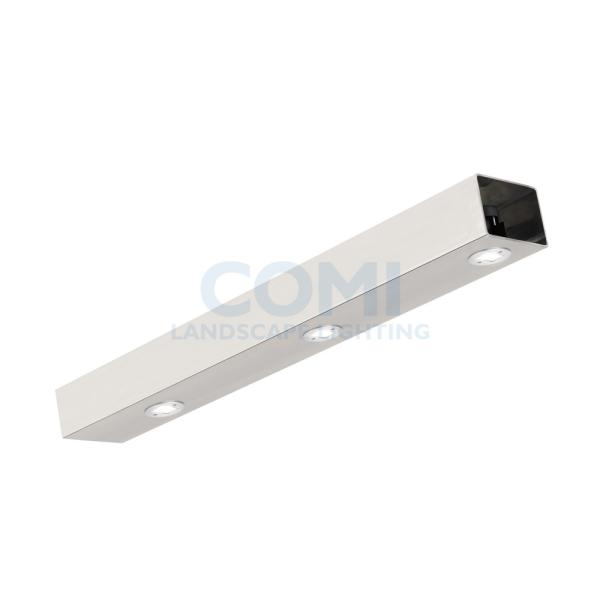

▪ Flat front ring suitable for square handrail.

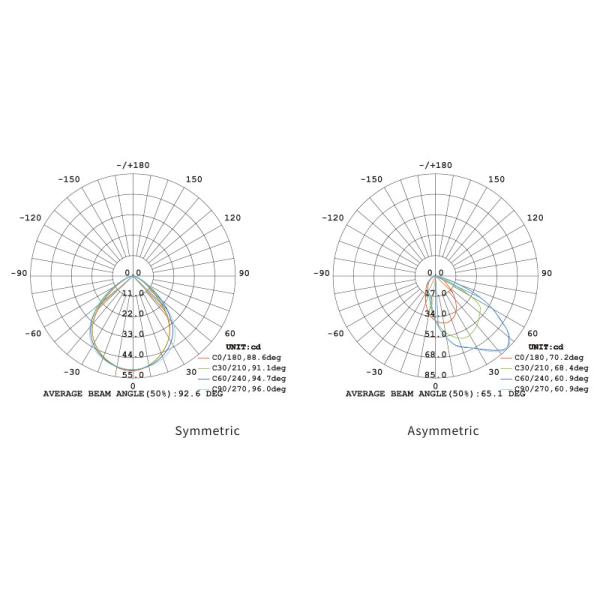

▪ Beam angle:
(1) Symmetrical light output: 90°;
(2) Asymmetrical light output: 65°
▪ 24VDC working voltage and 1.5W consuption.
▪ Light source: 1piece 2W Cree LED
▪ High brightness 114 LM(1.5W@3000K) output.
▪ Color Temperature: 3000K, 4000K, 5000K, 6000K.
▪ CRI: Ra>80 (CRI90+ available).
▪ Optional 3M waterproof connector for easy connection.
▪ Materials: Aluminum alloy and PC.
▪ Easy recessed mounted and maintenance.

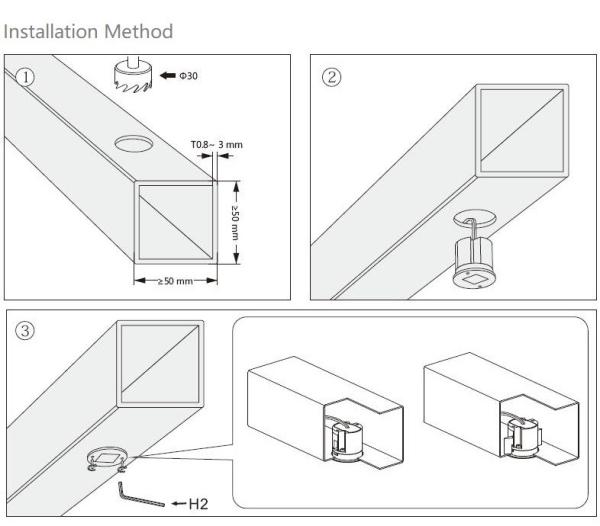

▪ Suitable for ≥L50*W50mm,wall thickness 0.8~3mm square handrail.
▪ Cut out: Ø30mm.
▪ Maximum connected power no more than 100W
▪ Average life time: 30000 hours@70% lumen depreciation.
▪ Protection class: IP67 Waterproof.
▪ Ambient Temperature: -20℃ ~ +45℃.
▪ 2 Years warranty.

Technical Parameters for IP67 LED Handrail spotlight for Indoor or Outdoor stair handrail lighting

Item No. Light source
Light
Color
 Beam Angle Working Mode Input
Power
(W)
Luminance
(LM)
IP
Rate
S29-01-S-DC
1×1.5W
CREE
 Single
Symmetric:
90°
 Constant Voltage 24VDC 1.5W 100-120LM IP67
S29-01-A-DC
1×1.5W
CREE
Single
Asymmetric:
65°
 Constant Voltage 24VDC 1.5W 100-120LM IP67

Notes:
1. Single color: 2700K, 3000K, 4000K, 5000K, 6000K, 6500K,and etc.
2. Specifications are subjected to change without notice
