Mini Size LED Handrail Lights M25 Symmetric&Asymmetric For Space-Saving Lighting
Mini Size LED Handrail Lights M25 Symmetric&Asymmetric For Space-Saving Lighting
Mini Size LED Handrail Lights M25 Symmetric&Asymmetric For Space-Saving Lighting
Mini Size LED Handrail Lights M25 Symmetric&Asymmetric For Space-Saving Lighting
Mini Size LED Handrail Lights M25 Symmetric&Asymmetric For Space-Saving Lighting
Mini Size LED Handrail Lights M25 Symmetric&Asymmetric For Space-Saving Lighting
Mini Size LED Handrail Lights M25 Symmetric&Asymmetric For Space-Saving Lighting
Mini Size LED Handrail Lights M25 Symmetric&Asymmetric For Space-Saving Lighting
Mini Size LED Handrail Lights M25 Symmetric&Asymmetric For Space-Saving Lighting
Mini Size LED Handrail Lights M25 Symmetric&Asymmetric For Space-Saving Lighting
Specifications
Brand Name :
COMI LIGHTING
Model Number :
M25-01-S-CC
Certification :
CE ,ROSH
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, Western Union, D/P, D/A, L/C, MoneyGram
Delivery Time :
5-8 working days
Installation :
Surface Mounted
Dimensions :
Ø29.5xH30.5mm
Voltage :
24v DC
Led Quantity :
1PCS
Power :
2W
Led Type :
1 piece 2W Cree LED
Luminous Flux :
114 LM
Cct :
3000K, 4000K, 5000K, 6000K
Beam Angle :
60°， 80°
Color :
Silver
CRI :
Ra>80
Light Color :
Warm White
Material :
316 Stainless steel
Working Temperature :
-20℃ to 45℃
Warranty :
2 year
IP :
67
Description

Features and Benefits:
▪ Dimensions: Ø29.5xH30.5mm(symmetric) and Ø29.5xH26.5mm(asymmetric)
▪ Arc front ring suitable for round handrail lighting.
▪ Beam angle:
(1) Symmetrical light output: 60°;
(2) Asymmetrical light output: 80°
▪ Power and Working mode for options:
(1) Constant voltage 24VDC (or 12VDC) input and power 1.5W/2W;
(2) Constant current 500mA 3VDC input and power 1.5W
▪ 1piece 1~2W Cree LED.
▪ High brightness 114 LM(1.5W@3000K) output.
▪ Color Temperature: 2700K~6500K, Green, Blue, Amber, RGB.
▪ CRI: Ra>80 (CRI90+ available).
▪ Materials: 316 Stainless steel housing and PMMA diffuser.
▪ Easy recessed mounted and maintenance.
▪ Suitable for dia. Ø48~63mm and thickness 1~1.5mm round handrail.
▪ Cut out: Ø27mm.
▪ Average life time: 30000 hours@70% lumen depreciation.
▪ Protection class: IP67 Waterproof.
▪ Ambient Temperature: -20℃ ~ +45℃.
▪ 2 Years warranty.

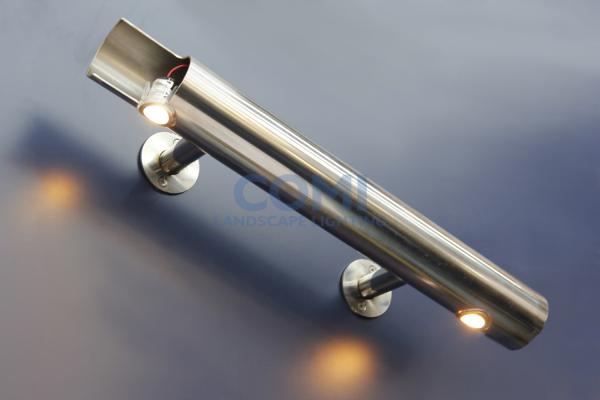

COMI Landscape Lighting mini recessed spotlight with arc front ring is designed for recessed mounted into round stainless steel or aluminum alloy handrail, available in single color or RGB full color, Support optional DMX512 control. IP67 rated design and offers various design possibilities in architectural illumination and provides even and pleasant light distribution suitable for both indoor and outdoor, such as villas, parks, squares, garages and residential areas and etc.

Technical Parameters for M25 LED Handrail Lights for Outdoor Handrail Lighting or Indoor Stair Lighting:

Item No. Light source
Light
Color
Beam
Angle
Working
Mode
 Input
Working
Current
(mA)
Power
(W)
Luminance
(LM)
Dimension
(mm)
IP
Rate
M25-01-S-CC
1×1.5W
CREE
Single
Symmetric:
60°
 Constant Current(CC) 3VDC
CC 350mA,
or CC 500mA,
1W@35mA;
1.5W@500mA
 100-120LM Ø29.5xH30.5 IP67
M25-01-S-DC
1×1.5W
CREE

Single
Symmetric:
60°
 Constant Voltage 24VDC 63mA 1.5W 100-120LM Ø29.5xH30.5 IP67
M25-01-S-DMX
1×2W
RGB 3-in-1
LED
 RGB Full Color
Symmetric:
60°
DMX512,
Constant Voltage
 24VDC
R=23mA
G=30mA
B=30mA
 2W 48LM Ø29.5xH30.5 IP67
M25-01-A-CC
1×1.5W
CREE
Single
Asymmetric:
80°
 Constant Current(CC) 3VDC
CC 350mA,
or CC 500mA
1W@35mA;
1.5W@500mA
 100-120LM Ø29.5xH26.5 IP67
M25-01-A-DC
1×1.5W
CREE
Single
Asymmetric:
80°
 Constant Voltage 24VDC 63mA 1.5W 100-120LM Ø29.5xH26.5 IP67
M25-01-A-DMX
1×2W
RGB 3-in-1
LED
 RGB Full Color
Asymmetric:
80°
DMX512,
Constant Voltage
 24VDC
R=23mA
G=30mA
B=30mA
 2W 48LM Ø29.5xH30.5 IP67

Notes:
