Low Consumption LED Lane Control Signs Free Standing For Driving Signs
Low Consumption LED Lane Control Signs Free Standing For Driving Signs
Specifications
Brand Name :
YAHAM
Model Number :
VTS-YHT-LCS
Certification :
CE /EN12966
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T (LC) FOB Shenzhen
Supply Ability :
2000pcs per month
Delivery Time :
40 working days after received your payment
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case and EPE for outer packing
Product Name :
Energy efficient lane control sign
Size Of Panel :
700*650mm
IP protection :
IP65
Standard :
CE/ En12966
COLOR :
Red cross; Green arrow.
Application :
Tunnel, highway toll station, blocked and traffic re-directed road.
Feature :
Super thin ; High brightness; Low consumption; Long lifespan more than 10 years; Easy operation.
Description

Lane Control Sign are designed and manufactured in full accordance with Hong Kong traffic signs standards.

Specifications:

Technical Parameter Type YHT-LCS-II
Color configuration Red circle,amber number and corner light
Cabinet Size 1400(W) mm × 750(H) mm
Wigwag Size 200mm outer diameter
Display Area 700(W)mmX600(H)mm
Cabinet material Alumium
Weight 35KG
View angle 30°/150°
Dimming Level 32
Electric Protection Overload protection and short circuit protection
Installation Gantry-mounted
Maintenance Back access
Operating Temperature -15°C~65°C
Operating Relative Humidity 95%RH(Max.)
IP Rating IP65
Power Consumption(MAX) 100W
Communication Protocols NTCIP

Description:

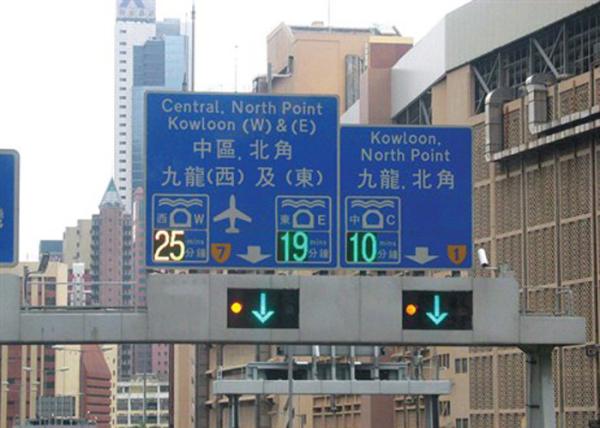

1. Variable Traffic Signs as “Lane Control Sign” will have the following display functions:Steady green arrow indicating vehicle traffic may travel in lane, arrow to the left or arrow to the right to divert the traffic in case of a lane occupancy because of accident or maintenance.

Steady red indicating vehicle traffic shall not travel in or enter lane.

Steady white exclamation sign in red triangle for driver warning.

2. Each type of signs shall be divided into two groups as in tunnel and out of tunnel.

3. change lane allocations or function during works or incident

4.restrict lane use to facilitate safe enforcement operations where interception sites are provided .

5. Low consumption and energy saving.

6. Available for customized size according to customer requirement.


Feature

1. LED panel can show four different pictures: Green arrow, Red cross, Yellow arrow for Left side and Yellow arrow for right side.


2. High brightness, low power consumption, and anti-UV Led adopt.


3. Front door maintenance service heavy cabinet adopted, and easy maintenance.


4. Automatic Brightness Adjustment
Protocol : TCP/IP , NTCIP , UTMC etc.

5. structural waterproofing, using a self-sealing strip and waterproof clamping hose;

6. beautiful appearance;

7. surface spray matte black, non-reflection, anti-corrosion;

Applications:

Tunnel; Highway toll station; special blocked and traffic re-directed road.
