640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
Specifications
Brand Name :
SMART LED
Model Number :
P1.25 LED Display 640*480mm
Certification :
CE,ROSH,FCC,EMC
Place of Origin :
China
MOQ :
no requirement
Payment Terms :
T/T
Supply Ability :
no requirement
Delivery Time :
15 Days (Custom-made)
Packaging Details :
Wooden package
Item :
P1.25 LED Display 640*480mm
LED Lamp :
Kinglight SMD 1010
Dot Density :
640000 led
Driving Method :
1/64 Scan
Cabinet Size :
640mmx480mm
Resolution :
512x384
Protective Grade :
IP33
Refresh Rate :
>3840Hz
Brightness :
1000mcd
Cabinet Materials :
Aluminum
Description

640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory

P1.25 HD LED Display Indoor Size: 640*480MM

Applications

640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory

Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

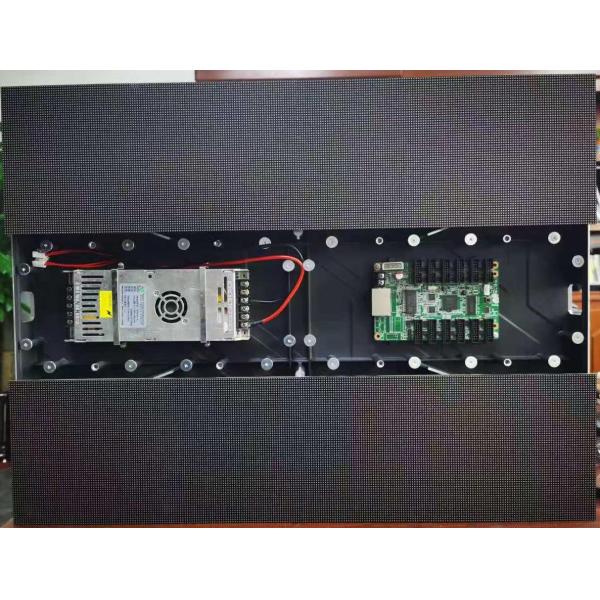

* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen FactoryPH1.25mm LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No. Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
1 Red LED (Epistar DICE) 800-1000 140º/120º 620-630nm 25℃,20mA
2 Green LED(Epistar DICE) 1300~1500 140º/120º 520-535nm 25℃,20mA
3 Blue LED (Epistar DICE) 250~500 140º/120º 465-475nm 25℃,20mA
Module Specifications
1 Pixel Pitch 1.25mm 640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
2 Pixel Configuration 3-in-1, SMD 1010
3 Module Size 320mm X 160mm
4 Module Resolution Size 256x128led
5 Module Pixles 32760 led
6 Module power 5v9A 45W

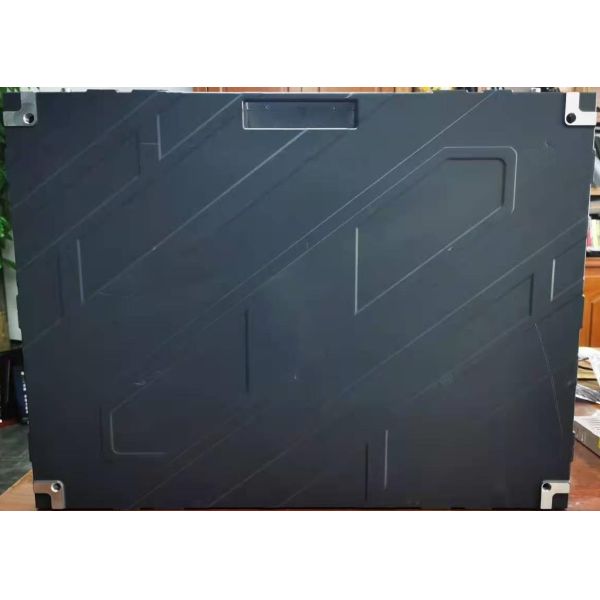

Cabinet Specification
1 Cabinet Size(WXHXD)

640mmLx480mmHx60mmD

640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
2 Cabinet Resolution 512x384 pixels
3 Module Quanity 6 pcs
4 Cabinet Pixels 196608 dots
5 Pixel Density 640000 dots/m2
6 Average Power Consumption 100W/cabinet
7 Max. Power Consumption 300W/cabinet
8 Material Alum
9 Cabinet Weight 6 KG
10 Protective Grade IP33
Screen Parameters
1 Whole screen size 11.52m*1.92m 22.11sqm

640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory

640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory

640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
2 LED Display piexl 9216*1536
2 Cabinet quantity 72pcs
3 Brightness ≥1000 mcd/㎡
4 Brightness(Max./Min.) 1.2:1
5 Driving Method 1/64 Scan
6 View Angle Horizontal 140° Vertical 120°
7 Optimal Viewing Distance 2M
8 Brightness Control Red,Green and Blue 256 Grade/Each
9 Refresh rate >3840hz
10 Frame Frequency 60Hz
11 Input Voltage AC220V/50Hz or AC110V/60Hz
12 Defects Rate ≤0.00001
13 Power Consumption Max.: 21600w
Average: 6480w
14 Screen weight ≤432kg
15 MTBF >10,000 hours
16 Life span ≥100,000 hours
17 Module Display Brightness Uniformity <2%
18 Earth Leakage Current <3mA
19 Protective Grade IP33
20 Temperature-operating ﹣25℃～45℃
21 Humidity-operating 10%～95%
22 Controlling system LINSN
23 Operating System WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included.
2. 30% Down Payment before Production, Balance before shippment
3. Lead time:15 working Days against down Payment
4. Two Years Maintain Replacement free.

640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory

640mm*480mm SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall Shenzhen Factory
