Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory
Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory
Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory
Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory
Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory
Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory
Specifications
Brand Name :
Smart LED
Model Number :
P1.875 2440*240
Certification :
CE,ROSH,FCC,EMC
Place of Origin :
China
MOQ :
no requirement
Payment Terms :
T/T
Supply Ability :
no requirement
Delivery Time :
2-3 Days
Packaging Details :
Paper box package
Item :
P1.875 LED module
LED Lamp :
SMD 1515
Dot Density :
284444
Resolution :
128*128
Protective Grade :
IP33
Refresh Rate :
3840Hz
Brightness :
1000mcd
Driving Method :
1/32 Scan
Module weight :
400g
Guarantee :
2Years
Description

Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory

P1.875 240mm*240mm LED Module -Easy install Play video ,Text,Photo 2Years Guarantee

Applications

Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory

Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen FactoryPH1.875mm LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No. Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
1 Red LED (Epistar DICE) 800-1000 140º/120º 620-630nm 25℃,20mA
2 Green LED(Epistar DICE) 1300~1500 140º/120º 520-535nm 25℃,20mA
3 Blue LED (Epistar DICE) 250~500 140º/120º 465-475nm 25℃,20mA

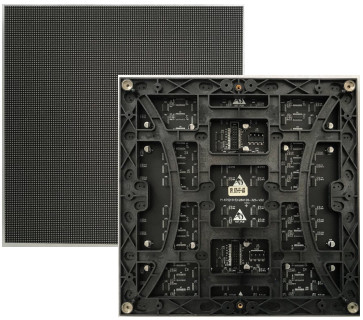

Module Specifications
1 Pixel Pitch 1.875mm Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory
2 Pixel Configuration 3-in-1, SMD 1515
3 Module Size 320mm*160mm
4 Module Resolution 128 * 128
5 Module connecting HUB75
6 Module power 5V7.2A 36W

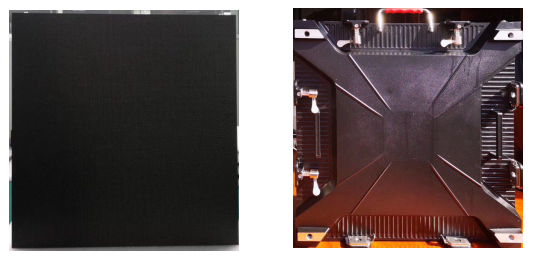

Cabinet Specification
1 Cabinet Size(WXHXD) 480mmLx480mmHx80mmD

Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory
2 Cabinet Resolution 256x256
3 Module Quanity 4 pcs
4 Cabinet Pixels 65536
5 Pixel Density 284444 pixel/m2
6 Average Power Consumption 65W/cabinet
7 Max. Power Consumption 200W/cabinet
8 Material Alumium
9 Cabinet Weight 10 KG
10 Protective Grade IP33
Screen Parameters
1 Whole screen size



Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory

Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory

Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory
2 LED Display piexl
2 Cabinet quantity
3 Brightness ≥1000 mcd/㎡
4 Brightness(Max./Min.) 1.2:1
5 Driving Method 1/32 Scan
6 View Angle Horizontal 140° Vertical 120°
7 Optimal Viewing Distance 6M
8 Brightness Control Red,Green and Blue 256 Grade/Each
9 Refresh rate >3840HZ
10 Frame Frequency 60Hz
11 Input Voltage AC220V/50Hz or AC110V/60Hz
12 Defects Rate ≤0.00001
13 Power Consumption Max.: 800W/㎡
Average: 300W/㎡
14 Screen weight ≤35kg/㎡
15 MTBF >10,000 hours
16 Life span ≥100,000 hours
17 Module Display Brightness Uniformity <2%
18 Earth Leakage Current <3mA
19 Protective Grade IP33
20 Temperature-operating ﹣25℃～45℃
21 Humidity-operating 10%～95%
22 Controlling system Nova
23 Operating System WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included.
2. 30% Down Payment before Production, Balance before shippment
3. Lead time:15 working Days against down Payment
4. Two Years Maintain Replacement free.

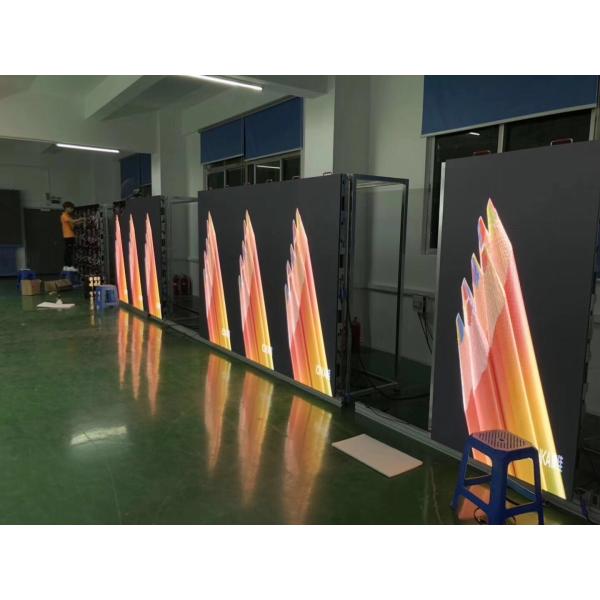

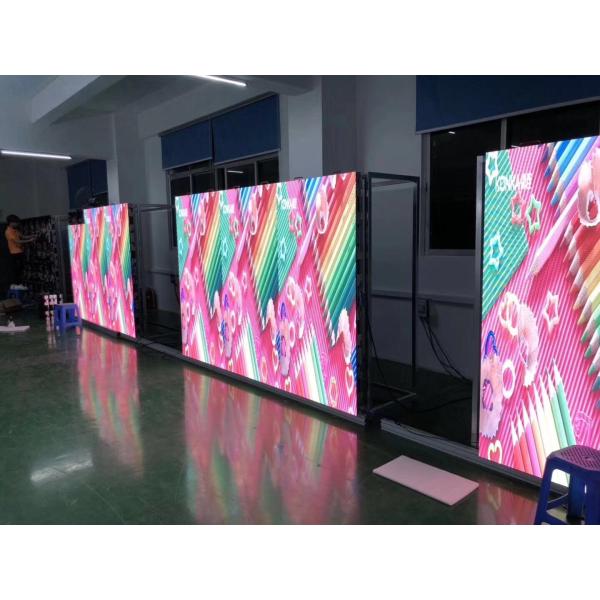

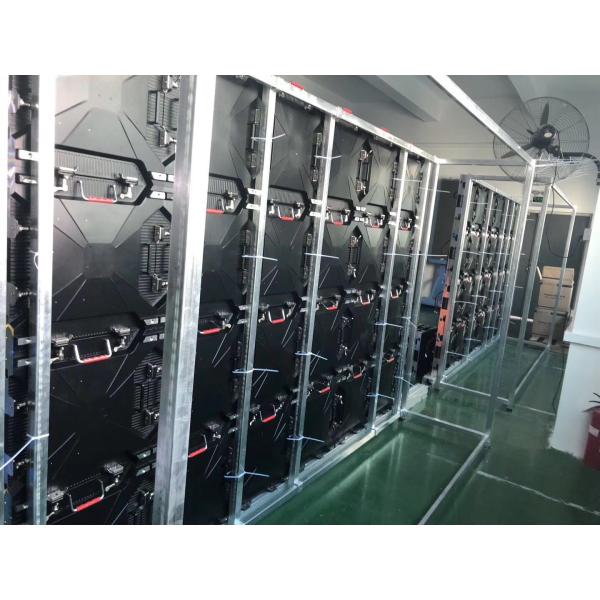

Production line

Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory

Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory

Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory

Packaging and shipping

Packing:1.Paper box packing and Water proof packing
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.

Text Photo Playable Indoor LED Video Screen 240mm*240mm With 2 Years Guarantee Shenzhen Factory
