P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
Specifications
Brand Name :
SMART LED
Model Number :
P5 Indoor LED Display
Certification :
CE,ROSH,FCC
Place of Origin :
China
MOQ :
no requirement
Payment Terms :
T/T
Supply Ability :
no requirement
Delivery Time :
12 Days
Packaging Details :
Wooden package,
Item :
P5 SMD Indoor Full color
LED Lamp :
SMD
Module Size :
320mm*160mm
Module Resolution :
64*32
Driving method: :
1/16 Scan
Dot Density :
40000 led/Sqm
Protective Grade :
IP33
Refresh rate :
>1920Hz
Brightness :
1500mcd
Project location :
Ghana
Description

P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory

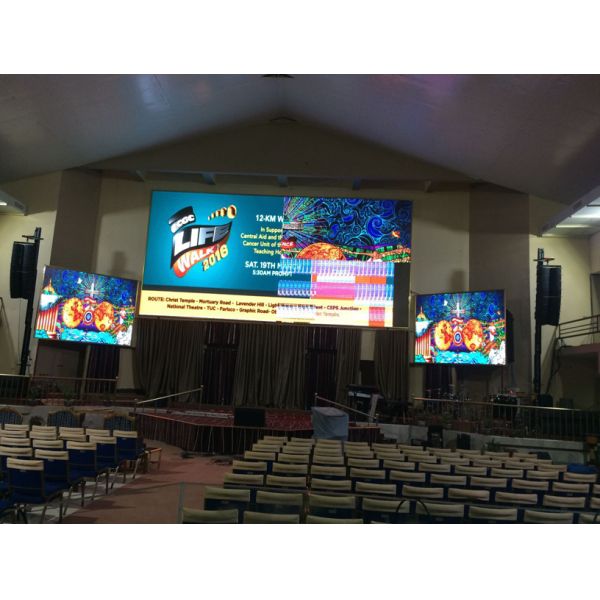

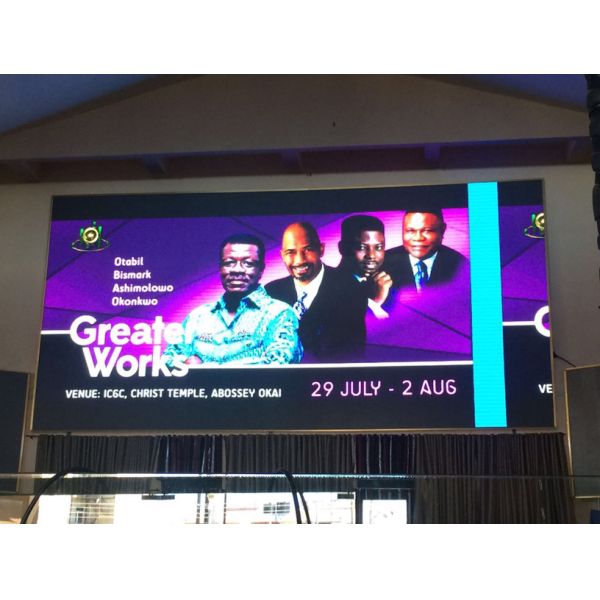

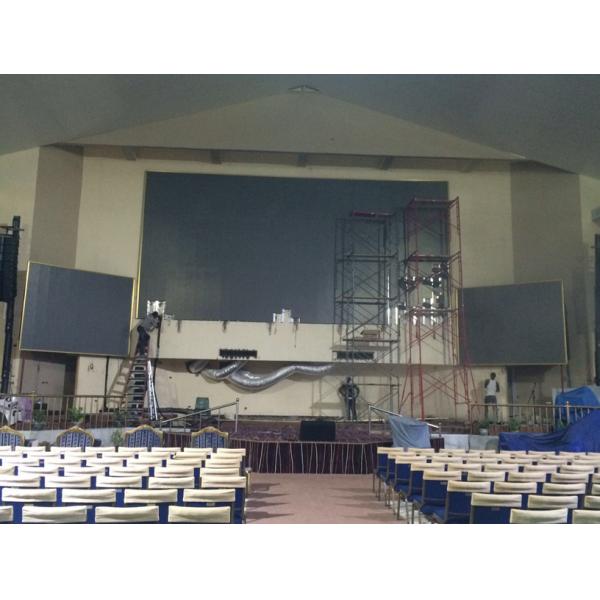

P5 Indoor Display HD-LED Video screen 3528lamp 1920Hz Magnet Install (Ghana Project)

Applications

P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory

Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory

P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen FactoryPH5mm LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No. Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
1 Red LED (Epistar DICE) 800-1000 140º/120º 620-630nm 25℃,20mA
2 Green LED(Epistar DICE) 1300~1500 140º/120º 520-535nm 25℃,20mA
3 Blue LED (Epistar DICE) 250~500 140º/120º 465-475nm 25℃,20mA
Module Specifications
1 Pixel Pitch 5mm P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
2 Pixel Configuration 3-in-1, SMD 3528
3 Module Size 320mm X*160mm
4 Module Resolution 64*32
5 Hub connecting HUB75
6 Module power 5V3.6A 18W
Screen Parameters
1 Whole screen size 8m*3.68m = 29.44sqm

P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory

P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
2 LED Display piexl 1600 * 736
2 Module quantity 25pcs*23pcs =575 pcs
3 Brightness ≥1500 mcd/㎡
4 Brightness(Max./Min.) 1.2:1
5 Driving Method 1/16 constant current
6 View Angle Horizontal 140° Vertical 120°
7 Optimal Viewing Distance 3M
8 Brightness Control Red,Green and Blue 256 Grade/Each
9 Refresh rate >1920HZ
10 Frame Frequency 60Hz
11 Input Voltage AC220V/50Hz or AC110V/60Hz
12 Defects Rate ≤0.00001
13 Power Consumption Max.: 800W/㎡
Average: 300W/㎡
14 Screen weight ≤20kg/㎡
15 MTBF >10,000 hours
16 Life span ≥100,000 hours
17 Module Display Brightness Uniformity <2%
18 Earth Leakage Current <3mA
19 Protective Grade IP33
20 Temperature-operating ﹣25℃～45℃
21 Humidity-operating 10%～95%
22 Controlling system LINSN
23 Operating System WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included.
2. 30% Down Payment before Production, Balance before shippment
3. Lead time:15 working Days against down Payment
4. Two Years Maintain Replacement free.

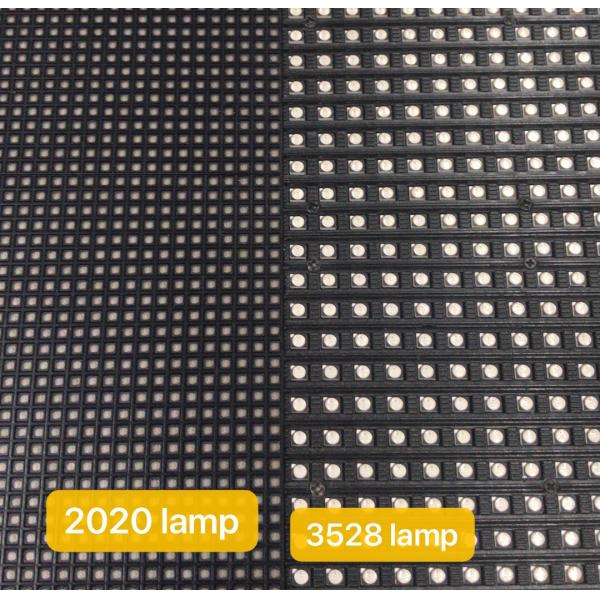

3528Lamp and 2020Lamp

P5 1920Hz LED Video Wall Screen SMD 3528 Lamps Full Color Magnet Install Shenzhen Factory
