P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory
P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory
P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory
P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory
P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory
P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory
Specifications
Brand Name :
SMART LED
Model Number :
P6 SMD Outdoor Display
Certification :
CE,ROSH,FCC,EMC
Place of Origin :
China
MOQ :
no requirement
Payment Terms :
T/T
Supply Ability :
no requirement
Delivery Time :
15Days-20Days
Packaging Details :
Wooden package
Item :
P6 SMD Outdoor Display
LED Lamp :
SMD 3535 Kinglight Lamp
Dot Density :
10000
Resolution :
160*160
Protective Grade :
IP65
Refresh Rate :
>1920Hz
Brightness :
6500mcd
Cabient Materials :
Iron
Description

P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory

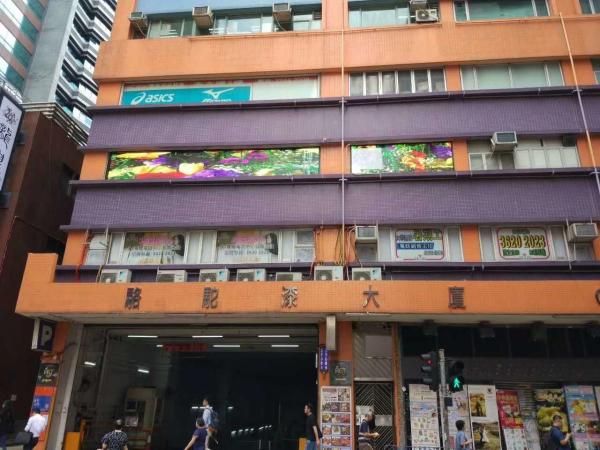

Simple cabinet P6 SMD Outdoor LED Screen Project Size:5.76m*2.88m Cabinet size:960mm*960mm

Applications

P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory

Product Features

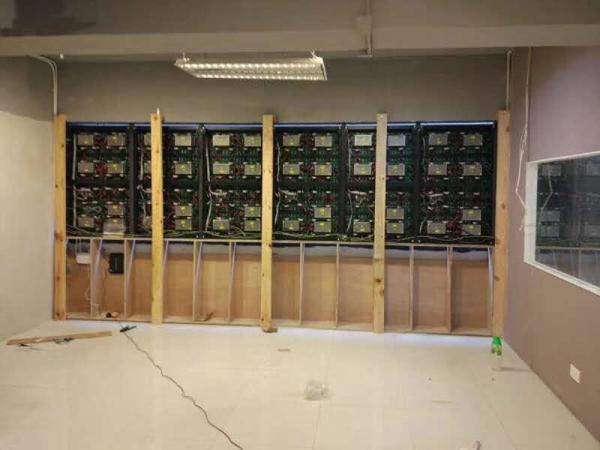

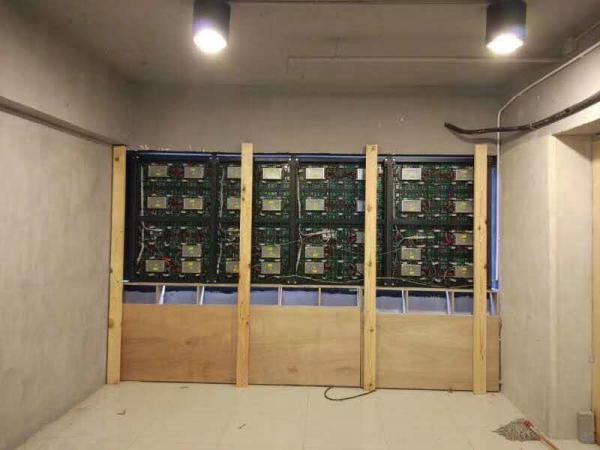

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen FactoryPH8 LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No. Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
1 Red LED (Epistar DICE) 800-1000 140º/120º 620-630nm 25℃,20mA
2 Green LED(Epistar DICE) 1300~1500 140º/120º 520-535nm 25℃,20mA
3 Blue LED (Epistar DICE) 250~500 140º/120º 465-475nm 25℃,20mA
Module Specifications
1 Pixel Pitch P6

P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory
2 Pixel Configuration 3-in-1, SMD 3535
3 Module Size 192mm X 192mm
4 Module Resolution Size 32x32 led
5 Module Pixles 1024 led
6 Module power 5v6A 30W
Cabinet Specification
1 Cabinet Size(WxHxD) 960mm*960mmHx150mmD P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory
2 Cabinet Resolution 160*160 pixels
3 Module Quanity 25 pcs
4 Cabinet Pixels 25600 dots
5 Pixel Density 27777 dots/m2
6 Average Power Consumption 240W/cabinet
7 Max. Power Consumption 800W/cabinet
8 Material Iron
9 Cabinet Weight 30 KG
10 Protective Grade IP65
Screen Parameters
1 Whole screen size 5.76m*2.88m = 16.58 sqm

P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory

P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory


P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory
2 LED Display piexl 960 * 480
2 Cabinet quantity 6pcs*3pcs =18pcs
3 Brightness ≥6500 mcd/㎡
4 Brightness(Max./Min.) 1.2:1
5 Driving Method 1/8 Scan
6 View Angle Horizontal 140° Vertical 120°
7 Optimal Viewing Distance 10M
8 Brightness Control Red,Green and Blue 256 Grade/Each
9 Refresh rate >1920HZ
10 Frame Frequency 60Hz
11 Input Voltage AC220V/50Hz or AC110V/60Hz
12 Defects Rate ≤0.00001
13 Power Consumption Max.: 1100W/㎡
Average: 300W/㎡
14 Screen weight ≤35kg/㎡
15 MTBF >10,000 hours
16 Life span ≥100,000 hours
17 Module Display Brightness Uniformity <2%
18 Earth Leakage Current <3mA
19 Protective Grade IP65
20 Temperature-operating ﹣25℃～45℃
21 Humidity-operating 10%～95%
22 Controlling system LINSN
23 Operating System WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included.
2. 30% Down Payment before Production, Balance before shippment
3. Lead time:15 working Days against down Payment
4. Two Years Maintain Replacement free.

P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory

Out Producing department

P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory

Packaging and shipping

Packing:1.Wooden case
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.

P6 SMD 3535 Outside LED Video Wall Panels With 960mm*960mm Simple Cabinet Shenzhen Factory
