Specifications
Brand Name :
COREMAN
Model Number :
CM-OS-P8-1/5S-320mm x 160mm
Certification :
CE,Rohs, FCC, CCC, UL, CAS，SASO
Place of Origin :
China
MOQ :
1pcs
Price :
10.5~12.8USD
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
50,000pcs/ month
Delivery Time :
5-10 days
Packaging Details :
Cartoon case, wooden case
Color :
RGB
Funciton :
text,picture,animation, video
chip :
Silan,Epistar,opto,Nicha,Cree(optional)
Input :
5V
LED module size :
320mm x 160mm
Module resolution :
40 x 20
LED chip :
SMD3535
IC :
MBI5124, ICN2038S, MBI5153 etc
Scan :
1/5S
Hub interface :
hub75
Description

Product feature :

1) IP65 high waterproof standard and Anti-UV design

2) Standard size 320mm x 160mm led module, can adapt to 640x640 and 960x960 led cabinet

3) High refresh rate and uniform color , have good visual effect

4) Brightness adjustable automatically to avoid light pollution

5) Front and access are available

Specification:

Pixel pitch 8mm 8mm
Module size 256mm*128mm 320mm*160mm
Resolution of module 32*16 dots 40*20dots
Density of pixel 15,625 dots/m2 15,625 dots/m2
LED Size SMD3535 SMD3535
Pixel configuration 1R1G1B 1R1G1B
Best viewing distance ≥8m ≥8m
Horizontal viewing angle 140º 140º
Viewing angle 140º 140º
Driving method 1/4 scan 1/5 scan
Brightness ≥7000cd/m2 ≥5500cd/m2
Refresh rate 1920Hz~3840Hz 1920Hz~3840Hz
IP grade IP65 IP65
Max power consumption 35W/pcs 40W/pcs
Avg power consumption 11.7W/pcs 13.3W/pcs
Input voltage DC5V DC5V
Storage temperature —40°C~65°C —40°C~65°C
Working temperature —30°C~55°C —30°C~55°C
MTBF ≥10,000 hours ≥10,000 hours
Life span ≥100,000hours ≥100,000hours
Control system Nova/Linsn/Colorlight/DBstar etc Nova/Linsn/Colorlight/DBstar etc
Specification might be slightly different based on different components

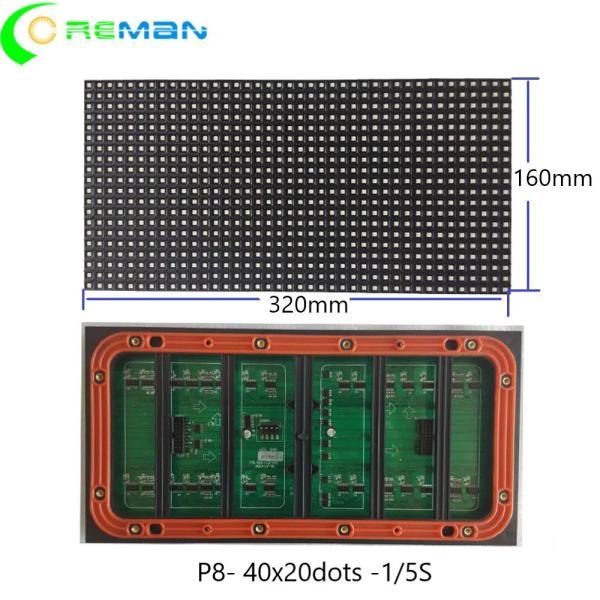

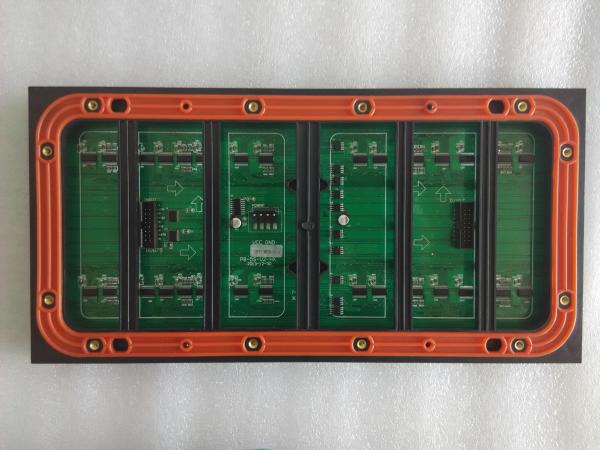

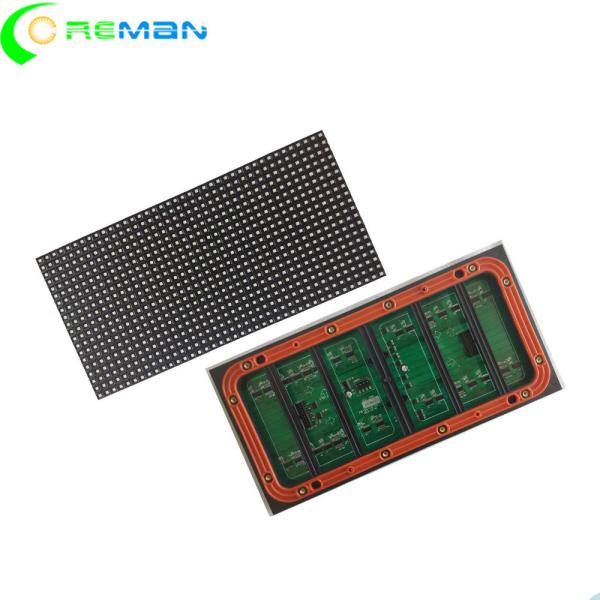

Detail picture of led module

P8-320mm x 160mm -40x20 dots-1/5S

5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available

5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available

5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available


Cabinet detail and feature


Rental cabinet size : 640mm(W) x640mm(H) ,960mm(W) x 960mm(H)

Fixing cabinet size : Customized , Standard size is 960mm(W) x 960mm (H)

Rental cabinet fature

Ultra-light, it is 40% of the regular steel cabinet, easy to carry and move

Super slim,thickenss is 60~75cm, the traditional cabinet thickness is 120cm

High strength: support the weight of 300kg through tension test.

Easy installation: installed by quick lock for 20s only

High precision: seamless splicing though CNC machining

High universality: can be processed according to module drawing,used for outdoor and indoor

Rental type cabinet can be used for rental and fixing type led display), but fixing type cabinet can't be used for rental type display.

640mm(W) x 640mm(H)

5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available

960mm(W) x 960mm(H)

5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available

Rental type display Installation : hanging type / standing on the floor


5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available


Fxing type led display

5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available

5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available

Connection diagram

(Video processor is not must, it depends on the size of the display)



5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available

Test and aging effect

5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available


Application:

Shopping center,stage concert background, festival celebration , wedding, exhibition, meeting room, CCTV center airport etc

5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available

5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available5V Smd3535 P8 LED Module 320mmx160mm Outside 40x20 Front Access Available

Our service

1) Can provide the installation draw and send the engineer to install the led display according to negotiation

2)Your inquiry related to our products or price will be replied in 24hrs

3)OEM&ODM,any your customized lightings we can help you to design and put into product

4)Distributoership are offered for your unique design and some our current models

5)Protection of your sales area,ideas of design and all your private information

6)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
