Specifications
Brand Name :
COREMAN
Model Number :
CM-OS-P5-1/8S-320mm x 160mm
Certification :
CE,Rohs, FCC, CCC, UL, CAS，SASO
Place of Origin :
China
MOQ :
1pcs
Price :
17.9~19.9
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
50,000pcs/ month
Delivery Time :
5-10 days
Packaging Details :
Cartoon case, wooden case
Color :
RGB
Funciton :
text,picture,animation, video
chip :
Silan,Epistar,opto,Nicha,Cree(optional)
Input :
5V
LED module size :
320mm x 160mm
Module resolution :
64 x 32
LED chip :
SMD2727
Scan :
1/8S
Description

Product feature :

1) High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.

2) No mosaic due to excellent flatness and nice uniformity of light-emitting.

3) Wide viewing angles and the horizontal angle can reach 140° , The images effect will not change largely in the range.

4) Good heat dissipation capability because of the unique design of vent fan (liking shutter).

5) Environmental-friendly and energy-saving.

Specification:

Pixel pitch 5mm 5mm
Module size 160mm*160mm 320mm*160mm
Resolution of module 32*32 dots 64*32 dots
Density of pixel 40,000 dots/m2 40,000 dots/m2
LED Size SMD2727 SMD2727
Pixel configuration 1R1G1B 1R1G1B
Best viewing distance ≥5m ≥5m
Horizontal viewing angle 140º 140º
Viewing angle 140º 140º
Driving method 1/8 scan 1/8 scan
Brightness ≥6500cd/m2 ≥6500cd/m2
Refresh rate ≥1920Hz ≥1920Hz
IP grade IP65 IP65
Max power consumption 26.5W/pcs 50W/pcs
Avg power consumption 8.8W/pcs 16.7W/pcs
Input voltage DC5V DC5V
Storage temperature —40°C~65°C —40°C~65°C
Working temperature —30°C~55°C —30°C~55°C
MTBF ≥10,000 hours ≥10,000 hours
Life span ≥100,000hours ≥100,000hours
Control system Nova/Linsn/Colorlight/DBstar etc Nova/Linsn/Colorlight/DBstar etc
Specification might be slightly different based on different components

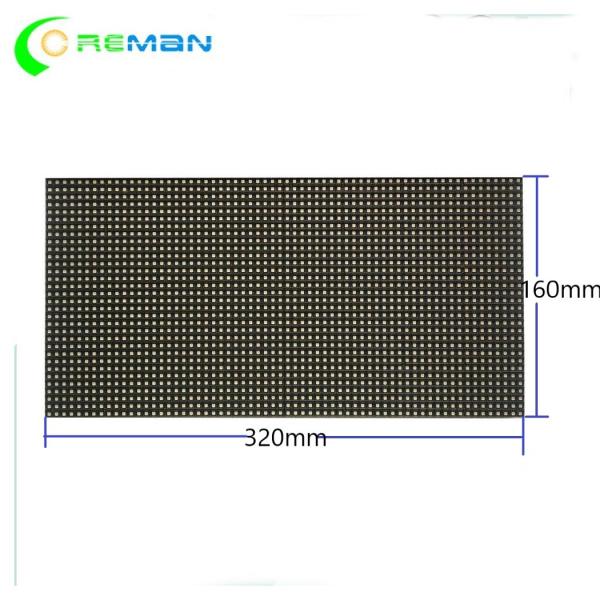

Detail picture of led module

P5-320mm x 160mm-64x32-1/8S

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel DensityExterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

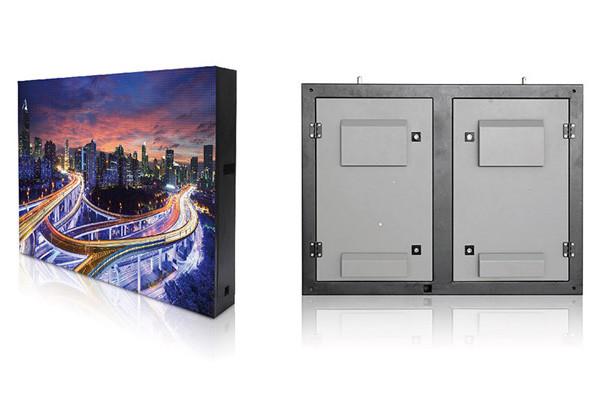

Cabinet detail and feature


Rental cabinet size : 640mm(W) x 640mm(H) or 960mm(W) x 960mm(H)

Fixing cabinet size : Customized , Standard size is 960mm(W) x 960mm (H)

Rental cabinet fature

Ultra-light, it is 40% of the regular steel cabinet

Super slim,thickenss is 60~75cm, the traditional cabinet thickness is 120cm

High strength: support the weight of 300kg through tension test.

Easy installation: installed by quick lock for 20s only

High precision: seamless splicing though CNC machining

High universality: can be processed according to module drawing,used for outdoor and indoor

Easy maintenance: can be maintained form front side

Rental type cabinet can be used for rental and fixing type led display), but fixing type cabinet can't be used for rental type display.

640mm(W) x 640mm(H)

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel DensityExterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

960mm(W) x 960mm(H)

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel DensityExterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

Rental type display Installation : hanging type / standing on the floor


Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density


Fxing type led display

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

Connection diagram

(Video processor is not must, it depends on the size of the display)



Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

Test and aging effect

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel DensityExterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel DensityExterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density


Application:

Shopping center,stage concert background, festival celebration , wedding, exhibition, meeting room, CCTV center airport etc

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

Exterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel DensityExterior P5 LED Module Panel 16x32cm Smd2727 Hub75 40,000 Dots/M2 Pixel Density

Our service

1)Your inquiry related to our products or price will be replied in 24hrs

2)OEM&ODM,any your customized lightings we can help you to design and put into product

3)Distributoership are offered for your unique design and some our current models

4)Protection of your sales area,ideas of design and all your private information

5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
