P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light
P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light
Specifications
Brand Name :
Coreman
Model Number :
CM-TGM-FS
Certification :
CE,ROHS,SGS,FCC
Place of Origin :
China
MOQ :
1 sqm
Price :
280-1260USD per sqm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
5000sqm per month
Delivery Time :
3-12days
Packaging Details :
carton case,wooden case,flight case
Item :
transparency indoor outdoor led display
LED encapsulation :
hongsheng,kinglight,nationstar
led chip :
epistar,Cree,silan
type :
fixed installation or rental
certificate :
CE,ROHS,SGS,FCC,etc
display function :
text,picture,animation,video
warranty time :
3 years
package :
wooden case flight case
cabinet size :
1280X640,1024X768mm,640x640mm,960X960mm,etc
Description

full color LED Screen Transparent Glass Led Display window stage led wall P8 P10 P12

Features

High transparency------Maximum permeability more than 72%.

Save energy and environment friendly------The average power

consumption less than 80W/m2,high light LED bead,same brightness

,low power consumption, good for environment as well.

Simple and elegant------Simple structure,use less cables,the cables

of power supply and signal are be intergrated.

1. Competitive Price
We are middle-sized Chinese local factory, total 5 floors.

The first floor is for display testing room.

The second floor is SMT machine room.

The Third floor is for indoor led module

The Forth floor is for outdoor led module.

The fifth floor is for office

Besides, we control our cost very well and don't have huge management

cost like top companies,

so that we can give the real benefits to our customers.

2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top LED display factory

since 2009, we have very close and strategic

relationship with the raw material providers, which support the stable quality o

f our products.

Model
P3.75-6.67
P3.75-8
P5:-.67
P5-8
P7.5-8
P10
P16
P20
Pixel Pitch
3.75 x 6.67mm
3.75 x 8mm
5 x 6.67mm
5 x 8mm
7.5 x 8mm
10mm
16mm
20mm
Scan Mode
1/8
1/6
1/4
1/3
1
Pixel Density
40000dots/㎡
33333dots/㎡
30000dots/㎡
25000dots/㎡
16667dots/㎡
10000dots/㎡
3906dots/㎡
2500dots/㎡
Pixel Configuration
1921
3528
Module Resolution
128 x 48
128 x 40
96 x 48
96 x 40
64 x 40
48 x 32
30 x 20
20 x 16
Module Size
480 x 320mm / 960 x 320mm
480 x 320mm
Cabinet Resolution
256 x 96
256 x 80
192 x 96
192 x 80
128 x 80
96 x 64
60 x 40
40 x 32
Cabinet Size
964 x 640mm / 1920 x 640mm
960 x 640 mm
Brightness
5500-6000CD/㎡
Refresh Rate
1920Hz
Packing
Plywood Case / Flight Case
Transparency Rate
72%
75%
72%
75%
75%
80%
83%
86%
Weight per ㎡
11KG
10.2KG
10KG
9.5KG
9KG
8KG
7.2KG
6.5KG
Viewing Angle
140°(H) / 140°(V)
Power Consumptionper ㎡
Max 690W, Min 207W
Max 670W, Min 201W
Max 696W, Min209W
Max 670W, Min203W
Max 670W, Min 204W
Max 650W, Min 195W
Max 650W, Min 218W
Max 650W, Min 218W
Signal Input
HUB-BLP-14C
HUB-BLP-64X1-V1.0
HUB-BLP-V3.0

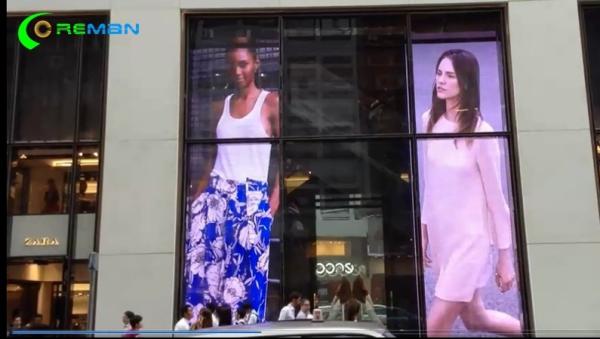

1.Glass wall transparency led display:

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

2.LED mesh curtain transparency led display:

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light

P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light
P12 Transparent LED Display , Window Stage Transparent Video Screen Ultra Light
