Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material
Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material
Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material
Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material
Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material
Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material
Specifications
Brand Name :
coreman
Model Number :
P10
Certification :
CE,ROHS FCC, UL, ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable，large qty ,better price
Payment Terms :
D/P, T/T, Western Union, MoneyGram, L/C /Paypal/cash
Supply Ability :
4000sqm per week
Delivery Time :
5-20 working days, up to the screen size
Packaging Details :
cartoon case wooden case , flight case
led size :
3535
chip brand :
nation star
refresh rate :
1920-3840hz
lift span :
100000hrs
weight :
0.5kg
power supply :
meanwell/ E-energy-KL/Lavalee
led type :
SMD
Controller :
Linsn /Nova /HD/TF/Xixun /Sheen color etc
Video processor :
LVP605 LVP100 KS600 mctrl600
module resolution :
16x32dots
cabinet size :
960x960mm
cabinet resolution :
96x96dots
Appllication place :
indoor & outdoor
Description

aluminum front open led cabinet P2.5p3 video wall led dislpay front sevice led display light weight easy to maitain

Feature

1. Easy for assembling and connection with the connector added.

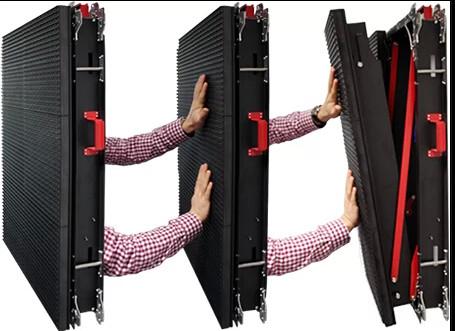

2. Light weight , die-casting aluminum cabinet ,use for rental and fix installation .

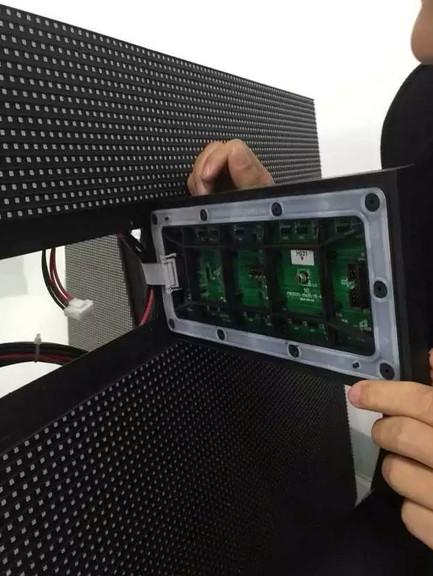

6. Both front and rear access are available.

7. Good LED Chips, with large viewing angle, lower power consumption and good color uniformity.

8. Easy for maintenance.

9. Good quality raw material, accurate technique and careful inspection insures the high quality of led display.

10. Different shape and size can be made according to your requirement.

11. indoor Items:p1.25 p1.33 p1.536 P1.625,P1.8 P1.92P2P3P4P5P6 etc.

12. Widely used for building, shopping mall, cinema, station, stadium, plaza, street etc.

Pixel pitch 2.5 mm 3mm
Module size (mm) 160*160 192x192
Resolution of module(dots) 64*64 64x64
Density of pixel 1600,000 dots/m2 1111111dots/m2
Cabinet size 480x480mm 576x576mm
LED Size SMD2121
Pixel configuration 1R1G1B
Best viewing distance ≥2m
Horizontal viewing angle 140º
Viewing angle 140º
Driving method 1/32 scan
Brightness ≥1500cd/m2
Refresh rate ≥1920Hz(Max 3840Hz)
IP grade IP31
Input voltage AC110V/220V±10%
Storage temperature —40°C~65°C
Working temperature —20°C~55°C
MTBF ≥10,000 hours
Life span ≥100,000hours
Control system Nova/Linsn/Colorlight/DBstar

Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material

Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material


Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material

Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material


Workshop
Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material



Package

  1. Wooden case Economic option for fixed installation
  2. Flight case movable &rental screen use flight case
  3. Carton case module and spare parts use carton case

Large P2.5 P3 Led Video Wall Outside Front Open Easy To Maitain Aluminum Material

Our Services

Pre-sales Service

1. Customer Training

We provide free training of LED system operation and maintenance. Our purpose is to make clients be able to operate LED system and find solutions to some simple technical problems. We can train 2-3 people for our clients.

2. Basic Training

Three days workshop training of some basic skills of LED Screen System.

1) PC Basic Knowledge

2) Windows Operation System

3) LED Displays Working Principle

4) General System Problems

5) System Daily Maintenance & Safety

3. Site Training

Three days on-site training on purpose to get the Clients to know how to operate the LED screen system, how to deal with general problems. And how to install hardware and software.

1) Software Installation

2) LED Screen Daily Maintenance

3) Software Problem Treatment

Post-sales Service

1. Warranty

1) We provide warranty of all components for 2 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.

2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training

1) We provide the technology training for free, which contains the operation training and maintenance

2) Training in the factory.

3) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation

1) We provide full maintenance for a lifetime and charge for the raw materials only.

2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

4. Documents and Certification

1) We provide the operation manual, software, test report and so on.

2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.

5. CAD Drawing and Fixing

1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.

2) We will send our engineers to your place if we are expected after our negotiation.

6. Additional Service

1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.

FAQ

  • Can we make any size of led display?

​
yes, the size is customized,we'll make the size near yours .

  • What's best size of led display?

​
The best aspect ratio of LED display are W16:H9 or W4:H3

  • How to install ?

​
We will provide drawing of steel structure or hanging truss,then you can install led display very easy.

  • How to order ?

​
Please tell me indoor or outdoor do you need,size of led display,where will be application of led display.

  • How to ship?

​
Normally, can be shipped by sea , by air and express .

  • How to pay?

​
You can transfer payment by Bank TT, West union, Paypal or Cash .


More details, pls feel free to contact us !!!
