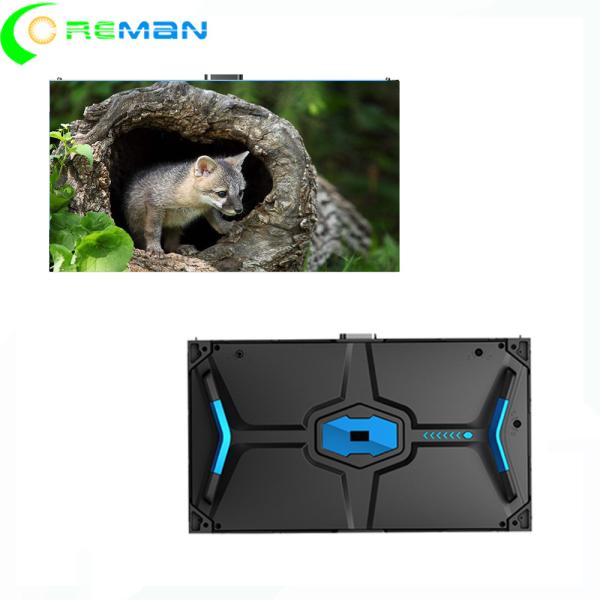

CCTV Center RGB LED Screen On Stage P1.33 P1.3 1920x1080 HDR Processing Internal
CCTV Center RGB LED Screen On Stage P1.33 P1.3 1920x1080 HDR Processing Internal
Specifications
Brand Name :
COREMAN
Model Number :
CM-IS-P1.33-600mm x 337.5mm
Certification :
CE,Rohs, FCC, CCC, UL, CAS，SASO
Place of Origin :
China
MOQ :
1pcs
Price :
1790~1890USD
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
50,000pcs/ month
Delivery Time :
15-20 days
Packaging Details :
flight case
Color :
RGB
Funciton :
Text,picture,animation, video
chip :
Silan,Epistar,opto,Nicha,Cree(optional)
Input :
AC 110/220V+-10%
LED cabinet size :
600mm x 337.5mm
LED chip :
COB SMD1010
Drive IC :
MBI5153,ICN5153 etc
Pixel pitch :
1.33mm
Refresh rate :
>3840Hz
Contrast rate :
5000:1
Description

HDR processing rgb HD led display P1.33 P1.3 CCTV center 1920x1080 HD led video screen wall

P1.3 P1.33 LED rental display LED HD video wall feature:

1.16 Bit or 24 bit Grey Grade Processing, the color transition will be more natural.
2. Support HDMI DVI VGA input, can plug to customer video source directly.
3. Wide color gamut,Comparison of color gamut standard among unano& Rec.709&NTSC
4. Golden ratio design cabinet.Cabinet size is 16:9 or 4:3 .Video pixel to LED pixel achieve full 2K/4K/8K displaying. No gap between unit is a revolution of visual enjoyment.
5. No wiring UTP cale and power cable, all cable are built-in, it is more safe and looks more beautiful.
6. Slim and lightweight cabinet, it is easy to carry and take.
7.The display are available with single or dual power supplies, with the dual power supply options adding a level of redundancy.
8. Double backup . Supporting Dual Control System one power and control card, Automatically Switch the Picture in any Led Screen when it occurs any problems to make sure a stable and reliable image.
9.Monitors health status of video wall components from a central, local or remote location

What materials we use for the product?
1. Use high quality materials, Nicha Cree Silan Opto etc are optional.
2. Use good quality and stable components , like MBI, Samsung etc
3. Encapsulated LEDs from Nationstar , kinglight, KN-light are optional.
4. Famous power supply, Meanwell, Delta ,megmeet etc power supply for high-end market customer.


What we can do ?
1. Custom or standard design led module or cabinet to meet different customer requirement.
2. Certified product ,CCC, FCC CE -EMC, CE-LVD, Rohs,UL, CAS,SASO, etc for differen country and market.
3. Low price on the shipping ,fast delivery to save as much time as we can for customer.
4. 2-7 warranty according to customer situation and request.


What service we can provide
1. We will answer your inquiry with 24 hours via e-mail/ phone ,working 24 hours / 7 days.
2. We can provide the installation CAD drawing or struction for customer as negotiation.
3. We can send engineer to customer side to install the led display as cutomer request
4. We will provide maintenance for a lifetime and charge for the raw materials only.



Specification:

LED chip SMD1010
LED Module 1.33mm
Pixel Density (dots /m2 ) 557511
Module Resolution(W x H) 224 x 126
Module Size ( mm ) 300(W) x 168.75(H)
Module Maximum Power Consumption (W) 40
Module of Cabinet (W x H) 2 x 2
Cabinet Resolution (W x H) 448 x 252
Cabinet Size ( mm ) 600(W) x 337.5(H) x 80(D)
Cabinet Area ( m2 ) 0.2025
Cabinet Weight ( kg ) 9.9
Cabinet Flatness ( mm ) ≤0.2
Maintain Style Pre maintenance
Cabinet Flatness(mm) ≤0.1mm
Cabinet Material die-cast aluminum
singel pix brightness corretion have
singel pix chroma corretion have
white balance brightness ( nits ) 200～1000 Adjustable
Color Temperature ( K ) 3200～9300 Adjustable
viewing angle (HorizontalVerticla) 160/160
Light Pixel Centerline Spacing Difference <3%
Brightness/Color Uniformity ≥97%
Contrast Ratio 5000:1
Max Power consumption (W/m2) 800
Avg Power Consumption (W/m2) 250
Power supply requirement AC90～264V,frequency 47～63(Hz)
Frame Frequenc y (Hz ) 50&60
Driving Mode Constant current drive, 1/32S
Grey Scale 65536
Refresh Rate ( Hz ) Maximum 3840Hz
Color Processing Level 16bit
Video Effect 2KHD , 4K/8K Ultra Picture
Working Temperature/Humidity ( °C/RH ) -20 ～ 60 / 10% ～ 90%RH (No moisture condensation )
Storage Temperature/Humidity ( °C/RH ) -40 ～ 65 / 10% ～ 95%RH (No moisture condensation )
Certificate Standard FCC , CCC , TUV-CE


Other product available

Indoor led display
Pixel pitch Module Resolution(dots) Module Size Cabinet Resolution(dots) Cabinet size
P0.9375 160 x 180 150mm x 168.75mm 640 x 360 600mm x 337.5mm
P1.25 160 x 135 200mm x 168.75mm 480 x 270 600mm x 337.5mm
P1.33 224 x 126 300mm x 168.75mm 448 x 252 600mm x 337.5mm
P1.5625 128 x 96 /128 x 108 200mm x 150mm / 200mm x 168.75mm 256 x 192 / 384 x 216

400mm x 300mm /

600mm x 337.5mm
P1.667 120 x 90 200mm x 150mm 240 x 180 400mm x 300mm
P1.875 64 x 64 / 160 x 90 120mm x 120mm / 300mm ×168.75mm 256 x 256 / 320 x 180 480mm x 480mm / 600mm x 337.5mm
P1.923 104 x 78 200mm x 150mm 208 x 156 400mm x 300mm
P2 64 x 64 128mm x 128mm 256 x 256 512mm x 512mm
P2.5 64 x 64 160mm x 160mm 192 x 192/256 x 256 480mm x 480mm /640mm x 640mm
P3 64 x 64 192mm x 192mm 192 x 192 576mm x 576mm
P4 64 x 32 256mm x 128mm 128 x 128 512mm x 512mm
P5 64 x 32 320mm x 160mm 128 x 128 / 192 x 192 640mm x 640mm / 960mm x 960mm
P6 32 x 32 192mm x 192mm 96 x 96 576mm x 576mm
P10 32 x 16 320mm x 160mm 64 x 64 / 96 x 96 640mm x 640mm / 960mm x 960mm
P2.97 84 x 84 250mm x 250mm 168 x 168 / 168 x 336 500mm x 500mm / 500mm x 1000mm
P3.47 72 x 72 250mm x 250mm 174 x 174 / 174 x 348 500mm x 500mm / 500mm x 1000mm
P3.91 64 x 64 250mm x 250mm 128 x 128 / 128 x 256 500mm x 500mm / 500mm x 1000mm
P4.81 52 x 52 250mm x 250mm 104 x 104 /104 x 208 500mm x 500mm / 500mm x 1000mm
Outdoor led display
Pi x el pitch Module Resolution(dots) Module Size Cabinet Resolution
(dots)		 Cabinet size
P3 64 x 64 192mm x 192mm 192 x 192 576mm x 576mm
P3.91 64 x 64 250mm x 250mm 128 x 128 / 128 x 256 500mm x 500mm / 500mm x 1000mm
P4.81 52 x 52 250mm x 250mm 104 x 104 /104 x 208 500mm x 500mm / 500mm x 1000mm
P5.95 42 x 42 250mm x 250mm 84 x 84 / 84 x 168 500mm x 500mm / 500mm x 1000mm
P4 64 x 32 256mm x 128mm 128 x 128 512mm x 512mm
P5 64 x 32 320mm x 160mm 128 x 128 / 192 x 192 640mm x 640mm / 960mm x 960mm
P6 32 x 32 192mm x 192mm 96 x 96 576mm x 576mm
P6.67 48 x 24 320mm x 160mm 96 x 96 / 144 x 144 640mm x 640mm / 960mm x 960mm
P10 32 x 16 320mm x 160mm 64 x 64 / 96 x 96 640mm x 640mm / 960mm x 960mm
P8 32 x 16 256mm x 128mm 64 x 64 512mm x 512mm
P8 40 x 20 320mm x 160mm 80 x 80 640mm x 640mm
P10 32 x 16 320mm x 160mm 64 x 64 / 96 x 96 640mm x 640mm / 960mm x 960mm

CCTV Center RGB LED Screen On Stage P1.33 P1.3 1920x1080 HDR Processing InternalCCTV Center RGB LED Screen On Stage P1.33 P1.3 1920x1080 HDR Processing InternalCCTV Center RGB LED Screen On Stage P1.33 P1.3 1920x1080 HDR Processing InternalCCTV Center RGB LED Screen On Stage P1.33 P1.3 1920x1080 HDR Processing InternalCCTV Center RGB LED Screen On Stage P1.33 P1.3 1920x1080 HDR Processing InternalCCTV Center RGB LED Screen On Stage P1.33 P1.3 1920x1080 HDR Processing Internal

CCTV Center RGB LED Screen On Stage P1.33 P1.3 1920x1080 HDR Processing Internal

CCTV Center RGB LED Screen On Stage P1.33 P1.3 1920x1080 HDR Processing Internal

Connection diagram

(Video processor is not must, it depends on the size of the display)



CCTV Center RGB LED Screen On Stage P1.33 P1.3 1920x1080 HDR Processing Internal


Application:

The led screen can be used as the indoor and outdoor stage LED display, dance floor, stadium LED display, sky backdrop curtain, fixing advertising LED display, showcase, Shopping center,stage , concert background, festival celebration , wedding, exhibition, meeting room, CCTV center ,airport , stadium games like football, basketball etc.etc. And it would be more convenient and fast .
