Specifications
Brand Name :
COREMAN
Model Number :
CM-P4-MDE
Certification :
CE,ROHS,SGS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
USD 4-9USD per pcs
Payment Terms :
T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability :
6000sqm per month
Delivery Time :
5-8days
Packaging Details :
carton case,wooden case
Pixels :
4mm
Usage :
Indoor
Display function :
Video
Screen dimension :
Customized,5mx3m
Tube chip color :
Full Color
Module size :
256x128mm
Led chip :
Epistar
Application :
Adervertising,Live Show,Competition/Advertising,Super Mall,rental led display
Cabinet size :
512*5120mm
Description

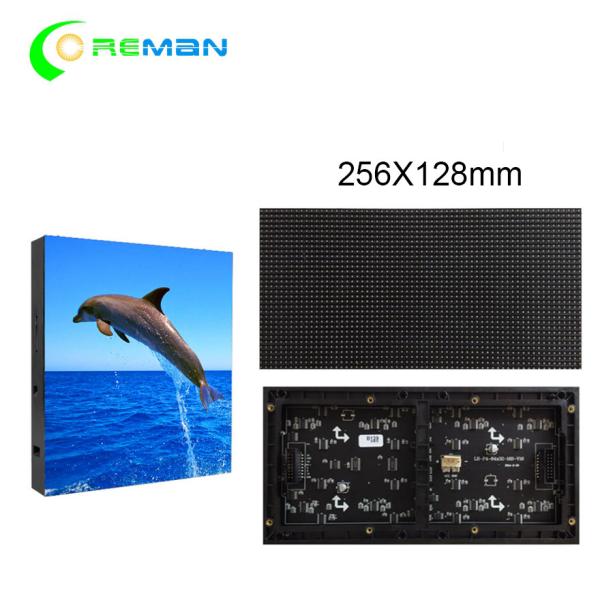

Best Selling P4 Led Module For Video Indoor Display P4 256*128MM 64*32 Led Matrix Panel

P4 indoor led module display features:

1. Strong visual impact

The large-sized, dynamic, and audio-visual integrated LED advertising can motivate the audience's senses in an all-round way, effectively convey information and guide consumption.

2. Wide coverage

Indoor LED displays are generally installed in areas where people are concentrated, such as shopping malls. Through high-frequency communication with user groups, it stimulates consumers' strong desire to buy and improves brand awareness.


3. Long release period

Indoor LED advertising can be played around the clock. It is easier for the audience to see, it can better guide the potential customer crowd, and enable the merchant to achieve better publicity with less cost.

4. Low audience dislike rate

Indoor LED advertising can broadcast programs to more audiences in a real and timely manner through live broadcast technology. Including special topics, columns, variety shows, animations, radio dramas, TV series, etc., the content is rich, avoiding the contact obstacles caused by the conscious and active avoidance of advertising audiences.

5.Energy saving and environmental protection

The light-emitting element of the LED display is LED. Because the power of a single LED is very low, generally 0.04 ~ 0.08W, the power is several times lower, but the effect is much better. The LED display is made of environmentally friendly materials and is recyclable. It will not cause pollution and damage to the environment due to heavy use.

6. Posting information is simple and convenient

Connect to a computer through a data cable connection or wireless communication, and set up in the computer to publish advertising content, conveniently and quickly.

P4 indoor led module matrix panel specification:

Pixel Pitch 4mm
module size 256X128mm
Pixel Configuration 1R1GB(LED SMD 2121)

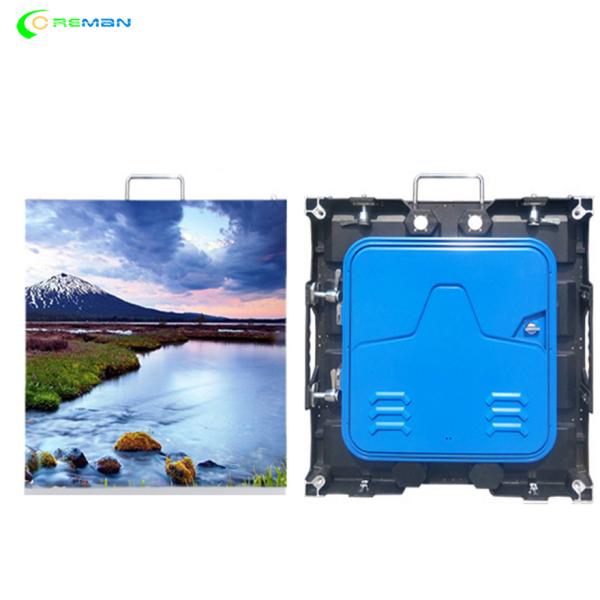

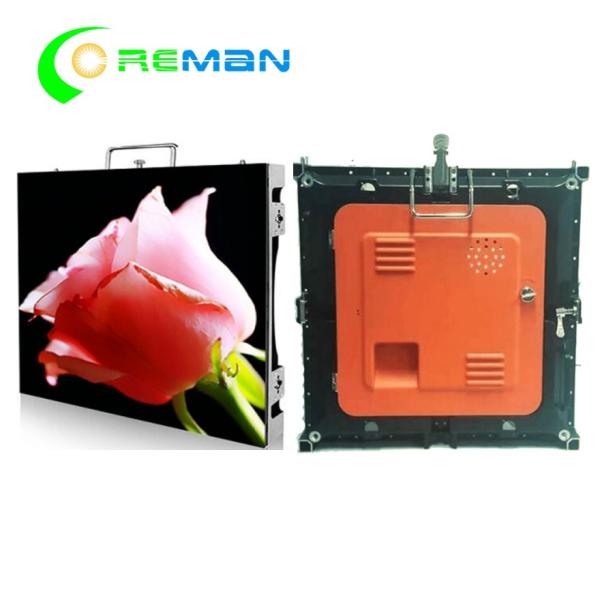

Size of LED Cabinet 512X512mm
Cabinet Resolution 128X128dots
Cabinet thickness 60mm
Cabinet Weight 9.5kg
Max Power Consumption 1500w/m2
Average Power Consumption 750w/m2
Earth Leakge Current <3mA
Drive Type 1/16 Scan Constant Current
Brightness ≥2500cd/ m2
Color Temperature 6500-9500K
Best Viewing Distance 4m-30m
Cray Scale 12bit
Color Scale 36bit
Refresh Rate ≥1000Hz
Best Viewing Angle Horizontal 120°,Vertical 120°
Color Conformity <4°
Control Mode Synchronous control by computer
Conmmunication Distance Cat5 network cable transmission:100meters;Multimode Optical
Malfunction Dot Rate <1/10000
Average No Failure Time >10000H
Life-Span >10000H
Working Voltage AC220V/50HZ,AC110V/60HZ optional
Working Temperature -20°C- +60°C
Working Humidity 10%-90%
Input Signal RF, S-Video, VGA, DVI, RGBHV, Composite, TV,HDMI, SDI, HDSDI etc.

Epistar Full Color P4 1500W/M2 64x32 Led Matrix Panel
