Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm
Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm
Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm
Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm
Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm
Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm
Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm
Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm
Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm
Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm
Specifications
Brand Name :
COREMAN
Model Number :
CM-P3.91-RST
Certification :
CE,ROHS,SGS,UL
Place of Origin :
China
MOQ :
1
Price :
USD 100-300 per pcs
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
6000sqm one month
Delivery Time :
5-8days
Packaging Details :
carton case,wooden case,flight case.
Pixel pitch :
3.91mm P3.91
color :
Full color
Pixels :
3.91mm
Display function :
stage
Cabinet size :
500x500mm 500x1000mm
LED lamp :
Nation star,kinglight
IC :
MBI5124
Material :
die casting aluminium
usage :
outdoor
Description

outdoor open led display wall stage backdrop curve flexible led panel P3.91

led video screen Features:

1.Fast assembling.

2.Light weight slim design cabinet.

3.Haning stand design.

4.good advertising monitor for stage.

P3.91 HD led display panel advantages:

1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect
3. High resolution: The most apparent features of the new generation of LED display
4. Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: 1800-3000 CD/m2, brightness automatically adjusted
6. High Quality: CE, RoHS, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: Over100, 000hours, warranty from 2 to 5 years.
8. You need = We design: Provide Personal- Customized LED offer.

P3.91 led display specification:

LED Lamp
Type SMD1919 LED
Brand Epistar
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 3.91mm
Module Size 250×250mm
Module Resolution 64×64=4096(Dots)
Module Weight 0.55kg
LED Cabinet
Pixel Density 65410 Dots/sqm
Frame Frequency no less than 60 frame/sec
Cabinet Resolution 128×256=32768(Dots)
Input Voltage AC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D) 500×500×95mm
Output Voltage DC-5V, 40A/60A/80A
Module Quanty /Cabinet 2×4=8(Pcs)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R(1024)×G(1024)×B(1024)
Cabinet Weight 10kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
Brightness >5000cd/sqm
MTBF( mean time between failures) 5000 hours
Viewing Angle 140(Horizontal), 140(Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 7m
Protection Level(front/back) IP65
Power Consumption (Max) 1000w/sqm
Malfunction Dot Rate less than 0.0001
Power Consumption (Average) 300 w/sqm
Working Temperature -15oC-50oC
Display Function Text, Graphics, Video
Humidity 15%-85%
Refresh Rate >1800Hz
Drive Mode/Driver Position Constant driving 1/16 Scan, Combined diver board
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software LED Studio ( FWS-linsn )
Communication Type Net cable; 3G, WIFI(Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)

P3.91 rental stage led display FAQ:
1. May I know the Minimum order for your products?
For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.
2. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.

SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
3. How long can I get the cargos?
Our production time is about 10-25 working days.
When we confirmed the order, we can start production after receiving your deposit (40% TT in advance).
we will update the production details in time.
we will notice you before finish and after delivery the goods to you after we get full payment.
About the time from start port to destination, it depends on the distance and the state of the forwarder.
4. May I know the package details?
For fixed installation, we use veneer case, usually 4 cabinets in 1 veneer case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
5. Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor.

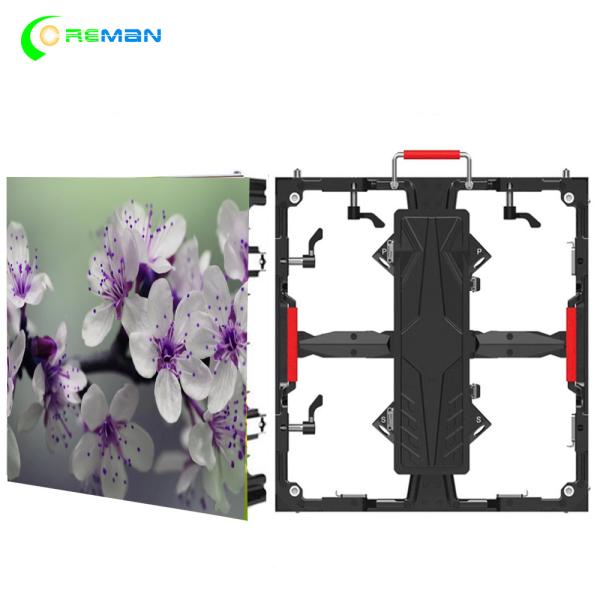

P3.91 led video wall 500x500mm cabinet:

Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqmFlexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqmFlexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm

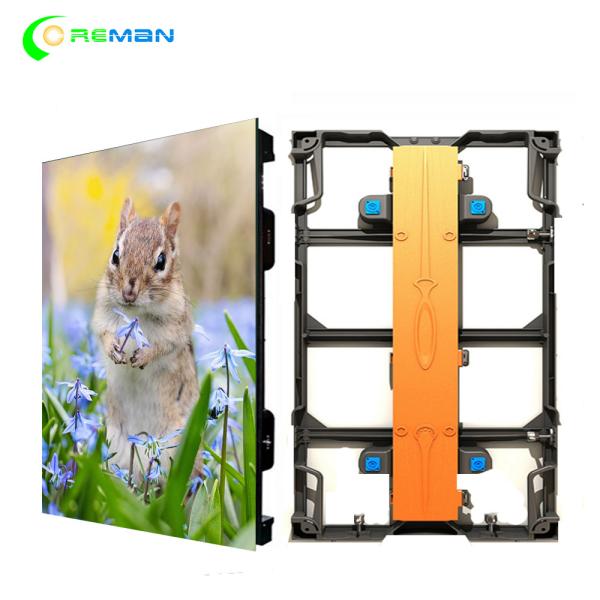

P3.91 led display wall 500X1000mm cabinets:

Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqmFlexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm

Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm

Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm

Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm

Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm

Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm

Flexible IP65 P3.91 Stage Backdrop Led Panel 1000W/sqm
