EN12966 P16 RGB LED VMS Signs High Brightness Outdoor Traffic Screen
EN12966 P16 RGB LED VMS Signs High Brightness Outdoor Traffic Screen
EN12966 P16 RGB LED VMS Signs High Brightness Outdoor Traffic Screen
EN12966 P16 RGB LED VMS Signs High Brightness Outdoor Traffic Screen
Specifications
Brand Name :
YAHAM
Model Number :
YHT-VMS-OT16
Certification :
EN12966、NTCIP
Place of Origin :
Shenzhen, China
MOQ :
18 Square Meter/Square Meters
Price :
$1200-2000 Square Meter/Square Meters
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3585 Square Meter/Square Meters Per Month
Delivery Time :
24 work days
Packaging Details :
WOODEN CASE
Pixels :
16mm
Power Supply :
110-240V AC
Signal transfer :
Cat 5 Network Cable, RS232,RS485 optional
Max. Power consumption :
250W/m²
Store humidity :
15%~ 95%
Brightness :
L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits)
Description

EN12966 P16 RGB LED VMS Signs High Brightness Outdoor Traffic Screen

EN12966 high brightness p16 rgb led large display screen outdoor led vms traffic sign

Designed and manufactured by YAHAM, the cost effective and P10/P16/P20/P25 Road Side Led Digital Billboard Truck Mounted Folding Traffic Message Car LED VMS Display can play any range of text message,graphics and animations in high visibility color. You can design your own symbols, corporate logos and more.The road side traffic message signs are popular for using in traffic management and advertisement.


Application:

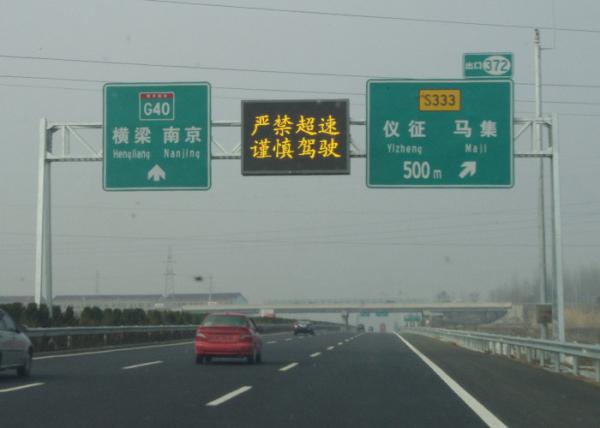

It is widely used in highway tunnel, urban road, dense section of road network of main trunk line, urban road, street, airport, wharf, station and other traffic guidance and related application fields.

the led traffic lens display screen has the characteristics of more uniform light emission, better light mixing effect and more energy saving.


Lens beads using patch technology, quality is more stable, light shape can be customized and other characteristics, mainly used in led variable message signs, Led variable speed limit sign, Etc channel indicator, Led construction guide card and other occasions.

Item YHT-VMS-OT10 YHT-VMS-OT12 YHT-VMS-OT16 YHT-VMS-OT20 YHT-VMS-OT25
Pixel pitch 10mm 12mm 16mm 20mm 25mm
LED type 3 in1 SMD+lens 3 in1 SMD+lens 3 in1 SMD+lens 3 in1 SMD+lens 3 in1 SMD+lens
Pixel density 10000 pixels/m² 6944 pixels/m² 3906 pixels/m² 2500 pixels/m² 1600 pixels/m²
Module dimension 320×160 mm 192×192 mm 256×128 mm 320×160 mm 200×200 mm
Cabinet material 2mm aluminum Alloy
Screen weight 65kg/m²
Cabinet dimension 960×960 mm 960×960 mm 1024×1024 mm 960×960 mm 1000×1000 mm
Brightness L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits)
Brightness adjustment 32/256
Refresh rate >90+ Hz >90+ Hz >90+ Hz >90+ Hz >90+ Hz
Display control Asynchronous control system available
Display capacity Text, image, graphics animations
Lifespan >100000 hrs >100000 hrs >100000 hrs >100000 hrs >100000 hrs
Power supply 12-24V DC/110-230V AC
Max. Power consumption 400W/m² 380W/m² 250W/m² 220W/m² 220W/m²
Operation temperature -25~ +60°C
Storage temperature -40~ +80°C
Store humidity 15%~ 95% 15%~ 95% 15%~ 95% 15%~ 95% 15%~ 95%
Protection level IP56(P3:12966) IP56(P3:12966) IP56(P3:12966) IP56(P3:12966) IP56(P3:12966)
Maintenance method Rear service Rear service Rear service Rear service Rear service
EN12966 compliance compliance compliance compliance compliance

EN12966 P16 RGB LED VMS Signs High Brightness Outdoor Traffic Screen

EN12966 P16 RGB LED VMS Signs High Brightness Outdoor Traffic Screen

EN12966 P16 RGB LED VMS Signs High Brightness Outdoor Traffic Screen
