Pure White 36W Linear LED Wall Washer Exterior Led Wall Wash Lights
Pure White 36W Linear LED Wall Washer Exterior Led Wall Wash Lights
Specifications
Brand Name :
Maysee
Model Number :
MS-WW-RGB-A
Certification :
CE/ROHS
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T or WU or Paypal
Supply Ability :
10000pcs per month
Delivery Time :
10-15 working days upon receipt of the deposit
Packaging Details :
Carton box or wooden case
Material :
Anodized aluminum
Light Color :
RGB/R/G/B/W
LED Type :
Cree
Control Mode :
DMX/on-off
Input Voltage :
AC110-220V/24VDC
IP Rating :
IP65
Rated Power :
36W
Warranty :
3-year
Size :
1000mm(L)x54mm(W)x95mm(H)
N.W. :
3.2kg
Description

Waterproof outdoor LED linear light with RGB color changing fixture

Advantages

1. Specious design for linear light easy installation
2. Private tool with nice appearance design and feasible mechanical assembly
3. With thick enough anodized aluminum housing to go for better heat-dissipation
4. High-power led suitable for outdoor night visual effect

5. 3-year warranty

Features

1.MEANWELL power driver to make sure the stable quality
2. Anodized aluminum housing & Cree leds

3. With110V/220VAC high-power input
4. Up to 50,000hrs long life-span

5. Easy for cable connection and installation layout

6. Both RGB & mono-color are available
7. IP65

Specification

Model No.: MS-WW-RGB-A(36W)
Electric
Parameter		 Power 36W
LED Drive Current 350mA
Input Voltage AC110-220/DC24V
Power Efficiency >90%
Environment
Parameter		 Humidity 0～85%RH
Storage Temp. -40℃～+80℃
Operating Temp. -25℃～ +50℃(-13°F ～ +122°F)
Physical Parameter Dimension 1000mmx54mm(W)x95mm(H)
Weight 3.2kg
Material aluminum & tempered glass
Housing Color silver
IP Grade IP65
Optical
Parameter		 LED Brand CREE
LED Unit Power 1W
LED Quantity 36pcs
Light Source 12R12G12B/36R/36G/36B/36W/36Y
Lens Angle 10°/15°/25°/ 45°/ 15°x50°
White Color Temperature Warm White(2700～3500K);
Pure White(3500～5500K);
Cool White(>5500K)
LED Wave Length Red: 620 - 630nm;
Green:520 - 525nm;
Blue:465 - 470nm;
Amber:590 - 595nm
Life Time 50,000hrs
Controller DMX512 / On-Off

Application

1. Architectural lighting

2. Downlighting or uplighting for wall wash
3. Landscape lighting
4. Road and bridge lighting
5. Museum and gallery lighting

Typical system diagram

Pure White 36W Linear LED Wall Washer Exterior Led Wall Wash Lights

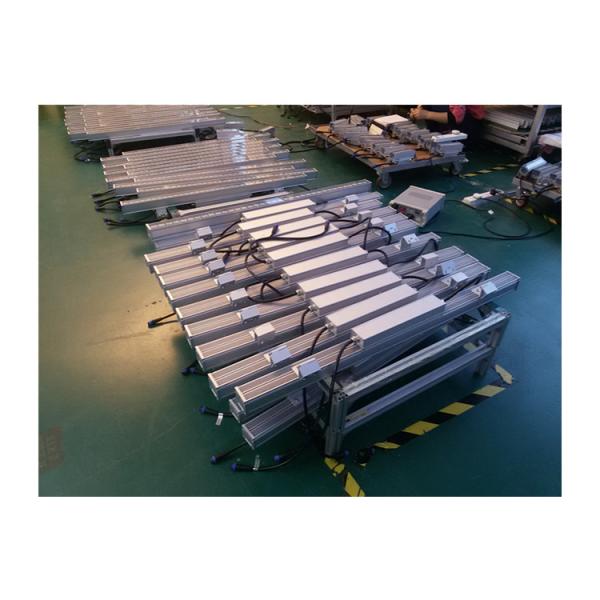

Pictures

Pure White 36W Linear LED Wall Washer Exterior Led Wall Wash Lights

Pure White 36W Linear LED Wall Washer Exterior Led Wall Wash Lights
