Energy Saving SMD 12W Linear LED Wall Washer With Stainless Steel 316 Housing
Energy Saving SMD 12W Linear LED Wall Washer With Stainless Steel 316 Housing
Specifications
Brand Name :
Maysee
Model Number :
MS-WW-RGB-L5
Certification :
CE/ROHS
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
negotiable for better price
Payment Terms :
T/T or Western Union or Paypal
Supply Ability :
20000 pcs
Delivery Time :
10-15 days upon receipt of the deposit
Packaging Details :
standard carton box for export
Model No. :
MS-WW-RGB-L5
Material :
Stainless steel 316
LED Type :
Nichia/Cree/Epistar
Lens-angle :
120°
Input Voltage :
24VDC
Rated Power :
12W
Dimension :
1000mm(L)x20mm(W)x40mm(H)
Light Source :
RGB/R/G/B/W
Control Mode :
DMX/on-off
Description

Stainless steel 316 housing LED linear light for outdoor application

Competitive Advantages

1) Using ultra-bright highest level Cree/Nicha/Epistar LED chips with proprietary encapsulation technology, realizing excellent luminance, low brightness decline;

2) Constant-current driver is used to ensure the lamp working with reliability and stability.

3) Scientifically-designed heat dissipater with much better cooling effect;

4) Great energy-saving effect, save energy by over 70% comparing with traditional lamps;

5) corrosion-resistant, artistic appearance.

6) Long lighting distance and wide lighting areas

Application

1.Tunnel,Subway,Underground

2. Gymnasium,Sports Stadium Lighting

3. Building, Billboard Lighting

4. Garage Lighting,Gas Station led linear light

5. Factory Lighting,Workshop

6. Signboard, building,square decoration and lighting

7. Highway Lighting,Station,Dock Lighting

Service

1. 3years warranty since the shipment date

2. 24hrs online-service for inquiry and technical consultation

3. During the warranty, if the lights are broken caused by the bad quality, Maysee will take responsibility

on repair or providing one-to-one replacement.

4. Competitive price and logistic service to keep the timely shipment.

5. Maysee focuses on developing and manufacturing the customized underwater lights as per the special requirements from customers, which we called it OEM & ODM.

6. Maysee will offer with discount as per different order quantity. In order to well support customers,

Maysee is okay to accept the sample order less than10pcs with the best price.

Specification

Model No. MS-WW-RGB-L5
Rated Power 12W
Dimension 1000mm(L)x20mm(W)x40mm(H)
Net Weight 2kg
Q'ty of LEDs 48pcs
Pixels per Bar 8 pixels
DMX Channel per Bar 8x3-CH
Cable outlet one in,one out
CRI Ra>80
Input Voltage 24VDC
LED Brand Nichia/CREE/EPISTAR
Lens 120°
Light Color SMD (3-in-1) or mono-color
Material Stainless steel 316
Typical Light Efficiency >100lm/W(6500K),>55lm/W(RGB)
Operating Humidity 0-99%RH
Operation Temperature -25℃-45℃
Life Time 50,000 hrs
IP Rating IP66
Control Mode DMX512 for RGB version/on-off switch for mono version
Mounting surface-mounting
Body color Orignal stainless steel

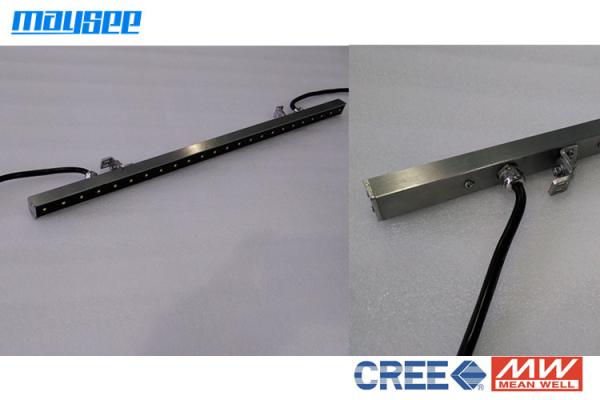

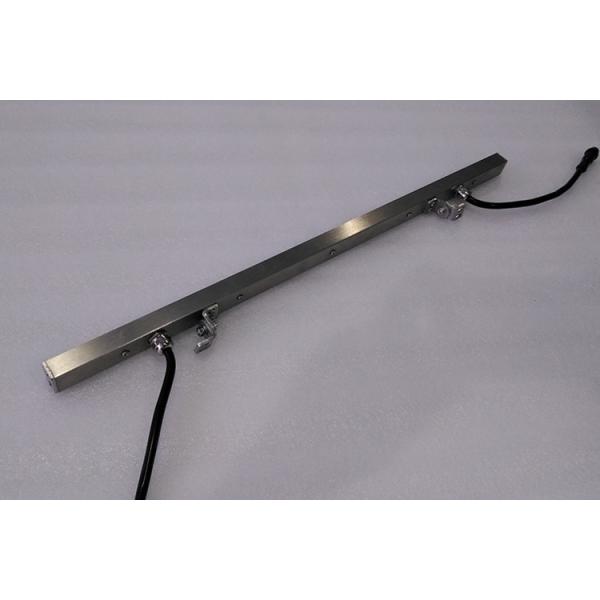

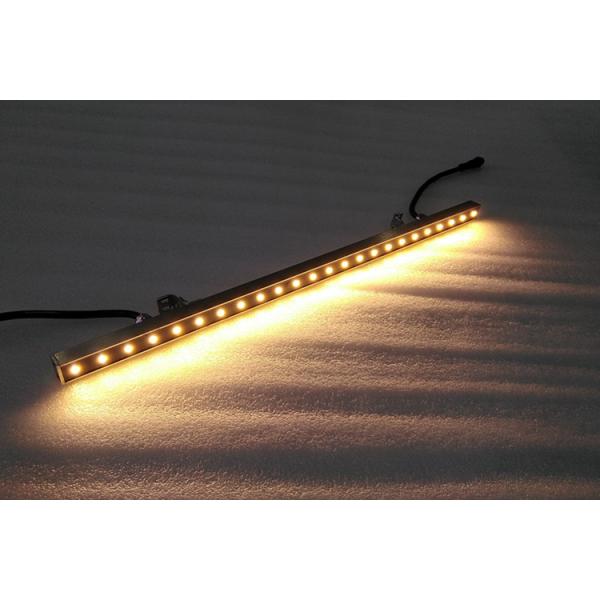

Product pics

Energy Saving SMD 12W Linear LED Wall Washer With Stainless Steel 316 Housing

Energy Saving SMD 12W Linear LED Wall Washer With Stainless Steel 316 Housing

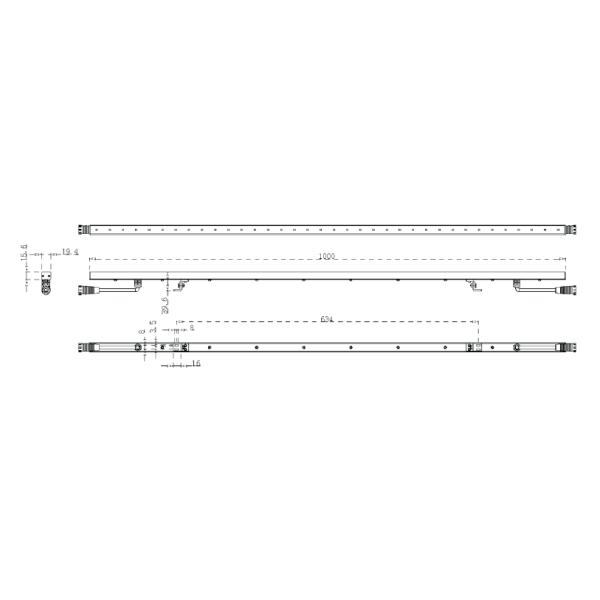

Dimension

Energy Saving SMD 12W Linear LED Wall Washer With Stainless Steel 316 Housing

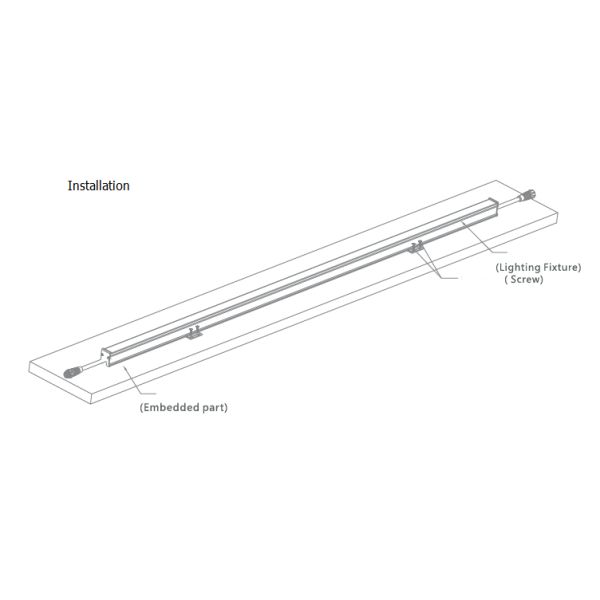

Installation

Energy Saving SMD 12W Linear LED Wall Washer With Stainless Steel 316 Housing

Energy Saving SMD 12W Linear LED Wall Washer With Stainless Steel 316 Housing

Energy Saving SMD 12W Linear LED Wall Washer With Stainless Steel 316 Housing
