8 Pixel 12W 24VDC Led Wall Wash Recessed Lighting With Aluminum Anodized
8 Pixel 12W 24VDC Led Wall Wash Recessed Lighting With Aluminum Anodized
Specifications
Brand Name :
Maysee
Model Number :
MS-WW-RGB-L4
Certification :
CE/ROHS
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
negotiable for better price
Payment Terms :
T/T or Western Union or Paypal
Supply Ability :
20000 pcs
Delivery Time :
10-15 days upon receipt of the deposit
Packaging Details :
standard carton box for export
Model No. :
MS-WW-RGB-L4
Material :
Aluminum
LED Type :
Nichia/Cree/Epistar
Lens-angle :
15°/25°/30°/45°/60°/80°/100°120°
Input Voltage :
24VDC
Rated Power :
12W
Dimension :
1000mm(L)x36mm(W)x61mm(H)
Light Source :
RGB/R/G/B/W
Control Mode :
DMX/on-off
Description

24VDC input LED wall washer light with frosted diffuse tempered glass outdoor LED lighting

Advantages

1.Aluminum anodized, good for heat out, and effectively reduce light decay in working

2.Transparent tempered glass enclosure with transparent epoxy seal

3. silicone rubber sealing

4.Equipped with a special bracket, easy and convenient installation

5.Built-in constant current driver which greatly ensures LED's lifespan

6.It can be made into monochrome or colorful,internal control or DMX512 to achieve endless lighting changing effects.

Features

1. Fully sealed for use in dry, damp or wet locations
2. 48 x 3-in-1 RGB or Monochromatic LEDs per 1000mm
3. High lumiuance fixture
5. 50000hous life time
6. Architectural grade anodized mounting profile, no visible fasteners

Application

Outdoor and indoor facade lighting

Specification

Model No. MS-WW-RGB-L4
Rated Power 12W
Dimension 1000mm(L)x36mm(W)x61mm(H)
Net Weight 1.5kg
Q'ty of LEDs 48pcs
Pixels per Bar 8 pixels
DMX Channel per Bar 8x3-CH
Cable outlet one in,one out
CRI Ra>80
Input Voltage 24VDC
LED Brand Nichia/CREE/EPISTAR
Lens 15°/25°/30°/45°/60°/80°/100°120°
Light Color SMD (3-in-1) or mono-color
Material L6063Aviation Aluminum/Frosted tempered glass
Typical Light Efficiency >100lm/W(6500K),>55lm/W(RGB)
Operating Humidity 0-99%RH
Operation Temperature -25℃-45℃
Life Time 50,000 hrs
IP Rating IP66
Control Mode DMX512 for RGB version/on-off switch for mono version
Mounting surface-mounting
Body color Grey

Pictures

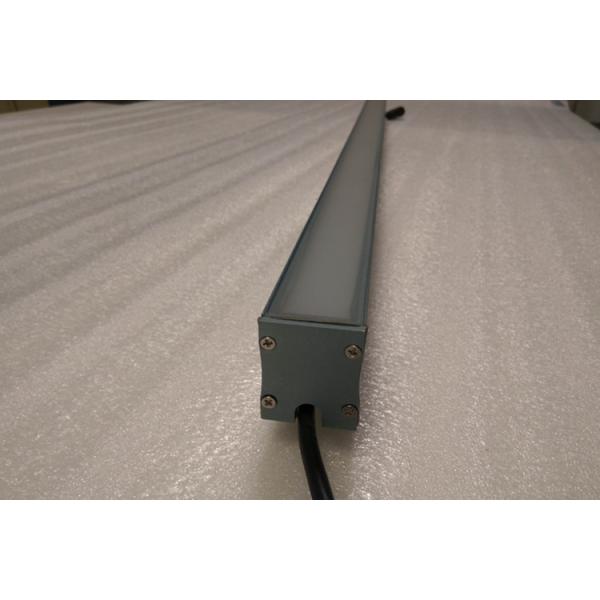

8 Pixel 12W 24VDC Led Wall Wash Recessed Lighting With Aluminum Anodized

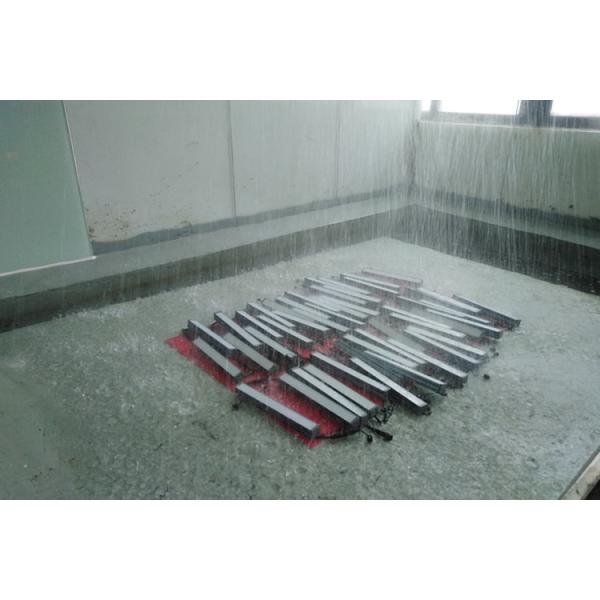

8 Pixel 12W 24VDC Led Wall Wash Recessed Lighting With Aluminum Anodized

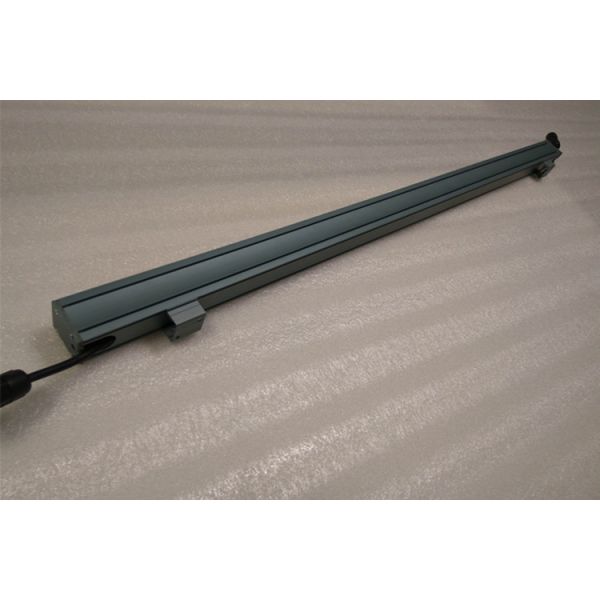

8 Pixel 12W 24VDC Led Wall Wash Recessed Lighting With Aluminum Anodized
