Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67
Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67
Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67
Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67
Specifications
Brand Name :
Maysee
Model Number :
MS-WW-RGB-L6
Certification :
CE/ROHS
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
negotiable for better price
Payment Terms :
T/T or Western Union or Paypal
Supply Ability :
20000 pcs
Delivery Time :
10-15 days upon receipt of the deposit
Packaging Details :
standard carton box for export
Model No. :
MS-WW-RGB-L6
Material :
Aluminum
LED Type :
CREE
Lens-angle :
120°
Input Voltage :
24VDC
Rated Power :
12W
Dimension :
1000mm(L)x25mm(W)x46mm(H)
Light Source :
RGB/R/G/B/W
Control Mode :
DMX/on-off
Description

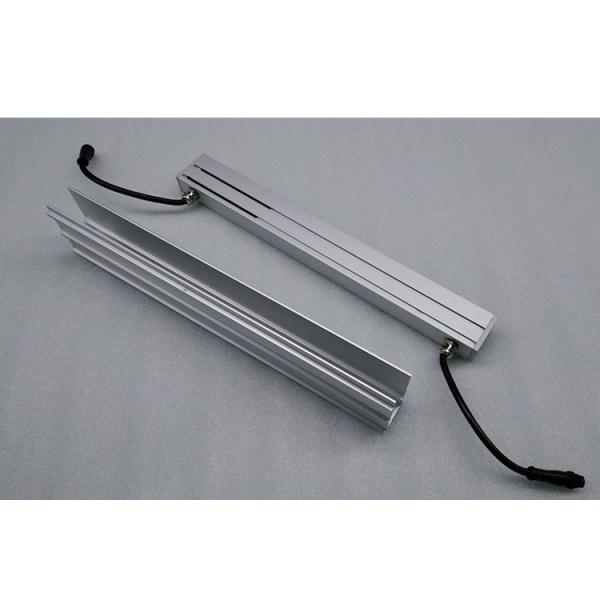

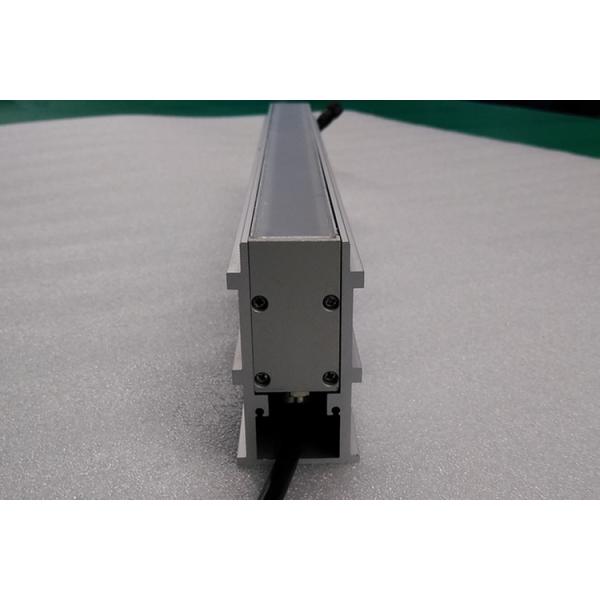

Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67

Features

1. Specious design for outdoor inground led linear wall washer light

2 Modules + Aluminum Mounting Profile
3. Fully sealed for use in dry, damp or wet locations
4. 96 x 3-in-1 RGB or Monochromatic LEDs per 1000mm
5. Architectural grade anodized mounting profile, no visible fasteners
6. Frame per second: >100 FPS at DMX512 control
7. Dimmable range: 0~255 steps at DMX512 dimming control
8. Built-in constanct-current circuit with PWM signal>400Hz
9. IP67

Dimension of light

Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67

Dimensiion of mounting profile

Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67

Specification

Model No. MS-WW-RGB-L6
Rated Power 12W
Length 1000mm
Net Weight 3.2kg(Including mounting profile)
Q'ty of LEDs 96pcs
Pixels per Bar 8 pixels
DMX Channel per Bar 8x3-CH
Pixel Pitch 12.5mm
WidthxDepth 25mmx46mm
Input Voltage 24-48VDC
LED Brand CREE
Lens 120
Light Color SMD (3-in-1) or mono-color
Material anodized aluminum housing & Acrylic diffuser
Bar Intensity 120Lm/W (White 6500k)
Operating Humidity 0-99%RH
Operation Temperature -20℃-50℃
Life Time 50,000 hrs
IP Rating IP67
Control Mode DMX512 for RGB version/on-off switch for mono version
Mounting surface-mounting
Warranty 3-year

Installation and connection

Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67

Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67

Inground LED Linear Light With Aluminum Mounting Profile outdoor waterproof IP67

Application:


Outdoor inground led linear bar wall washer,

About Us

Maysee's LED Wall Washer Light adopts compact & elegant appearance design. Made of extruded anodized aluminum to meet the demand of sufficient heat dissipation and anti-corrosion. To keep the high reliability & long life-span, CREE LEDs are mostly preferred and applied for RGB mixed or mono-color illumination. Especially, the perfect silicon rubber sealing technology has successfully won the good reputation and established the mutual-trust between Maysee and customers.
Maysee is also devoted to developing creative and featured LED Wall Washer besides the popular standard series which is called the customized LED Wall Washer and is designed as per customers' special concerns and requirement.
For the customized lights, Maysee is always insisting on protecting the customer's rights and benefit , we would like to sign up the Non-Disclosure Agreement before project negotiation.
