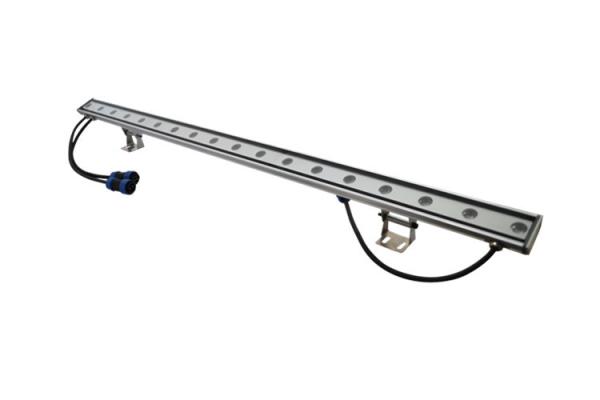

Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting
Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting
Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting
Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting
Specifications
Brand Name :
Maysee
Model Number :
MS-WW-RGB-B
Certification :
CE/ROHS
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T or WU or Paypal
Supply Ability :
10000pcs per month
Delivery Time :
10-15 working days upon receipt of the deposit
Packaging Details :
Carton box or wooden case
Material :
Anodized aluminum
Light Color :
RGB/R/G/B/W
LED Type :
Cree
Control Mode :
DMX/on-off
Input Voltage :
24VDC
IP Rating :
IP65
Rated Power :
36W
Warranty :
3-year
Size :
1000mm(L)x53mm(W)x87mm(H)
N.W. :
1.9kg
Description

Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting

Features

1.Product name:led wall washer

2.Input voltage,AC85-265V,DC12V,24V led driver is also available

3.Protection grade is IP 65

4.PMAM lens,15°30°45°60° for your choice

5.Ligt body is made of aluminum and tempered glass

6.Optioanl power can be 9w/12w/15w/18w/24w/36w/48w

Advantages


1. Private tool with nice appearance design and high-precision assembly
2. Light-weight for lower labor-cost and transportation cost
3. High brightness upon virious beam-angle

4. 3-year warranty

Specification

Model No.: MS-WW-RGB-B(36W)
Electric
Parameter		 Max.Power 36W
LED Drive Current 350mA
Input Voltage DC24V
Power Efficiency >90%
Environment
Parameter		 Humidity 0～85%RH
Storage Temp. -40℃～+80℃
Operating Temp. -25℃～ +50℃(-13°F ～ +122°F)
Physical Parameter Dimension 1000mmx53mm(W)x87mm(H)
Weight 1.9kg
Material aluminum & tempered glass
Housing Color silver
IP Grade IP65
Optical
Parameter		 LED Brand CREE
LED Unit Power 1W
LED Quantity 36pcs
Light Source 12R12G12B/36R/36G/36B/36W/36Y
Lens Angle 10°/15°/25°/ 45°/ 15°x50°
White Color Temperature Warm White(2700～3500K);
Pure White(3500～5500K);
Cool White(>5500K)
LED Wave Length Red: 620 - 630nm;
Green:520 - 525nm;
Blue:465 - 470nm;
Amber:590 - 595nm
Life Time 50,000hrs
Controller

DMX512 / On-Off

Application

1. Architectural lighting

2. Downlighting or uplighting for wall wash
3. Landscape lighting
4. Road and bridge lighting
5. Museum and gallery lighting

Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting

Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting

Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting
