Digital Micro Vickers Hardness Tester Automatic Measuring Process
Digital Micro Vickers Hardness Tester Automatic Measuring Process
Specifications
Brand Name :
LEEB
Model Number :
LHV-1000DZ
Certification :
CE, FCC, ISO, EAC
Place of Origin :
China
MOQ :
1 Set
Price :
Based on quantity
Payment Terms :
T/T, PAYPAL, Western Union, L/C
Supply Ability :
400 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Plywood Box
Product name :
Automatic Turret Micro Vickers Hardness Tester
Test force :
10gf -1000gf
Measurement range :
8~2900HV
Conversion Scale :
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Display :
LCD
Standards :
ISO, ASTM and JJS
Description

Digital Micro Vickers Hardness Tester Automatic Measuring Process

Digital Micro Vickers Hardness Tester LHV-1000D / LHV-1000DZ

Functions & Features

● Automatic measuring process, easy operation.
● With digital LCD display, the hardness scale HV or HK can be selected.
● High-definition optical system, the brightness of light source can be adjusted in 20 levels.
● Corner length D1 and D2 can be read directly by the system.
● Measurement results can be output by the printer.
● Automatic turret function: The objective and Indenter can automatically switch. (LHV-1000DZ)
● Meet or exceed ISO, ASTM and JJS standards.

Application

● Surface coating, steel, non-ferrous metals, ceramics, alloys, etc.
● Heat treatment, carbonization, quenched hardened layer, nitrided layer
● Small and thin parts

Technical Parameters

Model LHV-1000D / LHV-1000DZ
Test force 10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1000gf (9.8N)
Min measuring unit 0.03125μm
Data output Digital LCD screen display
Max Height of Specimen 100mm
Distance of Indenter to outer wall 120mm
X-Y Testing table Dimension: 100*100mm Max mobile:25*25mm
Conversion Scale HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Measuring Range 8~2900HV
method of testing force applied Automatic(Loading, Dwell, Unloading)
Test microscope magnification 400X(Measuring),100X(observation)
Duration time 5~60s (Adjustable)
Power supply AC220V+5%,50-60Hz
Overall Dimension 405*290*480mm
Net weight About 35Kg

Standard Accessories

Item Quantity Item Quantity
Objective 10x, 40x 2 Testing table 3
Eyepiece 10x 1 12V20W light bulb 1
HV Indenter 1 Power cable & 2A fuse 2
Weight 6 Paper for thermal printer 1
Rod of Weight 1 Screwdriver & Level vial 2
Hardness Block ( HV1, HV0.2) 2 Manual & Certificate 2
XY Coordinate table 1

LCD digital screen

Digital Micro Vickers Hardness Tester Automatic Measuring Process

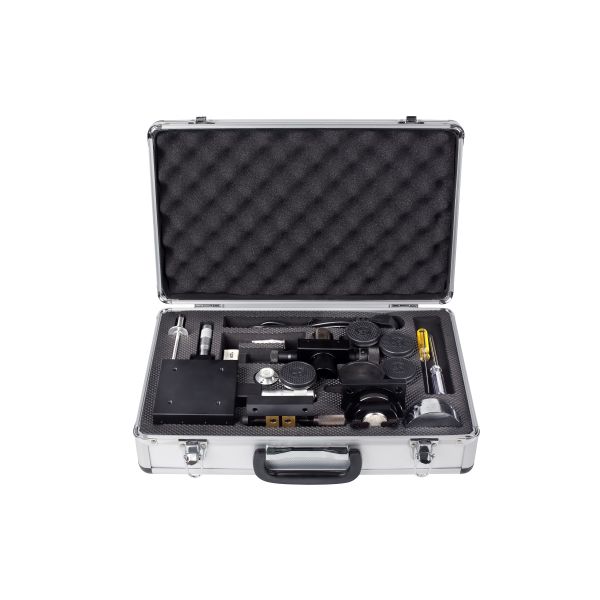

Accessories Box

Digital Micro Vickers Hardness Tester Automatic Measuring ProcessDigital Micro Vickers Hardness Tester Automatic Measuring ProcessDigital Micro Vickers Hardness Tester Automatic Measuring ProcessDigital Micro Vickers Hardness Tester Automatic Measuring ProcessDigital Micro Vickers Hardness Tester Automatic Measuring ProcessDigital Micro Vickers Hardness Tester Automatic Measuring ProcessDigital Micro Vickers Hardness Tester Automatic Measuring Process
