2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen
2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen
Specifications
Brand Name :
LEEB
Model Number :
LHVS-1000Z
Certification :
CE, FCC, ISO, EAC
Place of Origin :
China
MOQ :
1 Set
Price :
Based on quantity
Payment Terms :
T/T, PAYPAL, Western Union, L/C
Supply Ability :
400 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Plywood Box
Product name :
Automatic Turret Micro Vickers Durometer
Display :
4-inch large LCD screen
Measuring range :
8-2900HV
Min measuring unit :
0.03125μm
Test force :
10gf -1000gf
Loading :
Automatic（Loading, Dwell, Unloading）
Description

2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen

Digital Micro Vickers Hardness Tester LHVS-1000/LHVS-1000Z

Functions & Features

● With 4-inch large LCD screen, menu structure.
● Automatic measuring process, easy operation.
● High-definition optical system, the brightness of light source can be adjusted in 20 levels.
● With hardness value conversion function, tolerance judgment by hardness upper and lower limit.
● Corner length D1 and D2 can be read directly by the system.
● Measurement results can be output by the printer.
● Automatic turret function: The objective and Indenter can automatically switch. (LHVS-1000Z)
● Meet or exceed ISO, ASTM and JJS standards.

Application

● Surface coating, steel, non-ferrous metals, ceramics, alloys, etc.
● Heat treatment, carbonization, quenched hardened layer, nitrided layer
● Small and thin parts

Technical Parameters

Model LHVS-1000 / LHVS-1000Z
Test force 10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1000gf (9.8N)
Min measuring unit 0.03125μm
Data output Digital LCD screen display
Max Height of Specimen 100mm
Distance of Indenter to outer wall 120mm
X-Y Testing table Dimension: 100*100mm Max mobile:25*25mm
Conversion Scale HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Measuring Range 8~2900HV
method of testing force applied Automatic(Loading, Dwell, Unloading)
Test microscope magnification 400X(Measuring),100X(observation)
Duration time 5~60s (Adjustable)
Power supply AC220V+5%,50-60Hz
Overall Dimension 405*290*480mm
Net weight About 35Kg

Standard Accessories

Item Quantity Item Quantity
Objective 10x, 40x 2 Testing table 3
Eyepiece 10x 1 12V20W light bulb 1
HV Indenter 1 Power cable & 2A fuse 2
Weight 6 Paper for thermal printer 1
Rod of Weight 1 Screwdriver & Level vial 2
Hardness Block ( HV1, HV0.2) 2 Manual & Certificate 2
XY Coordinate table 1

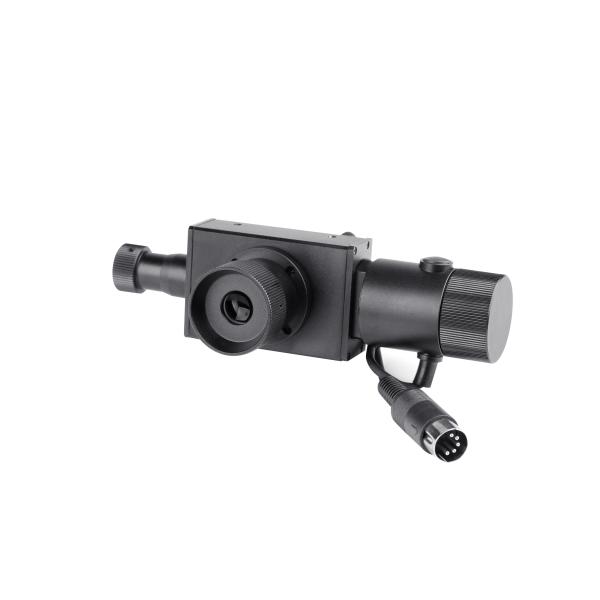

Pictures of Accessories

2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen

2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen

2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen

2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen

2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen2900HV 1000gf Micro Vickers Hardness Tester 4 Inch Large LCD Screen
