Steel Aerospace Ultrasonic Flaw Detector Ultrasonic Flaw Detection Equipment
Steel Aerospace Ultrasonic Flaw Detector Ultrasonic Flaw Detection Equipment
Specifications
Brand Name :
LEEB
Model Number :
Leeb510
Certification :
CE, FCC, EAC, ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Based on quantity
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
7 work days
Packaging Details :
Equipment box
Product Name :
Ultrasonic Flaw Detector
Frequency :
0.5~15MHz
Measuring Range :
0~6000mm
Testing Sensitivity :
≥ 62db
Velocity Range :
(1000 ~ 15000) M / S
Storage :
500
Description

Steel Aerospace Ultrasonic Flaw Detector Ultrasonic Flaw Detection Equipment

Auto-Gain And Peak Memory Ultrasonic Flaw Detector With PC Connection

Functions & Features:

● Probe automatic calibration
● DAC and AVG are automatically formed, and can be corrected and compensated
● Freely switch to four kinds of standards (depth D, level P, distance S, amplitude H)
● Functions such as Auto-gain and peak memory improve detection efficiency
● Automatically calculate the φ value equivalent defects
● 13 built-in testing standards are available
● Power supply: rechargeable Li-ion battery, standby time more than 15hours
● The width and intensity of launch pulse are adjustable
● PC software is available for data analysis, management and reports printing.


Application:
Application for quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the
work-piece. It Widely used in electric power, petrochemical, boiler and pressure vessel, steel, military, aerospace,

railway transportation, machinery, and other fields.

Technical Parameters:

Model Leeb510
Operating Frequency 0.5MHz～15MHz
Scanning Range 0-6000mm
Vertical linearity error ≤3%
Horizontal linearity error ≤0.2%
Dynamic Range ≥32dB
Velocity Range 1000～15000(m/s)
Testing Sensitivity ≥62dB (Depth 200mm, Φ2 flat bottom hole)
Gain Range 0~110dB
Standard Probes

Straight probe: 2.5MHz, diameter 20mm, cable Q9-Q9

Angle probe: 4MHz, 60 degree, 8*9 mm, cable Q9-C5
Measuring channel 50
storage 500
PC connection available
Overall dimension 240×160×40mm
Weight 1.2kg
Standard Delivery Main Unit,Straight probe,Angle probe,Power adapter,BNC cables,PC software, Manual,Certificate, Warranty card
Optional Accessories Optional probes, Cables, Calibration blocks, Coupling agent

Standard Configuration:

Name Quantity Name Quantity
Main unit 1 PC software 1
Straight probe 1 Warranty card 1
Angle probe 1 Manual 1
Power adapter 1 Certificate 1
BNC cables 2

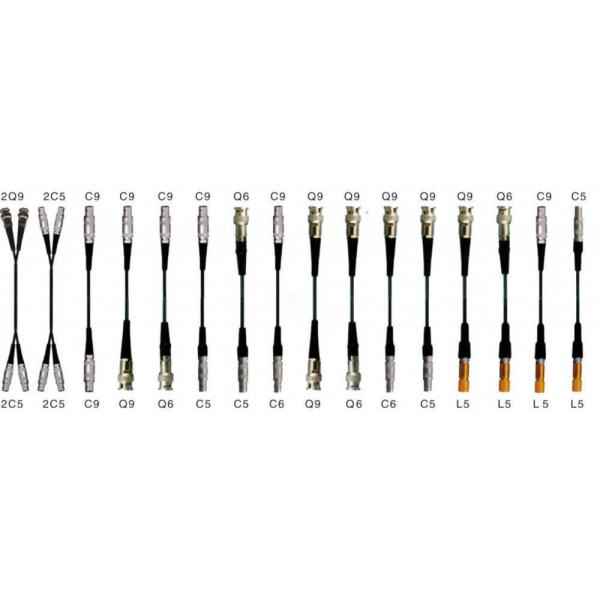

Accessaries Picture:

Steel Aerospace Ultrasonic Flaw Detector Ultrasonic Flaw Detection Equipment

Steel Aerospace Ultrasonic Flaw Detector Ultrasonic Flaw Detection Equipment
