Leeb500 Dust Proof Ultrasonic Flaw Detector For Automobiles Military
Leeb500 Dust Proof Ultrasonic Flaw Detector For Automobiles Military
Specifications
Brand Name :
LEEB
Model Number :
Leeb500
Certification :
CE, FCC, EAC, ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Based on quantity
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
7 work days
Packaging Details :
Equipment box
Product name :
Ultrasonic Flaw Detector
Frequency :
0.5~15MHz
Measuring range :
0~6000mm
Gain :
0-110dB
Material velocity :
(1000 ~ 9999) m / s
Display :
High-brightness color LCD screen
Description

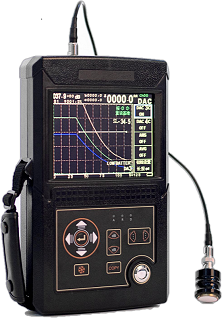

Leeb500 Dust Proof Ultrasonic Flaw Detector For Automobiles Military

Oil-Proof, Water-Proof And Dust-Proof Ultrasonic Flaw Detector With Automatic Calibration Function

Functions & Features:

● Probe automatic calibration

● DAC and AVG are automatically formed, and can be corrected and compensated

● Freely switch to four kinds of standards (depth D, level P, distance S, amplitude H)

● Automatically calculate the φ value equivalent defects

● Storage: 980 pieces of A-scan images and data

● The width and intensity of launch pulse are adjustable;

● With the durable shell ,oil-proof, water-proof and dust-proof;

Application:

For quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece,

such as cracks, welds, blowhole, etc. It Widely used in electric power, petrochemical, boiler and pressure vessel,

steel, military, aerospace, railway transportation, automobiles, machinery, and other fields.

Technical Parameters:

Model Leeb500
Operating Frequency 0.5MHz～15MHz
Scanning Range 0-6000mm
Vertical linearity error ≤4%
Horizontal linearity error ≤0.1%
Dynamic Range ≥32dB
Noise Level ＜8%
Velocity Range 1000～9999(m/s)
Testing Sensitivity ≥60dB (Depth 200mm, Φ2 flat bottom hole)
Gain Range 0~110dB
Standard Probes

Straight probe: 2.5MHz, diameter 20mm, cable Q9-Q9

Angle probe: 4MHz, 60 degree, 8*9 mm, cable Q9-C5
Standby Time ≥ 10 hours of continuous work
Temperature (- 20 ~ 70) ℃
Humidity (20 ~ 95)% RH
Overall dimension 240×160×40mm
Weight 1.2kg
Standard Delivery Main Unit,Straight probe,Angle probe,Power adapter,BNC cables,PC software, Manual,Certificate, Warranty card
Optional Accessories Optional probes, Cables, Calibration blocks, Coupling agent

Pictures:

Leeb500 Dust Proof Ultrasonic Flaw Detector For Automobiles Military Leeb500 Dust Proof Ultrasonic Flaw Detector For Automobiles Military
